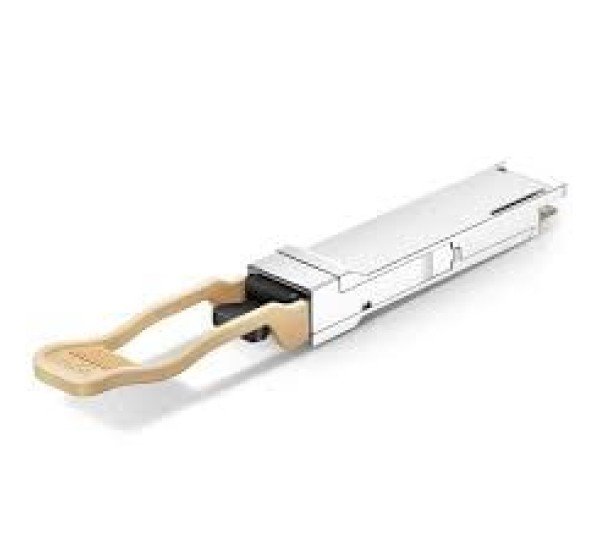

Alcatel-Lucent QSFP-40G-LR Compatible 40Gbps 10KM QSFP+ Transceiver Module
The Alcatel-Lucent QSFP-40G-LR Compatible transceiver is a 40Gbps long-range optical module designed for 40GBASE-LR4 Ethernet connectivity over single-mode fiber. It provides up to 10km of optical transmission and is designed for compatible Alcatel-Lucent networking equipment.
The module uses a compact QSFP+ form factor with four LAN-WDM optical channels and a Duplex LC interface. It is suitable for enterprise networks, data center interconnects, aggregation networks, and other high-speed infrastructure requiring extended 40Gbps optical connectivity.
40GBASE-LR4 Long-Range Connectivity
This transceiver is designed for 40 Gigabit Ethernet applications using the 40GBASE-LR4 standard. The four optical channels operate together to provide high-bandwidth transmission across a single-mode fiber link.
The 40GBASE-LR4 architecture makes the module suitable for longer network connections where short-range multimode 40G optics are not sufficient.
10KM Single-Mode Fiber Transmission
The module is designed for single-mode fiber (SMF) and supports transmission distances of up to 10km. The actual achievable distance depends on fiber attenuation, connector losses, optical dispersion, and the overall optical link budget.
LAN-WDM Optical Architecture
The transceiver uses four LAN-WDM wavelength channels around the 1310nm optical band. These channels are multiplexed for high-capacity transmission over the single-mode fiber connection.
QSFP+ and Duplex LC Interface
The compact QSFP+ form factor provides a hot-pluggable interface for compatible 40Gbps network equipment. The optical interface uses a Duplex LC connector for single-mode fiber connectivity.
Digital Optical Monitoring
The compatible module supports Digital Optical Monitoring (DOM), allowing compatible host equipment to access supported optical operating parameters for network monitoring and maintenance.
Technical Specifications
| Specification |
Details |
| Brand |
Alcatel-Lucent Compatible |
| Model |
QSFP-40G-LR |
| Product Type |
40GBASE-LR4 Optical Transceiver |
| Form Factor |
QSFP+ |
| Data Rate |
40Gbps |
| Optical Standard |
40GBASE-LR4 |
| Maximum Distance |
10km |
| Fiber Type |
Single-Mode Fiber (SMF) |
| Wavelength |
1310nm Band |
| Optical Architecture |
4-Channel LAN-WDM |
| Connector |
Duplex LC |
| Digital Optical Monitoring |
Supported |
| Operating Temperature |
0°C to 70°C |
Applications
- 40GBASE-LR4 Ethernet networks
- Data center interconnects
- Enterprise backbone networks
- Network aggregation
- Telecommunications infrastructure
- Switch-to-switch connectivity
- 10km single-mode fiber links
Compatibility
The Alcatel-Lucent QSFP-40G-LR Compatible module is designed for compatible Alcatel-Lucent networking equipment supporting 40GBASE-LR4 QSFP+ optical transceivers.
Before installation, verify the host device's supported QSFP+ transceiver list, optical port requirements, fiber type, connector configuration, and required transmission distance. The complete optical link should also be evaluated for optical power budget and fiber losses.
Buy Alcatel-Lucent QSFP-40G-LR Compatible Transceiver in Bangladesh
Datacom Technologies (BD) supplies Alcatel-Lucent-compatible optical transceivers, enterprise networking equipment, fiber connectivity products, and data center hardware in Bangladesh. The QSFP-40G-LR Compatible module is suitable for compatible 40Gbps networking environments requiring long-reach single-mode fiber connectivity.
For enterprise, ISP, telecom, data center, and project requirements, customers can request a quotation based on the required optical module, host equipment, fiber type, connector, and transmission distance.
