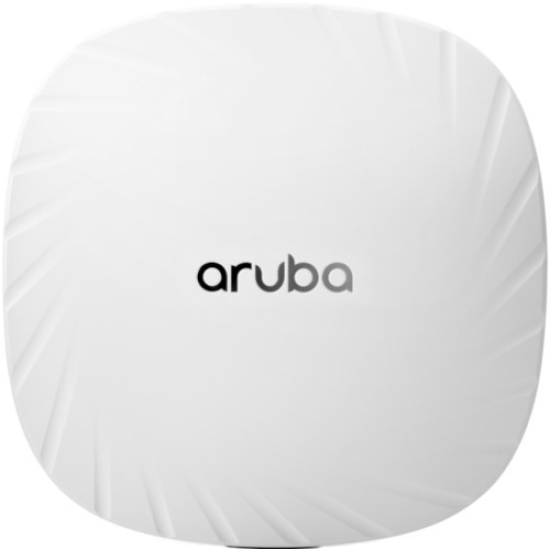

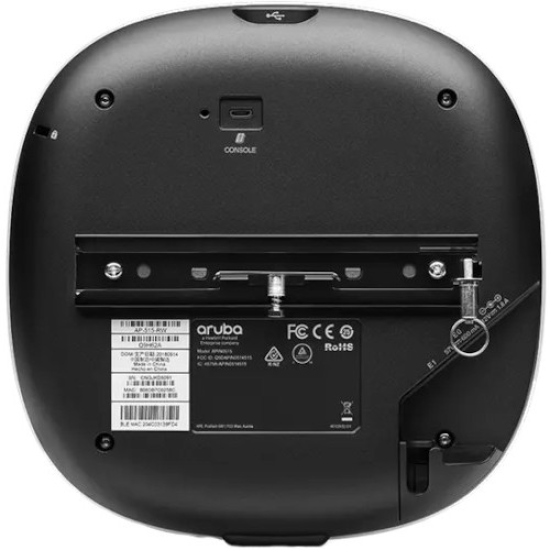

Aruba AP-505H Wi-Fi 6 Indoor Access Point – Dual-Band, Hotel & Enterprise UseAruba AP‑505H delivers fast and reliable dual‑band Wi‑Fi 6 (802.11ax) performance with OFDMA and MU‑MIMO for smooth connectivity in hotels and enterprise environments. It includes advanced security (WPA3), built‑in Bluetooth 5 for location services, and optimized handling of high‑client density. PoE installation with centralized management via Aruba Central makes it ideal for scalable indoor deployments. Aruba AP-505H Wi-Fi 6 Indoor Access Point — SpecificationsSpecification |
Details |
|---|
| Model | Aruba AP-505H (R3V46A) |
| Wireless Standard | Wi-Fi 6 (IEEE 802.11ax) dual-band indoor AP |
| Wi-Fi Radios | Dual radio, 2×2 MIMO (2.4 GHz & 5 GHz) |
| Max Data Rate | 5 GHz: up to ~1.2 Gbps
2.4 GHz: up to ~287 Mbps |
| Security | WPA, WPA2, WPA3 – Enterprise |
| Antennas | Integrated semi-directional, 5.2 dBi (2.4 GHz) / 5.4 dBi (5 GHz) |
| Ethernet Ports | 1 × SmartRate (100/1000/2.5 Gbps) RJ-45 uplink
4 × 10/100/1000 Mbps LAN |
| IoT / Other Radios | Bluetooth Low Energy (BLE5.0), Zigbee (802.15.4) |
| Management Modes | Aruba Central (cloud), controller-based, Instant/RAP |
| PoE Support | 802.3af/at PoE, 802.3bt up to 51 W |
| VPN Throughput | ~500 Mbps or better |
| Clients per Radio | Up to ~256 |
| BSSIDs per Radio | Up to ~16 |
| Operating Temp. | 0 °C to 40 °C |
| Dimensions | ~86 × 47 × 150 mm |
| Weight | ~360 g |
Description For Aruba AP-505H Wi-Fi 6 Indoor Access Point
The Aruba AP-505H is a high-performance enterprise-grade Wi-Fi 6 (802.11ax) indoor access point designed especially for hospitality and high-density environments such as hotels, resorts, conference venues, and similar spaces requiring robust and scalable wireless connectivity. It delivers high-speed wireless coverage across both the 2.4 GHz and 5 GHz bands using dual 2×2 MIMO radios, achieving up to approximately 1.2 Gbps on 5 GHz and ~287 Mbps on 2.4 GHz. This ensures reliable, low-latency connections for both legacy and modern Wi-Fi 6-capable devices.
Unlike standard APs, the AP-505H includes a SmartRate multi-gigabit uplink port (up to 2.5 Gbps) and four additional Gigabit LAN ports, making it suitable for wired device connectivity or powering downstream equipment. It also features integrated Bluetooth 5 and Zigbee radios to support IoT applications and location services without requiring extra gateways.
Security is strong, with support for WPA/WPA2/WPA3 enterprise encryption, and the AP can be centrally managed via Aruba Central cloud, on-premises controllers, or in Instant mode. With support for PoE power (802.3af/at/bt), a compact design, and flexible mounting options, the AP-505H is ideal for modern hospitality Wi-Fi deployments seeking performance, flexibility, and future-proof wireless infrastructure.
Why Choose Aruba AP-505H Wi-Fi 6 Indoor Access Point From Datacom Technologies BD
Superior Wi-Fi 6 Performance
The Aruba AP-505H Wi-Fi 6 Indoor AP delivers blazing-fast wireless connectivity with the latest Wi-Fi 6 (802.11ax) standard. Designed for high-density environments, it ensures seamless performance for multiple devices simultaneously, making it ideal for offices, schools, and healthcare facilities. With advanced OFDMA and MU-MIMO technology, you get reduced latency and optimized throughput for every user.
Easy Deployment and Management
With Aruba’s intuitive management platform, deploying the AP-505H is quick and hassle-free. Whether managed via Aruba Central cloud or on-premises Aruba Instant controller, network administrators can monitor, optimize, and secure the network efficiently. Its compact design and simple mounting options make installation in ceilings or walls smooth and unobtrusive.
Enterprise-Grade Security
Security is a top priority with Aruba AP-505H. Equipped with WPA3 encryption, role-based access control, and Aruba’s AI-driven threat detection, your network remains protected from unauthorized access and cyber threats. It supports seamless integration with existing Aruba network infrastructure for end-to-end security.
Energy Efficient and Reliable
The AP-505H supports Aruba’s Adaptive Radio Management and power-saving features, ensuring low energy consumption without compromising performance. Its rugged design ensures consistent operation even in challenging indoor environments, delivering reliable Wi-Fi coverage wherever needed.
Why Buy From Datacom Technologies BD
At Datacom Technologies BD, we provide genuine Aruba networking products with warranty and fast delivery across Bangladesh. Our expert team offers support for installation, configuration, and troubleshooting, ensuring you get the best experience with your Aruba AP-505H Wi-Fi 6 AP.
What is the price of Aruba AP-505H Wi-Fi 6 Indoor Access Point in Bangladesh?
The Latest price of Aruba AP-505H Wi-Fi 6 Indoor Access Point in Bangladesh is 56000৳. You can buy the Aruba AP-505H Wi-Fi 6 Indoor AP at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
