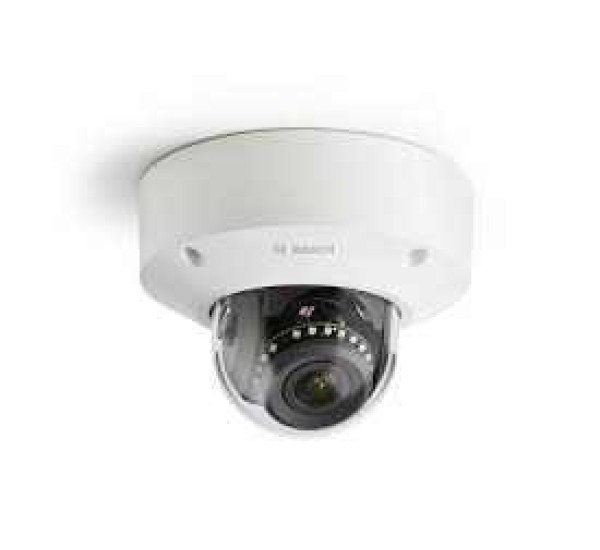

Bosch NDE‑7604‑AL / NDE‑7604‑AL‑OC – 8MP Network IR Dome Camera | Advanced CCTV Surveillance
The Bosch NDE‑7604‑AL / NDE‑7604‑AL‑OC 8MP Network IR Dome Camera is a professional IP‑based security camera designed for high‑resolution, 24/7 surveillance in commercial and industrial environments. With 8 megapixel (4K) resolution, built‑in infrared (IR) illumination, and advanced video analytics, this camera delivers sharp, detailed images and reliable monitoring performance under a wide range of lighting conditions.
Part of Bosch’s trusted NDE series, the NDE‑7604‑AL is ideal for critical security applications that require enhanced image clarity, low‑light performance, and intelligent monitoring features. It is suitable for deployment in offices, retail spaces, warehouses, public areas, and infrastructure installations.
SPECIFICATION TABLE
| Feature | Details |
|---|
| Product Name | Bosch NDE‑7604‑AL / NDE‑7604‑AL‑OC 8MP Network IR Dome Camera |
| Brand | Bosch Security Systems |
| Camera Type | 8MP Network Dome Camera |
| Resolution | 8.3 Megapixels (4K UHD) |
| Lens | Fixed / Varifocal Options (Model Dependent) |
| Sensor | 1/2.5″ CMOS |
| IR Illumination | Built‑in IR up to 30m (Model Dependent) |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | Up to 30 fps (4K) |
| Day/Night | True Day/Night with IR Cut Filter |
| Networking | PoE / Ethernet |
| Analytics | Built‑in Intelligent Video Analytics |
| Weather Rating | Outdoor Ready (IP66 for OC model) |
| Vandal Resistance | IK10 (Indoor Model) |
| ONVIF | Profile S, G, Q Compatible |
| Application | Enterprise IP CCTV Surveillance |
Bosch NDE‑7604‑AL / NDE‑7604‑AL‑OC Description
The Bosch NDE‑7604‑AL / NDE‑7604‑AL‑OC 8MP Network IR Dome Camera is engineered to provide high‑resolution surveillance with superior performance in a variety of environments. Its 8MP 4K sensor captures detailed images with excellent clarity—ideal for identifying subjects, reading license plates, and monitoring wide coverage areas.
Equipped with built‑in IR LEDs, this camera delivers effective night‑time illumination, allowing it to capture clear black‑and‑white video even in complete darkness. The True Day/Night function with an automatic IR cut filter ensures accurate color representation during daylight and enhanced sensitivity at night.
The camera supports advanced video compression formats (H.265, H.264, MJPEG) to optimize bandwidth and storage without sacrificing image quality. Onboard intelligent video analytics such as motion detection, tamper detection, and object recognition help to enhance event detection, reduce false alarms, and improve overall security awareness.
With rugged construction and optional weatherproof housing (OC version) rated IP66, the camera is suitable for both indoor and outdoor installations, including challenging environments such as parking lots, transit hubs, and perimeter security zones. It is fully compatible with ONVIF standards, ensuring smooth integration with third‑party VMS and NVR systems.
KEY FEATURES
8 MP (4K) ultra‑high‑resolution network camera
Built‑in IR illumination for night surveillance
True Day/Night switching with IR cut filter
H.265/H.264/MJPEG video compression
ONVIF compliant for easy VMS integration
Advanced intelligent video analytics
PoE support for simplified cabling
Weather‑resistant IP66 (OC version)
Vandal‑resistant design (IK10)
WHERE IT CAN BE USED
Indoor retail surveillance systems
Outdoor perimeter and parking security
Office and commercial building monitoring
Warehouse and logistics centers
Public spaces and transportation hubs
Residential complexes and gated communities
Critical infrastructure and industrial facilities
