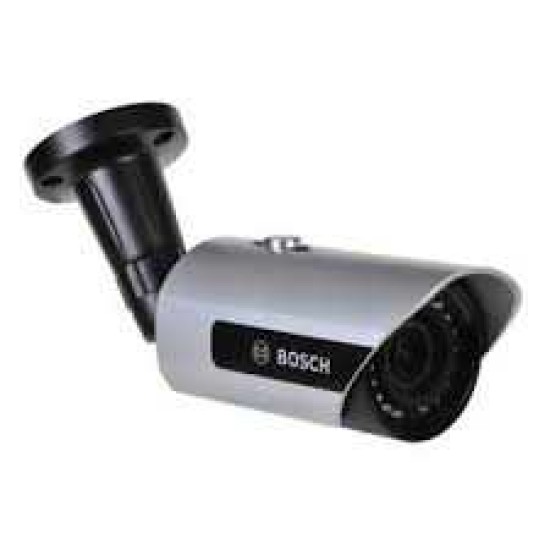

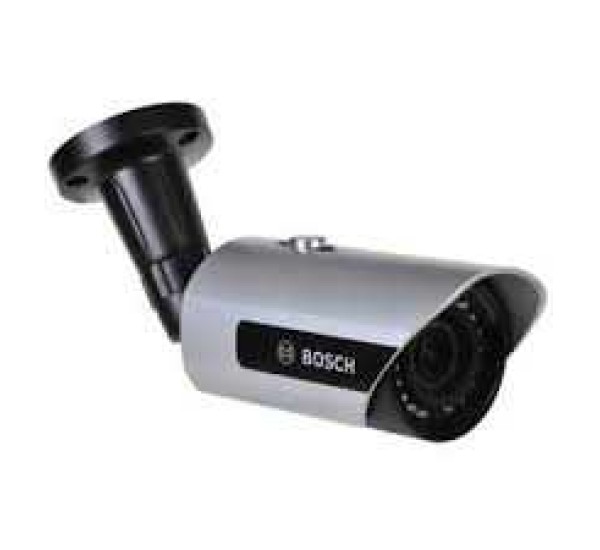

Bosch VTI‑4075‑V311 – 960H Analog Outdoor IR Bullet Camera | Weather‑Resistant CCTV Surveillance
The Bosch VTI‑4075‑V311 960H Analog Outdoor IR Bullet Camera is a rugged and reliable high‑resolution analog CCTV camera designed for outdoor security surveillance. With its 960H resolution sensor and integrated infrared (IR) illumination, this camera captures clear and detailed video around the clock — even in low‑light or no‑light conditions.
Built for commercial, industrial, and perimeter security applications, this outdoor bullet camera delivers wide‑coverage monitoring and dependable performance in harsh environments. Its weather‑resistant housing and powerful IR LEDs make it ideal for protecting retail spaces, parking lots, entrances, and outdoor areas.
SPECIFICATION TABLE
| Feature | Details |
|---|---|
| Product Name | Bosch VTI‑4075‑V311 960H Analog Outdoor IR Bullet Camera |
| Brand | Bosch Security Systems |
| Camera Type | Analog CCTV Bullet Camera |
| Image Sensor | 1/3‑inch CCD with 960H resolution |
| Effective Pixels | 976 × 494 |
| Resolution | 960H (960 × 480 TV lines equivalent) |
| Lens | Fixed or optional varifocal (varies by SKU) |
| IR Illumination | Built‑in IR LEDs (up to 30 m / depending on model) |
| Minimum Illumination | 0 lux (with IR on) |
| Video Output | Composite Video (1 Vpp, 75Ω BNC) |
| Weather Rating | IP66 Outdoor‑Rated Housing |
| Power Supply | 12 VDC / 24 VAC |
| Operating Temperature | ‑30°C to +60°C |
| Application | Outdoor CCTV surveillance |
Bosch VTI‑4075‑V311 Outdoor IR Bullet Camera Description
The Bosch VTI‑4075‑V311 960H Analog Outdoor IR Bullet Camera is engineered for 24/7 outdoor video security and perimeter monitoring. With its 960H high‑resolution CCD sensor, the camera delivers expanded horizontal resolution compared to standard analog cameras, providing sharper and more detailed video that improves surveillance effectiveness.
The integrated infrared illumination automatically activates in low‑light or total darkness, ensuring that video remains clear and usable even at night — up to significant distances depending on model and installation height. This makes the camera ideal for entrances, driveways, parking lots, and boundary security zones where night monitoring is critical.
Built with a durable outdoor‑rated housing (IP66), the camera resists dust, rain, and extreme temperatures, allowing reliable performance in all weather conditions. Its bullet‑style form factor and easy mounting options simplify installation on walls, poles, and ceilings.
KEY FEATURES
960H high‑resolution analog camera for wider and sharper images
Integrated IR LEDs for night vision up to long distances
Weather‑resistant IP66 housing for outdoor durability
Automatic day/night switching for all‑lighting performance
1/3‑inch CCD sensor for stable imaging
Flexible 12 VDC / 24 VAC power support
Easy installation with bullet‑style bracket
Suitable for wide‑area outdoor surveillance
WHERE IT CAN BE USED
Outdoor perimeter and boundary security
Parking lots and garage entrances
Residential and commercial property exteriors
Retail storefronts and outdoor walkways
Campus and institutional outdoor monitoring
Warehouses and industrial facilities
Public spaces such as parks and transit hubs
