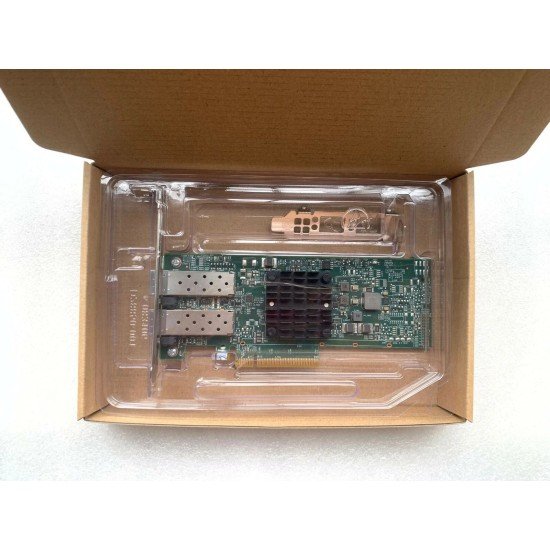

Broadcom BCM57414 Ethernet 10/25Gb 2‑port SFP28 Adapter for HPE
Specification Table
| Feature |
Details |
| Model |
Broadcom BCM57414 |
| Form Factor |
PCIe 3.0 x8 |
| Port Count |
2 x SFP28 Ports |
| Data Rate |
10/25 Gigabit Ethernet per port |
| Connector Type |
SFP28 |
| Compatible Transceivers |
10GbE/25GbE SFP28, SFP+ modules |
| Supported Protocols |
Ethernet, iSCSI, FCoE |
| Virtualization Support |
SR-IOV, VMware NetQueue, Microsoft VMQ |
| Offload Features |
TCP/UDP/IP checksum, RSS, TSO, LRO |
| Operating System Support |
Windows Server, VMware ESXi, Linux |
| Compatibility |
HPE ProLiant Gen10 and Gen10 Plus servers |
| Low Profile Bracket |
Included (standard bracket also available) |
| Power Consumption |
Approx. 7.5W |
? Description
The Broadcom BCM57414 Ethernet 10/25Gb 2‑port SFP28 Adapter is a high-performance network interface card designed specifically for HPE ProLiant Gen10 and Gen10 Plus servers. Featuring dual SFP28 ports, this adapter supports speeds of 10Gb and 25Gb Ethernet, offering enterprise-grade connectivity and bandwidth for data-intensive applications.
Built on Broadcom's robust network controller technology, the BCM57414 delivers enhanced throughput with advanced offload features like TCP/IP checksum, TSO, LRO, and RSS, reducing CPU load and boosting system performance. With full support for Single Root I/O Virtualization (SR-IOV), VMware NetQueue, and Microsoft VMQ, it's optimized for virtualized environments and cloud deployments.
This adapter is ideal for modern data centers that demand reliable, low-latency connections. Its dual-port configuration enhances redundancy and provides scalable bandwidth for storage, virtualization, and high-performance computing workloads. Compatible with various HPE transceivers and DAC cables, it provides flexibility in deployment.
Support for popular operating systems including Windows Server, VMware ESXi, and Linux, ensures seamless integration into a wide range of enterprise infrastructures. With its low-profile form factor, the BCM57414 fits in compact server environments, making it a versatile choice for HPE deployments.
? Key Features:
- Ports: Dual-port SFP28 (10/25Gb Ethernet)
- Interface: PCIe Gen3 x8
- Controller: Broadcom BCM57414
- Form Factor: Low-profile adapter
- Offloads: TCP/IP, RDMA over Converged Ethernet (RoCE v2), iSCSI
- Virtualization Support: SR-IOV (Single Root I/O Virtualization), VMware NetQueue, Microsoft VMQ
- Security: Secure Boot, UEFI, PXE Boot, Boot ROM with firmware authentication
- Performance: Low latency, high throughput for demanding applications
? Where It Can Be Used?
- Data Centers for high-performance storage and compute networks
- Virtualized Environments (VMware, Hyper-V) needing advanced offload features
- Enterprise Networks requiring 10Gb/25Gb connectivity
- HPE ProLiant Servers — certified compatibility with Gen10/Gen10 Plus models
? Installation Steps:
- Power Off Server and unplug power cables
- Open Server Chassis and locate PCIe slot
- Insert the Adapter securely into the PCIe Gen3 x8 slot
- Connect SFP28 Cables to the adapter ports
- Close Chassis and power on the server
- Install Drivers/Firmware from HPE or Broadcom site
- Configure Network Settings through OS or BIOS/UEFI
? User Experience:
The BCM57414 delivers exceptional performance for bandwidth-intensive workloads. Users experience:
- Stable connectivity at 10Gb and 25Gb speeds
- Reduced CPU load with hardware offloads
- Efficient virtualization support for modern server infrastructures
- Seamless integration with HPE systems and management tools
✅ Why Choose Broadcom BCM57414 Ethernet 10/25Gb Adapter?
- Reliable Performance: Built for enterprise workloads with consistent throughput
- Advanced Offloads: Reduces server CPU usage and boosts application speed
- Future-Proofing: Supports both 10GbE and 25GbE, ideal for scaling
- HPE Certified: Guaranteed compatibility and support within HPE server ecosystems
- Enhanced Security: Hardware-level protections and secure boot features
Buy Broadcom BCM57414 Ethernet 10/25Gb 2‑port SFP28 Adapter for HPE at the Best Price from Datacom BD Online
In Bangladesh, you can get Broadcom BCM57414 Ethernet 10/25Gb 2‑port SFP28 Adapter for HPE From
Datacom. We have a large collection of latest Broadcom Network Card to purchase. Order Online Or Visit our Office to get yours at lowest price. The Broadcom BCM57414 Ethernet 10/25Gb 2‑port SFP28 Adapter for HPE comes with 1 Year warranty.
- ? Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of Broadcom BCM57414 Ethernet 10/25Gb 2‑port SFP28 Adapter for HPE in Bangladesh?
The estimated price of Broadcom BCM57414 Ethernet 10/25Gb 2‑port SFP28 Adapter for HPE in Bangladesh is 52,500৳. You can buy the Broadcom BCM57414 Ethernet 10/25Gb 2‑port SFP28 Adapter for HPE at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
