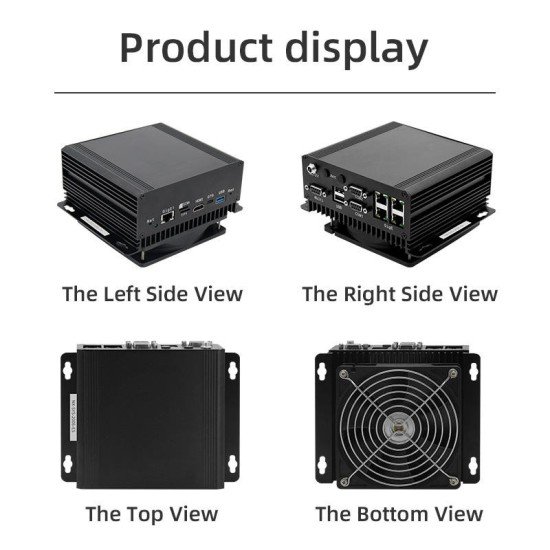

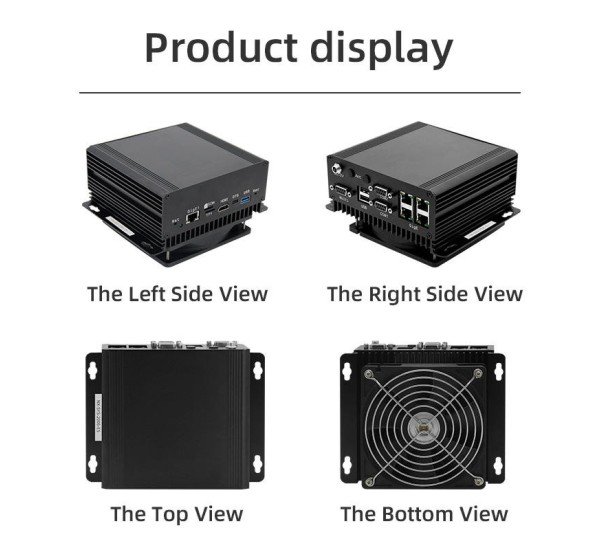

Jetson Xavier Nx 8 AI BOX PC

Specification	Details
Product Name	Jetson Xavier NX 8 AI BOX PC
Module	NVIDIA Jetson Xavier NX 8GB SoM
AI Performance	Up to ~21 TOPS (INT8)
GPU	384-core NVIDIA Volta GPU with 48 Tensor Cores
CPU	6-core NVIDIA Carmel ARM v8.2 64-bit
Memory	8 GB LPDDR4x
Storage	16 GB eMMC onboard, expandable via NVMe M.2
Networking	1× Gigabit Ethernet
Wireless	Optional Wi-Fi / Bluetooth module
USB Ports	Multiple USB 3.0 and USB 2.0 ports
Camera Interface	2× MIPI CSI-2 connectors
Display Output	HDMI 2.0 / eDP 1.4
I/O Interfaces	UART, SPI, I2C, GPIO, CAN, PWM
Power Supply	12V DC input
Cooling	Built-in fan and heat sink
Form Factor	Compact embedded AI BOX PC
Software Support	NVIDIA JetPack SDK (Linux + AI libraries)
Development Focus	Edge AI, robotics, intelligent vision systems, autonomous machines

Description:

The Jetson Xavier NX 8 AI BOX PC is a compact, high-performance AI computing platform designed for developers and integrators building edge AI, robotics, and intelligent vision applications. Powered by the NVIDIA Jetson Xavier NX 8GB module, it combines a 6-core NVIDIA Carmel ARM CPU with a 384-core Volta GPU with 48 Tensor Cores, delivering approximately 21 TOPS of AI performance suitable for real-time inference, deep learning, and autonomous systems.
Equipped with 8 GB LPDDR4x memory and 16 GB eMMC storage (expandable via NVMe), the AI BOX PC provides fast access to datasets and AI workloads. It supports multiple MIPI CSI-2 cameras, high-definition display output via HDMI/eDP, and standard interfaces such as USB, Gigabit Ethernet, UART, SPI, I2C, GPIO, and CAN, making it ideal for robotics, autonomous vehicles, smart cameras, and other embedded AI solutions.
The compact form factor includes an efficient fan and heat sink cooling solution, and it can be powered via 12V DC input, ensuring reliable operation in industrial or mobile environments. With full support for the NVIDIA JetPack SDK, developers can leverage Linux, CUDA, TensorRT, cuDNN, and other AI frameworks to rapidly prototype and deploy edge AI solutions with maximum efficiency and flexibility.
