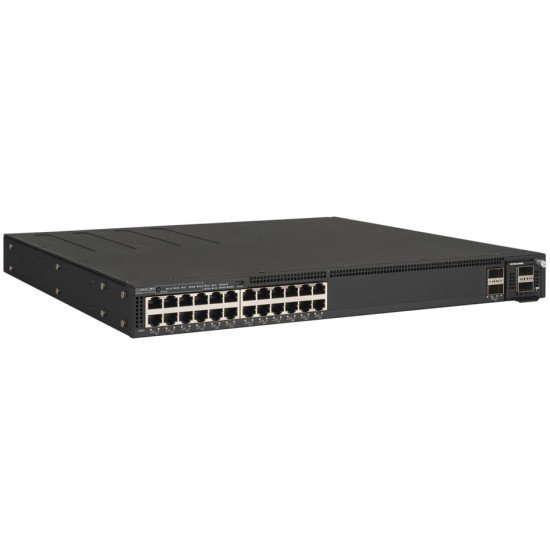

RUCKUS ICX 7550-24P Access Switch

RUCKUS ICX 7550-24P Access Switch

Specification

Specification	Details
Model	RUCKUS ICX 7550-24P
Ports	24 x 10/100/1000BASE-T PoE+ Ports, 4 x 10GbE SFP+
PoE Budget	370W PoE+
Switching Capacity	320 Gbps
Forwarding Rate	238 Mpps
Latency	<1 μs (millisecond)
Stacking	Yes, up to 12 switches (Virtual Chassis Stacking)
Power Supply	Dual redundant AC power supplies
Operating Temperature	0°C to 40°C (32°F to 104°F)
Management	CLI, Web GUI, SNMP, RUCKUS Cloud-enabled
Form Factor	1U rack-mounted
Dimensions	44.5 x 4.4 x 30.2 cm (17.5 x 1.7 x 11.9 inches)
Weight	4.2 kg (9.26 lbs)
Protocols Supported	IPv4, IPv6, OSPF, BGP, RIP, STP, MSTP, etc.
Security Features	MACsec, 802.1X, ACLs, DHCP snooping, IP source guard
Warranty	1 Year

Description The RUCKUS ICX 7550-24P Access Switch is designed to deliver high-performance network connectivity with advanced features suited for modern enterprises. It offers 24 Gigabit Ethernet (GE) ports with PoE+ (Power over Ethernet), which supports powered devices such as phones, cameras, and access points. The switch is equipped with 4 10GbE SFP+ ports for high-speed uplinks and flexibility in network design. This switch is built to handle demanding workloads, providing up to 320 Gbps switching capacity and low latency under 1 microsecond, ensuring smooth data transfer even in large networks. The ICX 7550-24P supports stacking of up to 12 switches for seamless network expansion and management, enabling scalability for growing businesses. The device integrates easily with RUCKUS Cloud management for centralized control, allowing administrators to manage the network remotely. Security features such as MACsec encryption, 802.1X authentication, and ACLs ensure that sensitive data is protected. With a 370W PoE+ budget, redundant power supplies, and a compact 1U form factor, the RUCKUS ICX 7550-24P offers a reliable, efficient, and future-proof solution for enterprise network infrastructures.

Key Features:

24 Ports with Power over Ethernet (PoE+): The switch provides 24 Gigabit Ethernet ports, with PoE+ support to power devices like IP phones, wireless access points, and security cameras. High Performance: Offers high throughput and low latency, making it suitable for demanding applications in high-traffic environments. Advanced Security: Built-in security features such as MACsec (media access control security), and strong encryption protocols ensure network protection. Stacking Support: The switch supports flexible stacking, which allows you to link multiple units together to function as a single entity for easier management. Cloud Management: It integrates with RUCKUS’ cloud management platform, enabling remote management and monitoring from anywhere. Simple Installation: Its compact design and intuitive setup process make it easy to install in various environments. Energy Efficient: The switch is designed to be energy-efficient, reducing power consumption and helping with cost savings.

Where it Can Be Used:

Small to Medium-Sized Businesses: Ideal for businesses that need reliable access switching with PoE support for powering devices. Educational Institutions: Perfect for schools, colleges, and universities to support classroom networking and Wi-Fi deployment. Healthcare Facilities: Suitable for hospitals and clinics to handle the network traffic from medical devices and office systems. Retail Locations: Great for retail networks to support point-of-sale (POS) systems and security cameras. Enterprise Environments: Can be used in larger businesses needing fast, secure, and scalable networking solutions.

Installation Steps:

Unboxing and Inspection: Carefully unpack the RUCKUS ICX 7550-24P and ensure all accessories are included. Mounting: The switch can be mounted in a standard 19-inch rack using the included rack-mount brackets or placed on a flat surface. Power Connection: Connect the power cable to the switch and plug it into a power outlet. Network Connection: Connect the uplink port to your core network or router, and connect your devices (such as IP phones or access points) to the switch ports. Configuration: Access the switch's web interface or use a command-line interface (CLI) to configure settings like VLANs, security, and IP addressing. Testing: After installation, test the connections and ensure all devices are powered and properly connected.

User Experience:

Easy Setup: Users report a smooth setup experience with the intuitive web-based management interface, making it accessible for both network administrators and non-technical staff. Reliable Performance: The switch provides stable performance with minimal downtime. It's optimized for environments with high data transfer and streaming requirements. Scalable: As needs grow, users can easily expand their network by stacking multiple switches without complicated configurations. Remote Management: With cloud integration, users can manage the switch remotely, giving administrators flexibility and control, even from off-site.

Why Choose RUCKUS ICX 7550-24P Access Switch:

High-Performance and Scalability: It's designed to handle high-speed connections with low latency, making it ideal for demanding applications like VoIP, video conferencing, and high-definition streaming. PoE+ Support: It can power devices such as access points, IP phones, and cameras, eliminating the need for additional power adapters and making it cost-efficient. Security: Built-in security features like MACsec encryption ensure the protection of your data and devices. Cloud Integration: The ability to integrate with the RUCKUS cloud management platform provides users with centralized management, visibility, and control over their network. Energy Efficiency: The switch is energy-efficient, which reduces operational costs while providing optimal performance. Ease of Use: It’s designed to be user-friendly, with both a web interface and CLI for configuration, making it suitable for both experienced and beginner network administrators.

Supported/Comparable Models

RUCKUS ICX 7550-48P: Offers 48 ports with PoE+ and additional uplink options. RUCKUS ICX 7250-24P: A smaller, more cost-effective model with 24 ports but lower switching capacity. RUCKUS ICX 7450-24P: A similar access switch but with more advanced Layer 3 capabilities and higher throughput. Cisco Catalyst 9300-24P: A comparable alternative with 24 PoE+ ports and a robust feature set. Arista 7050X Series: High-performance switches with 10GbE and 40GbE support suitable for enterprise environments.

Buy RUCKUS ICX 7550-24P Access Switch from Datacom BD

Get the original RUCKUS ICX 7550-24P Access Switch in Bangladesh from Datacom BD. We offer a wide range of the latest Ruckus Network Switch at competitive prices. Order online or visit our office to get yours at the best price. This RUCKUS ICX 7550-24P Access Switch comes with a 1-year warranty.

Get in Touch with Datacom Technologies (BD)

• ? Call/WhatsApp: 01748173213
• ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com

What is the price of RUCKUS ICX 7550-24P Access Switch in Bangladesh?

The latest price of RUCKUS ICX 7550-24P Access Switch in Bangladesh starts from Taka 310,000 - 345,000 Taka (Estimated), depending on model, capacity and specification. you can buy the original Ruckus Network Switch at the best price from our website or visit our office.
