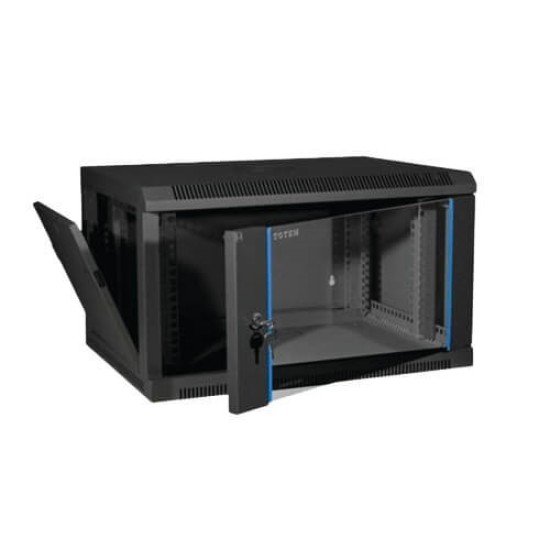

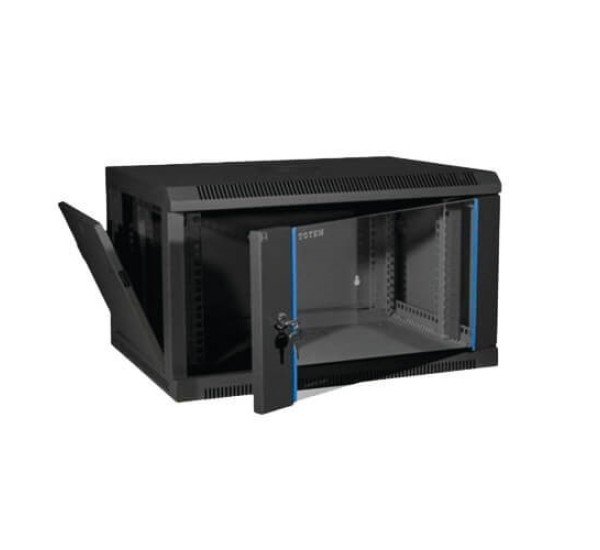

Toten 6U Rack Wall Mount Network Cabinet
Specification
| Feature |
Specification |
| Model |
Toten 6U |
| Dimensions (W x D x H) |
600 mm x 450 mm x 368 mm |
| Material |
SPCC cold-rolled steel |
| Mounting |
Wall mount or standing installation |
| Front Door |
Toughened glass with cam lock |
| Side Panels |
Removable with optional locks |
| Fans |
2 x 4-inch low-noise fans on vented top flush panel |
| Power Distribution Unit (PDU) |
6-way PDU |
| Cable Entry |
Top cover and bottom panel |
| Surface Finish |
Epoxy powder coating in black |
| Compliance Standards |
ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI standard |
| Loading Capacity |
Static loading: 60 kg |
Description
The Toten 6U Wall Mount Network Cabinet is a compact and robust solution designed to securely house and organize networking equipment in environments with limited space. Constructed from SPCC cold-rolled steel, this cabinet ensures durability and stability for various networking components. Its welded frame supports both wall-mounted and standing installations, offering flexibility to suit different setups. The cabinet's dimensions are 600 mm in width, 450 mm in depth, and 368 mm in height, adhering to the 19-inch standard installation, making it compatible with a wide range of networking devices. The front door features a toughened glass panel with a cam lock, providing both visibility and security for the housed equipment. Removable side panels with optional locks facilitate easy access during maintenance or upgrades. For effective cable management, the cabinet includes cable entry points on both the top cover and bottom panel, ensuring organized and clutter-free wiring. Ventilation is enhanced by two low-noise 4-inch fans mounted on the vented top flush panel, maintaining optimal operating temperatures for the equipment. Additionally, a 6-way Power Distribution Unit (PDU) is integrated to manage power distribution efficiently. The cabinet's surface is treated with epoxy powder coating in black, providing a sleek finish and resistance to corrosion. Complying with standards such as ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, and ETSI, the Toten 6U cabinet ensures compatibility and reliability for various networking applications.
Key Features
- Durable Construction – Made from high-quality cold-rolled steel for enhanced durability and strength.
- Ventilation System – Features perforated side panels and optional fan installation for optimal airflow.
- Lockable Front Door – Ensures security with a tempered glass or solid steel lockable front door.
- Easy Cable Management – Comes with cable entry points at the top and bottom for an organized setup.
- Standard Compatibility – Designed to fit most standard 19-inch rack-mounted equipment.
- Quick Access Design – Removable side panels for easy maintenance and equipment adjustments.
- Compact & Space-Saving – Ideal for small office and home network setups.
Where It Can Be Used?
- Small Office Networks – Perfect for housing routers, switches, and patch panels in a secure environment.
- Home Setups – Ideal for home network enthusiasts who want a tidy and professional-looking installation.
- Retail and Commercial Spaces – Provides a centralized location for networking equipment in small businesses and retail stores.
- Data Centers & Server Rooms – Suitable for auxiliary network infrastructure to complement larger setups.
- Educational Institutions – Used in schools and universities for network distribution and security.
Installation Steps
- Choose a Suitable Location – Select a sturdy wall with enough clearance for ventilation and accessibility.
- Mark Mounting Points – Use a level and a measuring tape to ensure alignment before drilling holes.
- Install Wall Brackets – Securely attach mounting brackets to the wall using appropriate anchors.
- Mount the Cabinet – Lift and align the cabinet onto the brackets, then secure it firmly.
- Install Network Equipment – Place switches, patch panels, and other devices inside the cabinet.
- Cable Management – Route cables neatly through the designated entry points to avoid clutter.
- Secure & Test – Lock the front door and side panels, then power on the devices to ensure everything functions correctly.
User Experience
Users appreciate the sturdy build and ease of installation, making it a great choice for both professionals and beginners. The ventilation features help maintain optimal operating temperatures, while the lockable front door adds security for valuable networking equipment. The modular design ensures quick access for maintenance, making it highly convenient for IT professionals.
Why Choose Toten 6U Rack Wall Mount Network Cabinet?
- High-Quality Materials – Built with durable steel and a strong lockable structure.
- Efficient Space Utilization – Helps organize networking components efficiently in limited spaces.
- Enhanced Security – Lockable design prevents unauthorized access.
- Versatile Application – Suitable for a wide range of environments, from offices to home setups.
- User-Friendly Design – Easy to install, manage, and maintain, even for non-experts.
Buy Toten 6U Rack Wall Mount Network Cabinet from Datacom BD
Get the original Toten 6U Rack Wall Mount Network Cabinet in Bangladesh from Datacom BD. We offer a wide range of the latest Toten 6U Network Rack at competitive prices. Order online or visit our office to get yours at the best price. This Toten 6U Rack Wall Mount Network Cabinet comes with no warranty.
Get in Touch with Datacom Technologies (BD)
- ? Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of Toten 6U Rack Wall Mount Network Cabinet in Bangladesh?
The latest price of Toten 6U Rack Wall Mount Network Cabinet in Bangladesh starts from Taka 80,000 - 10,000 Taka (Estimated). you can buy the original Toten 6U Server Rack at the best price from our website or visit our office.
