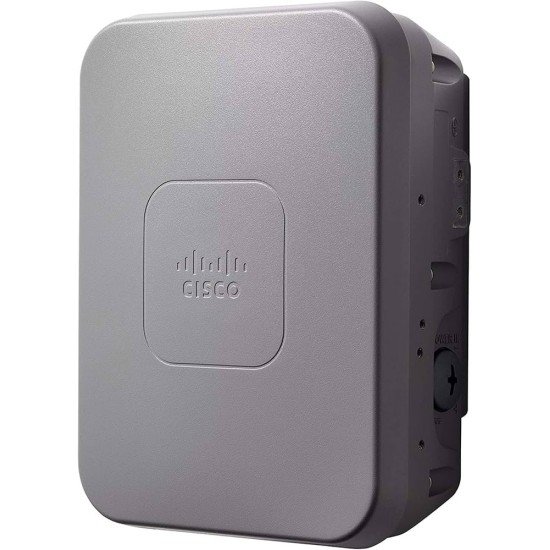

Cisco AIR-AP1562D-E-K9 Outdoor Wireless Access Point (1560 Series, 802.11ac Wave 2, Directional Antenna, External-Antenna)
The Cisco AIR-AP1562D-E-K9 Outdoor Access Point from Datacom Technologies BD delivers enterprise-grade outdoor Wi-Fi connectivity with rugged design and focused coverage. As part of Cisco’s 1560 Series, it supports 802.11ac Wave 2 dual-band wireless and directional external antennas — making it ideal for outdoor coverage, point-to-point or point-to-multipoint links, campus backhaul, transit hubs, large-area Wi-Fi, and industrial/outdoor deployments. Router-Switch.com+1
Specification Table
| Feature | Details |
|---|
| Model | Cisco AIR-AP1562D-E-K9 |
| Series | Aironet 1560 Series Outdoor AP Cisco+1 |
| Type | Outdoor / External-Antenna Wireless Access Point |
| Wi-Fi Standard | IEEE 802.11ac Wave 2 (backward compatible with 802.11a/b/g/n) Router-Switch.com+1 |
| Frequency Bands | Dual-band: 2.4 GHz & 5 GHz Router-Switch.com+1 |
| MIMO & Spatial Streams | 2×2 MIMO, 2 spatial streams (as per 1562D / 1560 Series external-antenna AP) Cisco+1 |
| Maximum PHY Data Rate | Up to 1.3 Gbps (on 5 GHz, 80 MHz channel) Cisco+1 |
| Antenna | External directional antenna (Antenna ports for external antennas) Cisco+1 |
| Uplink / Interfaces | Gigabit Ethernet (PoE capable) and outdoor-rated Ethernet uplink (PoE+) IT Price+1 |
| Deployment Modes | Outdoor AP, Bridge / Point-to-Point / Point-to-Multipoint, Mesh, Standalone or controller-managed deployment Cisco+1 |
| Environmental / Housing | Rugged outdoor-ready housing, designed for outdoor exposure, dust/water/weather resistance (outdoor-grade) Router-Switch.com+1 |
Cisco AIR-AP1562D-E-K9 Description
The AIR-AP1562D-E-K9 is built to deliver reliable, high-throughput outdoor wireless connectivity using 802.11ac Wave 2 dual-band radios. Its external directional antenna setup allows for focused coverage — perfect for point-to-point links, campus backhaul, long-range outdoor Wi-Fi, or targeted outdoor coverage zones. The AP’s dual-band capability (2.4 GHz & 5 GHz) ensures better compatibility with a variety of client devices. Router-Switch.com+1
This model supports flexible deployment modes — whether you need a public hotspot, wireless bridge between buildings, outdoor campus coverage, or industrial backhaul. With its robust outdoor-ready design and high throughput, the AIR-AP1562D-E-K9 is well-suited for demanding environments: campuses, transit zones, warehouses, industrial yards, remote sites, or any outdoor area where stable Wi-Fi connection is required. Router-Switch.com+1
Key Features
• Dual-band 2.4 GHz & 5 GHz with 802.11ac Wave 2 — modern, high-speed Wi-Fi Router-Switch.com+1
• Up to 1.3 Gbps PHY data rate — capable of handling video streaming, backhaul, high-bandwidth traffic Cisco+1
• 2×2 MIMO with 2 spatial streams — adequate throughput and stable connectivity over external antenna link Cisco+1
• External directional antenna support — for point-to-point / point-to-multipoint links, long-range outdoor coverage, targeted network zones Cisco+1
• Outdoor-ready rugged housing — suitable for outdoor, industrial, campus, and transit deployments under varying weather conditions Router-Switch.com+1
• Flexible deployment modes: Access Point, Bridge, Mesh, Point-to-Point, Point-to-Multipoint — adaptable to many network topologies Cisco+1
Where It Can Be Used
• Outdoor campus wireless (universities, corporate campuses, industrial facilities)
• Point-to-point / point-to-multipoint wireless links between buildings or remote sites
• Outdoor coverage for transit zones — stations, bus depots, open platforms
• Big outdoor areas — parks, factories, warehouses, yards requiring Wi-Fi coverage or backhaul
• CCTV & surveillance backhaul over wireless links in outdoor / remote areas
• Temporary or permanent outdoor Wi-Fi hotspots and network backbones
Installation & Deployment Guidelines
-
Mount the AIR-AP1562D-E-K9 on tower, pole, rooftop or appropriate outdoor bracket.
-
Use suitable external directional antennas (per range & coverage requirements).
-
Provide PoE power via Gigabit Ethernet uplink (PoE+ injector or PoE switch) for streamlined installation.
-
Configure the AP in required mode — Access Point, Bridge, Mesh, or Point-to-Point / Multipoint as per design.
-
Set SSID, security (WPA2/WPA3, encryption), channel, and frequency band per deployment needs.
-
Align directional antennas properly for optimal coverage or link stability (for bridge / backhaul).
-
For multiple APs / nodes, plan channel usage and interference mitigation carefully, especially in high-density or overlapping zones.
Why Choose Cisco AIR-AP1562D-E-K9
-
Rugged outdoor-ready design and external directional antenna make it ideal for outdoor and long-range wireless coverage.
-
Dual-band 802.11ac Wave 2 ensures modern wireless performance with backward compatibility.
-
1.3 Gbps throughput supports heavy data traffic — video, backhaul, IoT, surveillance, versatile outdoor connectivity.
-
Flexible deployment modes — AP, bridge, mesh — make it useful for many network use-cases.
-
External antenna flexibility allows optimized coverage or focused links based on environment and topology.
