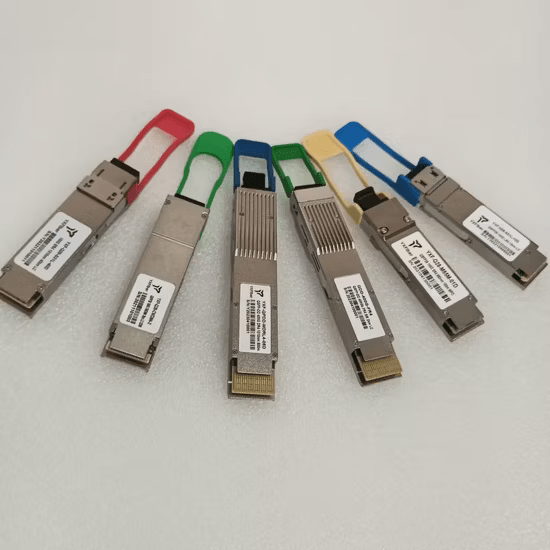

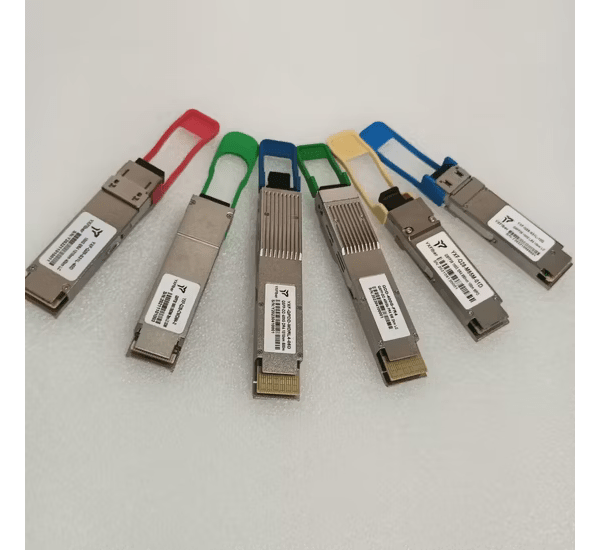

About 400GbE QSFP-DD Transceiver Module
Datacom Technologies BD offers the latest 400GbE QSFP-DD Transceiver Module, designed to meet the increasing demands of modern data centers. These high-performance modules deliver exceptional data rates and low latency, enabling seamless data transmission and network optimization.
Upgrade your network infrastructure with our 400G QSFP-DD Transceivers. Experience the power of high-speed connectivity and future-proof your network for years to come.
400GbE QSFP-DD Transceiver Specification
| Parameter |
Value |
| Data Rate |
400 Gb/s |
| Form Factor |
QSFP-DD |
| Interface |
4 x 100 Gb/s PAM4 |
| Transmission Distance |
Varies by module type (e.g., SR8, LR4, DR4) |
| Connector Type |
MPO-16 (SR8), LC (LR4, DR4) |
| Modulation Format |
PAM4 |
| FEC |
RS-FEC (Reed-Solomon Forward Error Correction) |
| Power Consumption |
< 12W |
| Operating Temperature |
0°C to 70°C |
400GbE QSFP-DD Transceiver Module Description
The
400GbE QSFP-DD transceiver module is a high-speed optical transceiver designed to support 400 Gigabit Ethernet (400GbE) data transmission over fiber optic cables. It utilizes the QSFP-DD (Quad Small Form-factor Pluggable Double Density) form factor, which is a high-density, high-speed interface that enables efficient data transmission in modern data centers and networks.
Key Features and Benefits:
High Data Rate: The 400GbE QSFP-DD module supports a data rate of 400 Gb/s, enabling high-bandwidth applications such as 4K/8K video streaming, cloud computing, and artificial intelligence.
Compact Form Factor: The QSFP-DD form factor allows for high port density in switches and routers, reducing the physical footprint of network equipment.
Multiple Reach Options: 400GbE QSFP-DD modules are available in various reach options, including short-reach (SR8), long-reach (LR4), and extended-reach (DR4) modules, catering to different network topologies and distances.
Advanced Modulation Format: The module utilizes PAM4 (Pulse Amplitude Modulation 4) modulation, which enables higher data rates over fiber optic cables compared to traditional NRZ (Non-Return-to-Zero) modulation.
Forward Error Correction (FEC): FEC is employed to improve the reliability of data transmission over long distances by correcting errors introduced by fiber optic transmission impairments.
Power Efficiency: The module is designed to be power-efficient, reducing operating costs and heat dissipation in data centers.
Applications:
Data Center Interconnect (DCI): 400GbE QSFP-DD modules are ideal for high-speed interconnections between data centers, enabling efficient data transfer between different sites.
High-Performance Computing (HPC): These modules are suitable for high-performance computing clusters, where high-bandwidth communication is essential for processing large datasets.
5G and Beyond: 400GbE QSFP-DD modules can be used in 5G and future wireless networks to support the increasing demand for high-speed data traffic.
Enterprise Networks: These modules can be deployed in enterprise networks to provide high-bandwidth connectivity between servers, storage devices, and network switches.
What is the price of 400GbE QSFP-DD Transceiver Module in BD?
The latest price of 400GbE QSFP-DD Transceiver Module price in BD starts from
Taka 170,000 to Taka 240,000 depending on model, features and Warranty. To order your Transceiver Module , please contact us by call or WhatsApp (+8801748173213). You can also browse our online shop "
Datacom Technologies (BD)" and order your Transceiver Module directly.
Call/WhatsApp: +8801748173213
Email: sales@datacomtechbd.com or datacomtechnologiesbd@gmail.com
