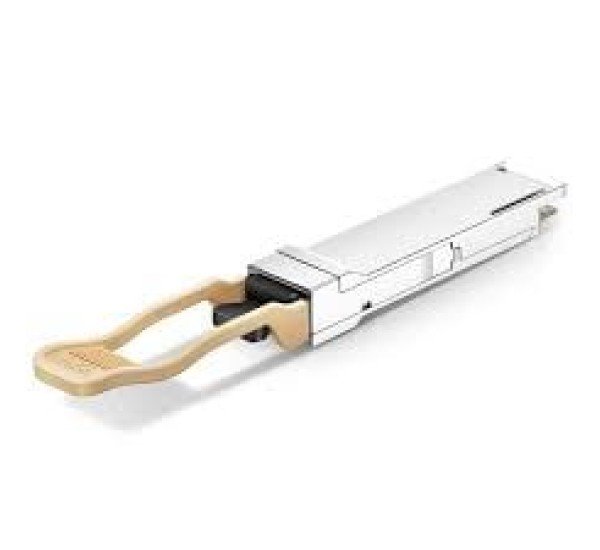

About Alcatel-Lucent Compatible QSFP28 100GBASE-LR4 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module
Product Specification
| Feature |
Value |
| Form Factor |
QSFP28 |
| Data Rate |
100Gb/s |
| Wavelength |
1310nm |
| Distance |
10km |
| Connector |
Duplex LC |
| Fiber Type |
Single-Mode Fiber (SMF) |
| Transmitter Type |
4 x LAN WDM EML |
| Receiver Type |
PIN |
| Power Consumption |
≤3.5W |
| Temperature Range |
0 to 70°C |
| Modulation Format |
NRZ |
| FEC |
Supported |
| DDM/DOM |
Supported |
| Protocols |
IEEE 802.3 100GBASE-LR4, QSFP28 MSA, SFF-8665, SFF-8636 |
Description
The Alcatel-Lucent QSFP-LR4-100G Transceiver Module is a high-performance optical transceiver designed for long-haul transmission over single-mode fiber (SMF). It supports a data rate of 100Gb/s over a distance of up to 10km at a wavelength of 1310nm. The module features a quad small form-factor pluggable (QSFP28) form factor, which allows for high-density port density in networking equipment.
The QSFP-LR4-100G module is compliant with the IEEE 802.3 100GBASE-LR4 standard, which specifies the electrical and optical characteristics of 100Gb/s Ethernet links over SMF. It also supports the QSFP28 Multi-Source Agreement (MSA), which defines the mechanical, electrical, and optical specifications of QSFP28 modules.
The module is equipped with four independent transmit and receive channels, each operating at a data rate of 25.78125 Gbps. This allows for efficient transmission of data over long distances. The module also features built-in digital diagnostic monitoring (DDM) functions, which provide real-time information about the module's operating status.
The QSFP-LR4-100G module is a versatile and reliable optical transceiver that is suitable for a wide range of applications, including data center interconnects, high-performance computing networks, and long-haul telecom networks.
Supported/Comparable Models
Alcatel-Lucent QSFP28-100G-LR4
FS QSFP-LR4-100G
Cisco QSFP-100G-LR4
Juniper QSFP28-100G-LR4
How much does the Alcatel-Lucent QSFP-LR4-100G Transceiver Module cost in Bangladesh?
The price of the Alcatel-Lucent QSFP-LR4-100G Transceiver Module can vary depending on market conditions and purchase volume. Since prices can fluctuate, they might not be listed online. However, contacting Datacom Technologies Bangladesh can get you a competitive quote based on your needs. Visit our website Datacom Technologies (BD) or reach out through
