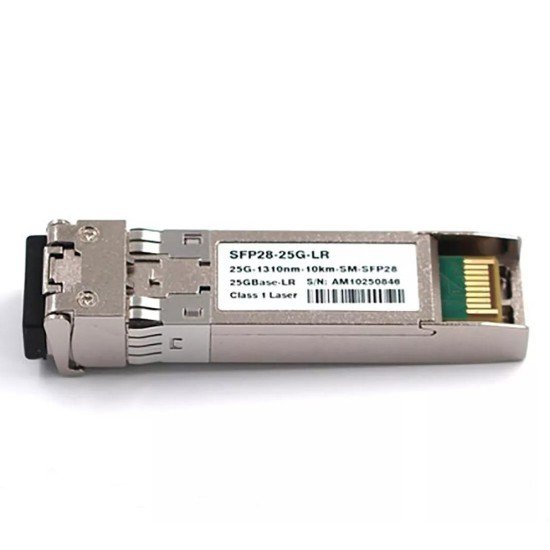

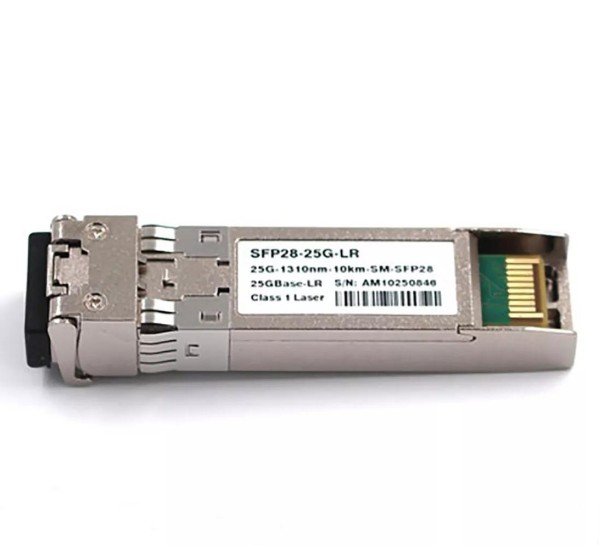

ALCATEL-LUCENT SFP28-25G-LR 25Gbps 10KM Optical Transceiver Module
The ALCATEL-LUCENT SFP28-25G-LR is a 25Gbps long-reach optical transceiver designed for high-speed Ethernet connectivity over single-mode fiber. It supports 25GBASE-LR applications and provides transmission distances of up to 10km.
The module operates at a nominal 1310nm wavelength and uses the compact SFP28 form factor. It is designed for compatible Alcatel-Lucent networking equipment and is suitable for enterprise networks, data center interconnects, aggregation networks, and other high-speed infrastructure.
25GBASE-LR High-Speed Connectivity
The SFP28-25G-LR is designed for 25 Gigabit Ethernet applications requiring extended optical reach. It provides high-bandwidth connectivity between compatible switches, routers, servers, and network aggregation equipment.
The LR optical design provides greater reach than short-range 25G modules, making it suitable for longer connections within enterprise, data center, and telecommunications network environments.
10KM Single-Mode Fiber Transmission
The transceiver is designed for single-mode fiber (SMF) and supports a transmission distance of up to 10km. Actual link distance depends on fiber attenuation, connector losses, dispersion, and the available optical budget.
1310nm Optical Transmission
The module operates at 1310nm, a wavelength commonly used for long-reach single-mode fiber Ethernet applications. This optical configuration is suitable for extended-distance 25Gbps network links.
SFP28 Form Factor
The compact SFP28 form factor provides a high-density, hot-pluggable interface for compatible 25Gbps networking equipment. It allows high-speed optical connectivity to be deployed in switches, routers, servers, and other network platforms supporting SFP28 ports.
Single-Mode Fiber Connectivity
The module is intended for single-mode fiber infrastructure. Before deployment, the host device, fiber type, connector configuration, supported transceiver list, and required transmission distance should be verified.
Technical Specifications
| Specification |
Details |
| Brand |
Alcatel-Lucent |
| Model |
SFP28-25G-LR |
| Product Type |
25GBASE-LR Optical Transceiver |
| Form Factor |
SFP28 |
| Data Rate |
25Gbps |
| Optical Standard |
25GBASE-LR |
| Wavelength |
1310nm |
| Maximum Transmission Distance |
10km |
| Fiber Type |
Single-Mode Fiber (SMF) |
Applications
- 25GBASE-LR Ethernet networks
- Data center interconnects
- Enterprise backbone networks
- Network aggregation
- Telecommunications infrastructure
- 25Gbps switch-to-switch connectivity
- 10km single-mode fiber links
Compatibility
The ALCATEL-LUCENT SFP28-25G-LR is intended for compatible Alcatel-Lucent networking equipment supporting 25GBASE-LR SFP28 optical transceivers.
Before installation, verify the host device's supported SFP28 transceiver list, optical port requirements, fiber type, connector configuration, and required transmission distance. The complete optical link should also be evaluated for attenuation, dispersion, connector losses, and available optical budget.
Buy Alcatel-Lucent SFP28-25G-LR in Bangladesh
Datacom Technologies (BD) supplies Alcatel-Lucent optical transceivers, enterprise networking equipment, fiber connectivity products, and data center hardware in Bangladesh. The SFP28-25G-LR is suitable for compatible 25Gbps networking environments requiring long-reach single-mode fiber connectivity.
For enterprise, ISP, telecom, data center, and project requirements, customers can request a quotation based on the required optical module, host equipment, fiber type, connector, and transmission distance.
