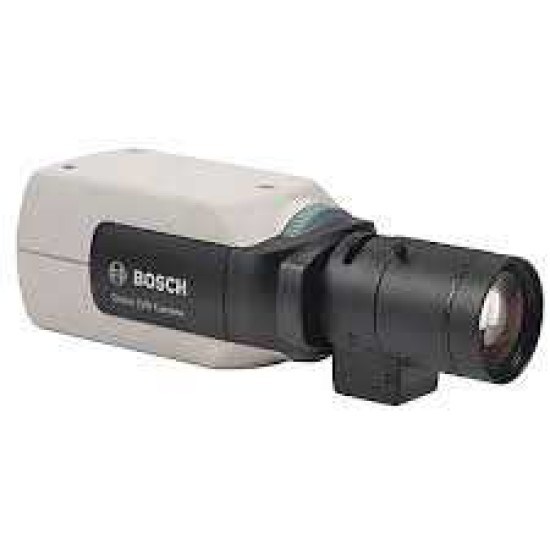

Bosch LTC 0465 – Dinion Day/Night Analog Camera | Professional CCTV Surveillance Camera
The Bosch LTC 0465 Dinion Day/Night Analog Camera is a professional analog CCTV surveillance camera designed for reliable security monitoring in commercial and industrial environments. As part of the well-known Bosch Dinion series, this camera delivers high-quality imaging with advanced features such as mechanical IR cut filter switching, Bilinx communication, and LensWizard auto lens detection.
Equipped with a 1/3-inch CCD image sensor and 540 TVL resolution, the camera provides clear video footage with excellent color accuracy during the day and enhanced sensitivity in low-light conditions at night. Its intelligent day/night functionality automatically switches between color and monochrome modes depending on lighting conditions.
SPECIFICATION TABLE
| Feature | Details |
|---|---|
| Product Name | Bosch LTC 0465 Dinion Day/Night Analog Camera |
| Brand | Bosch Security Systems |
| Camera Type | Analog CCTV Box Camera |
| Image Sensor | 1/3-inch Interline CCD |
| Resolution | 540 TV Lines |
| Active Pixels | 768 × 494 (NTSC) / 752 × 582 (PAL) |
| Lens Mount | CS-Mount (C-Mount compatible with adapter) |
| Minimum Illumination | 0.30 lux (Color) / 0.012 lux (Mono) |
| Signal-to-Noise Ratio | > 50 dB |
| Video Output | Composite Video (1 Vpp, 75 Ohm, BNC) |
| Power Supply | 12–28 VAC or 11–36 VDC |
| Power Consumption | Approx. 4 W |
| Operating Temperature | -20°C to +50°C |
| Application | Professional CCTV surveillance systems |
Bosch LTC 0465 Dinion Day/Night Camera Description
The Bosch LTC 0465 Dinion Day/Night Analog Camera is engineered to deliver dependable performance for professional security surveillance applications. Featuring 10-bit digital signal processing, the camera produces sharp and stable images with improved dynamic range and enhanced detail in varying lighting conditions.
The built-in mechanical IR cut filter automatically switches between day (color) and night (monochrome) modes, ensuring optimal sensitivity and visibility in low-light environments. This allows the camera to capture clear footage even in challenging lighting scenarios such as night monitoring or indoor surveillance with minimal lighting.
Additionally, the camera supports Bilinx technology, enabling remote configuration, firmware updates, and status monitoring through the same coaxial video cable used for signal transmission. This reduces installation complexity and simplifies maintenance in large surveillance networks.
The Bosch LTC 0465 camera is widely used in offices, shopping centers, educational institutions, museums, and industrial facilities, making it a dependable choice for professional CCTV deployments.
KEY FEATURES
540 TVL high-resolution analog CCTV camera
1/3-inch CCD image sensor with 10-bit DSP processing
Automatic Day/Night switching with mechanical IR filter
Bilinx communication for remote camera configuration
LensWizard technology for automatic lens detection
Supports auto white balance and auto gain control
Backlight compensation (BLC) for improved image clarity
Reliable performance for professional security systems
WHERE IT CAN BE USED
Commercial CCTV surveillance systems
Offices and corporate buildings
Shopping malls and retail stores
Museums and art galleries
Schools and universities
Industrial facilities and warehouses
Public buildings and transportation areas
