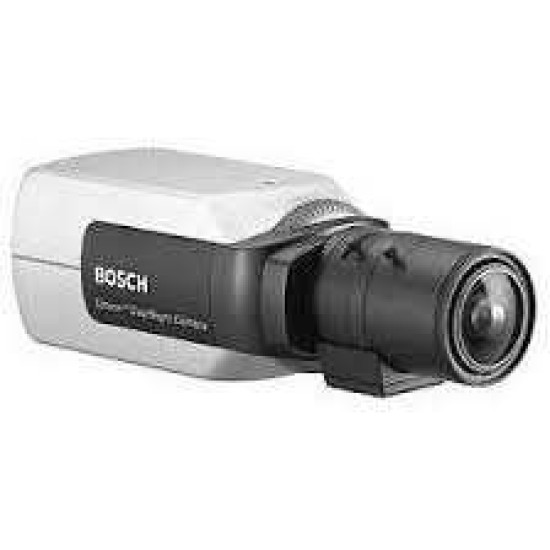

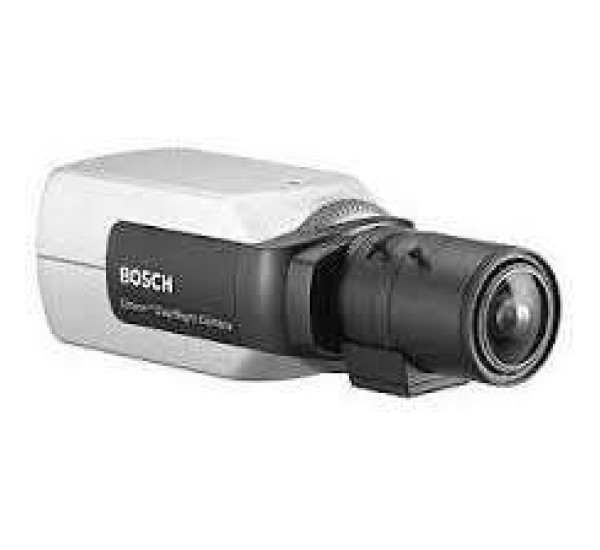

Bosch LTC 0495 – DinionXF Day/Night Camera | Professional Analog CCTV Surveillance Camera
The Bosch LTC 0495 DinionXF Day/Night Camera is a professional high-performance analog CCTV camera designed for demanding surveillance environments. Part of the trusted Bosch DinionXF series, this camera delivers outstanding image quality with advanced digital processing, wide dynamic range, and reliable day/night switching.
Featuring a 1/3-inch CCD image sensor with 540 TVL resolution, the camera produces sharp and detailed video for security monitoring. With technologies such as XF-Dynamic range enhancement, SensUp low-light sensitivity, and Bilinx communication, the LTC 0495 provides superior performance in challenging lighting conditions and allows remote configuration through the video cable.
SPECIFICATION TABLE
| Feature | Details |
|---|
| Product Name | Bosch LTC 0495 DinionXF Day/Night Camera |
| Brand | Bosch Security Systems |
| Camera Type | Analog CCTV Box Camera |
| Image Sensor | 1/3-inch Interline CCD |
| Resolution | 540 TV Lines |
| Active Pixels | 768 × 492 (NTSC) / 752 × 582 (PAL) |
| Minimum Illumination | 0.24 lux / 0.038 lux (Monochrome) |
| Minimum Illumination with SensUp | 0.024 lux / 0.0038 lux |
| Signal-to-Noise Ratio | > 50 dB |
| Lens Mount | C / CS Mount |
| Video Output | Composite Video 1 Vpp, 75Ω |
| Power Supply | 12–28 VAC or 11–39 VDC |
| Power Consumption | Approx. 4 W |
| Operating Temperature | -20°C to +50°C |
| Application | Professional CCTV surveillance |
Bosch LTC 0495 DinionXF Day/Night Camera Description
The Bosch LTC 0495 DinionXF Day/Night Camera is designed to provide reliable surveillance performance in environments where lighting conditions frequently change. The camera uses 15-bit digital signal processing (DSP) and XF-Dynamic technology to enhance image clarity by capturing details in both bright and dark areas simultaneously.
A mechanically switching IR filter allows the camera to automatically switch between color mode during the day and monochrome mode at night, improving sensitivity and ensuring clear video even in very low-light conditions.
The camera also features SensUp technology, which increases the CCD integration time up to 10× to significantly improve low-light performance when illumination is limited, such as in parking areas or warehouses.
Another key feature is Bilinx bidirectional communication, enabling installers to remotely monitor camera status, adjust settings, and perform configuration directly through the coaxial video cable without additional wiring.
With durable construction and advanced imaging capabilities, the Bosch LTC 0495 camera is widely used in banks, retail stores, industrial facilities, transportation hubs, and corporate buildings.
KEY FEATURES
540 TVL high-resolution analog CCTV camera
1/3-inch CCD image sensor
Automatic Day/Night switching with mechanical IR filter
XF-Dynamic wide dynamic range technology
SensUp low-light enhancement up to 10×
Bilinx coaxial communication for remote setup
Backlight compensation and dynamic noise reduction
Compatible with C/CS mount lenses
WHERE IT CAN BE USED
Commercial CCTV surveillance systems
Banks and financial institutions
Offices and corporate facilities
Retail stores and shopping malls
Warehouses and factories
Parking areas and transportation hubs
Educational institutions and public buildings
