About Broadcom N1100G 1 x 100GbE OCP 3.0 Adapter
Datacom Technologies BD is a leading provider of IT solutions and services in Bangladesh. We offer a wide range of products and services, including networking equipment, servers, storage, and software. Our team of experts is dedicated to helping our customers find the right solutions for their business needs. We are committed to providing excellent customer service and support.
Product Specification
| Feature |
Specification |
| Form Factor |
OCP 3.0 |
| Host Interface |
PCIe 4.0 x16 |
| Ethernet Interface |
1 x 100GbE QSFP56 |
| Supported Speeds |
100GbE, 50GbE, 25GbE, 10GbE |
| Data Rate |
Up to 100Gbps full-duplex |
| Flow Control |
IEEE 802.3x |
| Jumbo Frames |
Up to 9000 bytes |
| RoCE v2 Support |
Yes |
| iSCSI Offload |
Yes |
| TruFlow Engine |
Intelligent flow processing for increased VM density and accelerated vSwitch processing |
| On-chip Tunneling Protocol Processing |
Geneve, VXLAN, and NVGRE for up to 5X throughput increase and up to 90% lower CPU utilization |
| NVMe-oF Support |
Yes |
| Operating Systems |
CentOS, Debian, Microsoft Windows, Oracle Linux, Oracle Solaris, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu, VMware, VMware ESX, VMware vSphere, Windows Hyper-V, Windows Server |
Description
The

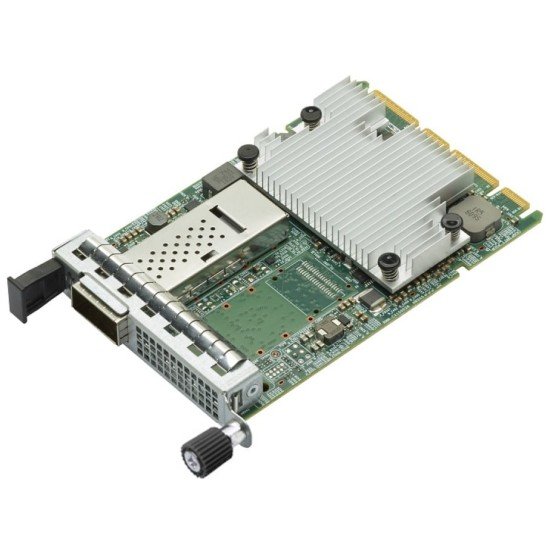

Broadcom N1100G 1 x 100GbE OCP 3.0 Adapter is a high-performance network adapter designed for enterprise and cloud-scale networking and storage applications.
It is based on Broadcom's scalable 10/25/40/50/100/200G Ethernet controller architecture and features a single-port QSFP56 interface that supports line-rate, full-duplex throughput. The adapter is designed to provide high bandwidth and low latency for demanding applications such as high-performance computing, telco, machine learning, storage disaggregation, and data analytics.
The N1100G supports a variety of Ethernet speeds, including 100GbE, 50GbE, 25GbE, and 10GbE. It also supports Jumbo Frames of up to 9000 bytes and features a TruFlow engine for intelligent flow processing to increase VM density and accelerate vSwitch processing. The adapter also supports on-chip tunneling protocol processing for Geneve, VXLAN, and NVGRE, which can provide up to a 5X throughput increase and up to 90% lower CPU utilization compared to software-based solutions.
The N1100G is also compatible with a variety of operating systems, including CentOS, Debian, Microsoft Windows, Oracle Linux, Oracle Solaris, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu, VMware, VMware ESX, VMware vSphere, Windows Hyper-V, and Windows Server. It is also compatible with a variety of network protocols, including TCP/IP, UDP, IPsec, and iSCSI.
Supported/Comparable Models
The following are some supported and comparable models to the Broadcom N1100G:
Broadcom N1000G 1 x 100GbE OCP 3.0 Adapter
Mellanox ConnectX-6 Dx 100GbE OCP 3.0 Adapter
Intel Ethernet 700 Series 100GbE OCP 3.0 Adapter
