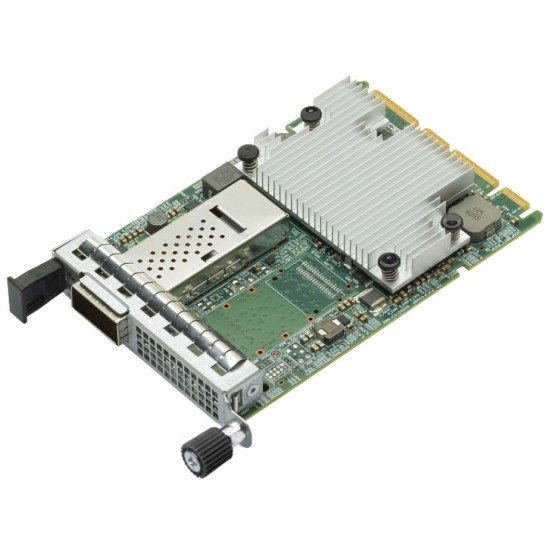

About Broadcom N1200G 1 x 200GbE OCP 3.0 Adapter
Broadcom N1200G 1 x 200GbE Adapter - Datacom Technologies BD is a leading provider of IT solutions and services in Bangladesh. We offer a wide range of products and services, including networking equipment, servers, storage, and software. We are committed to providing our customers with the highest quality products and services at the most competitive prices. We also offer a variety of value-added services, such as installation, configuration, and maintenance.
Broadcom N1200G 1 x 200GbE Adapter Specification:
| Feature |
Value |
| Form Factor |
OCP 3.0 |
| PCIe Interface |
PCIe 4.0 x16 |
| Connector |
QSFP56 |
| Data Rates |
200GbE, 100GbE, 50GbE, 40GbE, 25GbE, 10GbE |
| Optical Modules |
QSFP56, QSFP28, QSFP+ |
| Copper Direct-Attach Cables |
Supported |
| Flow Control |
IEEE 802.3x |
| Jumbo Frames |
Up to 9000 bytes |
| Wake-on-LAN (WOL) |
Supported |
| Remote Wake-up |
Supported |
| Network Offload Engines |
TCP/IP, UDP, IPv4/IPv6, VLAN, RSS, LSO, TSO, Gro, Nagle |
| Security Features |
BroadSAFE, SSL/TLS, IPSec |
| Temperature Range |
0°C to 55°C |
| Humidity Range |
5% to 95% (non-condensing) |
N1200G 1 x 200Gb Description:
The
Broadcom N1200G is a high-performance, single-port 200GbE Ethernet adapter designed to meet the demanding requirements of modern data centers. It offers exceptional bandwidth, low latency, and advanced features to enable efficient and scalable network connectivity.
Built on Broadcom's scalable 10/25/40/50/100/200G Ethernet controller architecture, the N1200G delivers unmatched performance and flexibility. It supports a wide range of data rates, including 200GbE, 100GbE, 50GbE, 40GbE, 25GbE, and 10GbE, making it suitable for various applications such as high-performance computing, cloud computing, and storage disaggregation.
The adapter features a single QSFP56 connector, which can accommodate QSFP56, QSFP28, or QSFP+ optical modules, providing flexibility in network deployment. It also supports copper direct-attach cables for shorter distances, simplifying installation and reducing costs.
The N1200G incorporates a variety of hardware acceleration engines to offload CPU-intensive tasks, such as TCP/IP processing, VLAN tagging, and RSS. This improves overall system performance and reduces CPU utilization, allowing for more efficient use of server resources.
In terms of security, the adapter offers BroadSAFE technology, which provides robust protection against network threats. It supports SSL/TLS and IPSec encryption to safeguard sensitive data in transit.
With its exceptional performance, versatility, and security features, the Broadcom N1200G is an ideal choice for organizations seeking to build high-performance, scalable, and secure network infrastructures.
Supported/Comparable Models
Broadcom N2200G (2x 200GbE)
Broadcom P1200G (1x 200GbE)
Broadcom P2100G (2x 100GbE)
