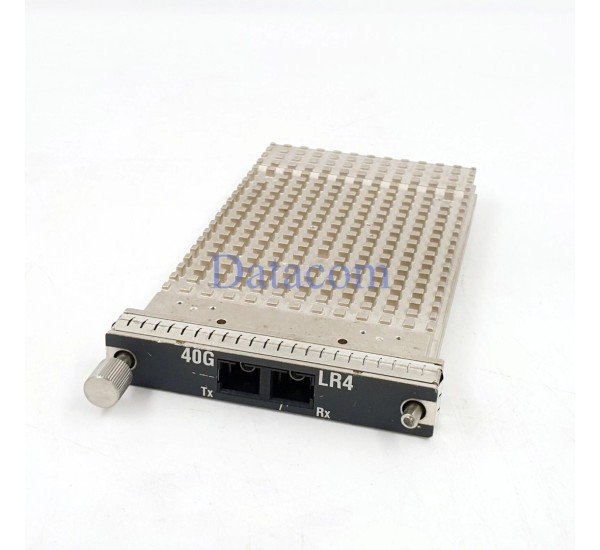

Cisco CFP-40G-LR4 Transceiver Module – 40GBASE-LR4 / OTU3 1310nm 10km
The Cisco CFP-40G-LR4 is a multirate CFP optical transceiver designed for high-capacity 40 Gigabit Ethernet and optical transport applications. It supports both IEEE 40GBASE-LR4 and OTU3 C4S1-2D1 standards, providing flexible 40G connectivity over single-mode fiber.
The module operates using four CWDM optical wavelengths centered at 1271nm, 1291nm, 1311nm, and 1331nm. The four wavelengths are multiplexed and demultiplexed within the module, enabling a single duplex fiber pair to carry the 40Gbps signal over distances of up to 10km.
Cisco CFP-40G-LR4 Key Features
- Multirate 40GBASE-LR4 and OTU3 C4S1-2D1 CFP transceiver
- 40Gbps optical networking capacity
- Four CWDM optical wavelengths
- 1271nm, 1291nm, 1311nm, and 1331nm wavelength channels
- G.652 single-mode fiber support
- Duplex SC/PC optical connector
- Up to 10km transmission distance
- Minimum cabling distance of 2 meters
- Digital Optical Monitoring (DOM) support
- CFP form factor for compatible Cisco 40GbE platforms
Cisco CFP-40G-LR4 Technical Specifications
| Specification |
Details |
| Brand |
Cisco |
| Model |
CFP-40G-LR4 |
| Product Type |
40G CFP Optical Transceiver |
| Ethernet Standard |
IEEE 40GBASE-LR4 |
| Optical Transport Standard |
OTU3 C4S1-2D1 |
| Data Rate |
40Gbps |
| Optical Technology |
Four-lane CWDM |
| Optical Wavelengths |
1271nm, 1291nm, 1311nm, 1331nm |
| Nominal Optical Window |
1310nm |
| Fiber Type |
Single-Mode Fiber (SMF) |
| Fiber Specification |
G.652 |
| Connector |
Duplex SC/PC |
| Maximum Reach |
Up to 10km |
| Minimum Cable Distance |
2m |
| Transmit Power |
-7 to +2.3 dBm per lane |
| Receive Power |
-13.7 to +2.3 dBm per lane |
| Operating Temperature |
0°C to +70°C |
| Storage Temperature |
-40°C to +85°C |
| Optical Monitoring |
Digital Optical Monitoring (DOM) |
| Form Factor |
CFP |
Applications
- 40 Gigabit Ethernet long-reach networking
- Optical transport and OTN networks
- Service-provider network infrastructure
- Metro and regional optical networks
- Enterprise core and aggregation networks
- Data center interconnects
- Cisco 40GbE CFP-based switching and routing platforms
Compatibility
The Cisco CFP-40G-LR4 is designed for compatible Cisco 40 Gigabit Ethernet CFP ports and optical networking platforms. Cisco documentation identifies the module for compatible switches, routers, and optical transport equipment supporting 40GBASE-LR4 and OTU3 interfaces.
The module uses a duplex SC/PC optical interface and G.652 single-mode fiber. Cisco specifies that PC or UPC polished connectors are supported, while APC polished connectors are not supported for these CFP optical interfaces.
Important: The CFP-40G-LR4 should not be confused with the Cisco QSFP-40G-LR4 or QSFP-40G-LR4-S. The requested product is a full-size CFP module with duplex SC connectivity and multirate 40GbE/OTU3 support.
Cisco CFP-40G-LR4 Price in Bangladesh
Looking for the Cisco CFP-40G-LR4 price in Bangladesh? Pricing can vary depending on product condition, sourcing, warranty, and availability. Contact Datacom Technologies (BD) for current pricing and procurement options.
Why Choose Cisco CFP-40G-LR4?
- 40Gbps long-reach optical connectivity
- Up to 10km over G.652 single-mode fiber
- Supports both 40GBASE-LR4 and OTU3 C4S1-2D1
- Four CWDM wavelengths integrated into one CFP module
- Duplex SC interface for compatible optical infrastructure
- Suitable for carrier, enterprise, metro, and optical transport networks
Buy Cisco CFP-40G-LR4 in Bangladesh
Datacom Technologies (BD) supplies Cisco networking and optical networking equipment in Bangladesh. For the Cisco CFP-40G-LR4, including price, availability, compatibility verification, and procurement support, contact our sales team.
Email: sales@datacom.com.bd
Note: Verify the exact Cisco part number, host platform, CFP port compatibility, software support, fiber type, connector polish, and optical link requirements before ordering.
