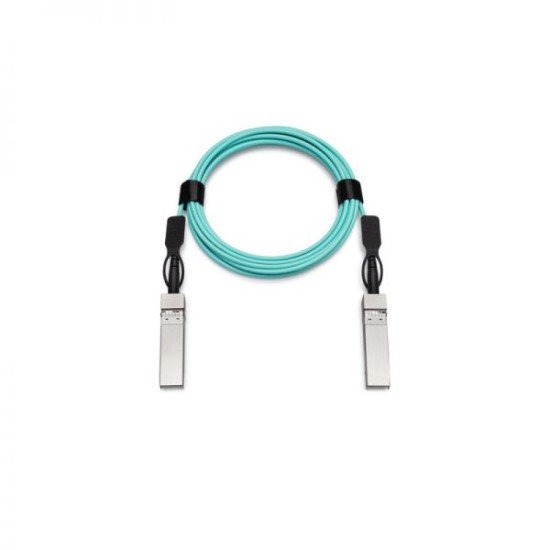

About Cisco SFP-25G-AOC3M= Transceiver Modules
Product Description
| Specification |
Description |
| Product Name |
Cisco SFP-25G-AOC3M |
| Type |
25 Gigabit Ethernet Active Optical Cable (AOC) |
| Data Rate |
25 Gbps |
| Connector Type |
SFP28 (Small Form-Factor Pluggable) |
| Cable Length |
3 meters (9.8 feet) |
| Maximum Power Consumption |
1 watt |
| Operating Temperature |
0 to 70°C (32 to 158°F) |
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Feature |
Description |
| Product Code |
SFP-25G-AOC3M |
| Description |
Cisco 25GBASE-AOC SFP28 Active Optical Cable |
| Cable Type |
Active Optical Cable assembly |
| Cable Distance |
3 meters |
| Max Power Consumption (W) |
1 |
| Pull Tab Color |
Orange |
| Specification |
Description |
| Cable Type |
Active Optical Cable assembly |
| Cable Distance |
3m |
| Max Power Consumption (W) |
1 |
| Pull Tab Color |
Orange |
| Commercial temperature |
0 to 70°C (32 to 158°F) |
| Storage temperature |
-40 to 85°C (-40 to 185°F) |
| Standards |
- SFF-8402: SFP+ 28 Gb/s 1x Pluggable Transceiver Solution (SFP28) - Rev 1.0 March 30, 2014
- SFF-8472: Diagnostic Monitoring Interface for Optical Transceivers - Rev 12 August 29, 2014
- IEEE 802.3™- 2015 IEEE Standard for Ethernet
- IEEE P802.3by™- 2016 Amendment 2: Media Access Control Parameters, Physical Layers, and Management Parameters for 25 Gb/s Operation
- IEEE P802.3cc™ - 2017 Amendment 11: Physical Layer and Management Parameters for Serial 25 Gb/s Ethernet Operation Over Single-Mode Fiber
- RoHS 6 |
| Safety |
- Laser Class 1 21CFR-1040 LN#50 7/2001
- Laser Class 1 IEC60825-1
- Cable jacket of SFP copper modules is UL E116441 Compliant
- SFP copper cables are ELV Compliant |
Description:
The Cisco SFP-25G-AOC3M is a high-speed, low-power consumption transceiver module designed for short-range data transmission in data centers, high-performance computing clusters, and other networking environments. It utilizes Active Optical Cable (AOC) technology, which combines electrical and optical components within the cable itself. This eliminates the need for separate transceiver modules and simplifies installation. The SFP-25G-AOC3M supports data rates of up to 25 Gigabit Ethernet (GbE) and has a maximum reach of 3 meters. It is a cost-effective solution for connecting network devices within a rack or across adjacent racks.
