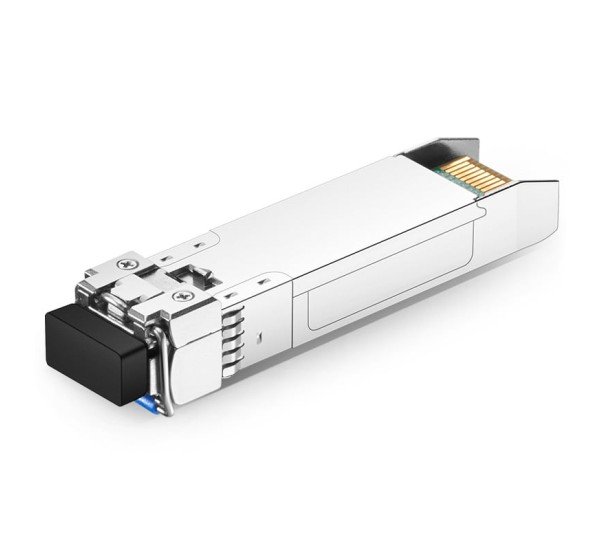

Extreme Networks 25G-LR-SFP10KM 25Gbps 10KM SFP28 Transceiver Module
The Extreme Networks 25G-LR-SFP10KM is a 25Gbps SFP28 optical transceiver designed for long-reach Ethernet connectivity over single-mode fiber. It supports 25GBASE-LR applications and provides transmission distances of up to 10km.
The module uses a compact SFP28 form factor and is designed for compatible Extreme Networks networking equipment requiring reliable 25Gbps optical connectivity. It is suitable for data center, enterprise, aggregation, and backbone network applications.
25GBASE-LR Long-Reach Connectivity
The transceiver is designed for 25 Gigabit Ethernet links where extended fiber reach is required. Its 10km-class optical capability makes it suitable for connections between switches, routers, servers, and aggregation equipment across longer network paths.
The module is intended for single-mode fiber infrastructure and provides the optical characteristics required for long-reach 25GbE connectivity.
10KM Single-Mode Fiber Transmission
The 25G-LR-SFP10KM is designed for single-mode fiber (SMF) and supports a maximum transmission distance of 10km. The actual achievable distance depends on fiber attenuation, connector losses, optical budget, and the specifications of the connected equipment.
1310nm Optical Transmission
The module operates in the 1310nm wavelength band, a commonly used wavelength range for long-reach single-mode fiber Ethernet links.
SFP28 and Duplex LC Interface
The compact SFP28 form factor allows the transceiver to be installed in compatible 25Gbps optical ports. A duplex LC optical interface provides separate transmit and receive paths over the single-mode fiber connection.
Digital Optical Monitoring
The transceiver supports Digital Optical Monitoring (DOM), allowing compatible host equipment to access supported optical operating parameters for monitoring and network maintenance.
Technical Specifications
| Specification | Details |
| Brand | Extreme Networks |
| Part Number | 25G-LR-SFP10KM |
| Product Type | 25GBASE-LR SFP28 Optical Transceiver |
| Form Factor | SFP28 |
| Data Rate | 25Gbps |
| Optical Standard | 25GBASE-LR |
| Maximum Distance | 10km |
| Wavelength | 1310nm |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Digital Optical Monitoring | Supported |
| Operating Temperature | 0°C to 70°C |
| Compliance | TAA Compliant |
Applications
- 25GBASE-LR Ethernet networks
- Data center interconnects
- Enterprise backbone networks
- Network aggregation
- Switch-to-switch connectivity
- Telecommunications infrastructure
- 10km single-mode fiber links
Compatibility
The Extreme Networks 25G-LR-SFP10KM is designed as a compatible SFP28 optical transceiver for networking equipment supporting 25GBASE-LR connectivity. The exact host device, port configuration, transceiver coding, firmware requirements, and supported optic list should be verified before installation.
For a 10km deployment, the complete optical link should also be evaluated for fiber attenuation, connector losses, and available optical budget.
Buy Extreme Networks 25G-LR-SFP10KM in Bangladesh
Datacom Technologies (BD) supplies Extreme Networks-compatible optical transceivers, enterprise networking equipment, fiber connectivity products, and telecommunications hardware in Bangladesh. The 25G-LR-SFP10KM is suitable for compatible 25Gbps network environments requiring long-reach single-mode fiber connectivity.
For enterprise, ISP, telecom, data center, and project requirements, customers can contact Datacom Technologies (BD) for product selection assistance, technical consultation, and professional networking equipment supply.
