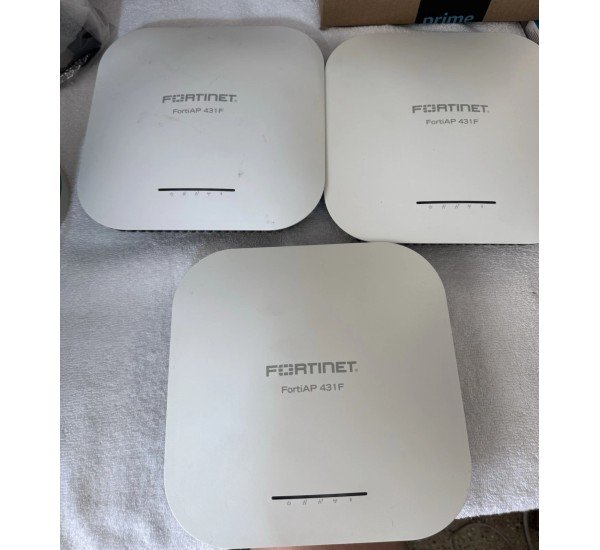

Fortinet FAP-431F-A FortiAP Wi-Fi 6 Wireless Access Point – Tri-Radio 4x4 MIMO, 2.5GbE

The Fortinet FAP-431F-A is an enterprise-class indoor wireless access point designed to deliver high-performance Wi-Fi 6 (IEEE 802.11ax) connectivity for business, campus, branch, and high-density indoor environments.

The FortiAP 431F features three radios plus an integrated BLE radio, five internal antennas, 4x4 MIMO capability, OFDMA, and high-speed Ethernet connectivity. Its primary network interface supports 100/1000/2500BASE-T, providing a multi-gigabit wired uplink for demanding wireless deployments.

Fortinet FAP-431F-A Key Features

• Enterprise-class Wi-Fi 6 (802.11ax) indoor access point
• Three radios plus integrated Bluetooth Low Energy radio
• 4x4 MIMO capability on the client-serving radios
• Five internal PIFA antennas plus dedicated BLE antenna
• 1x 100/1000/2500BASE-T RJ45 port
• 1x 10/100/1000BASE-T RJ45 port
• IEEE 802.3at PoE support
• OFDMA technology for improved Wi-Fi 6 efficiency
• Integrated wireless monitoring, WIDS/WIPS and spectrum analysis capabilities

Technical Specifications

Wi-Fi 6 Performance

The Fortinet FAP-431F-A uses IEEE 802.11ax Wi-Fi 6 technology to improve wireless efficiency in environments with many connected clients. Wi-Fi 6 features such as OFDMA enable more efficient sharing of radio resources between multiple client devices.

The 431F provides 4x4 MIMO radio capability and supports 20MHz, 40MHz and 80MHz channel widths, with 160MHz operation supported in the specified 2x2 configuration on the 5GHz radio.

Tri-Radio Architecture

The FAP-431F provides three radios plus BLE. It can provide simultaneous wireless access across the 2.4GHz and 5GHz bands while maintaining dedicated wireless monitoring capabilities. This architecture can help enterprise deployments perform wireless security monitoring without sacrificing normal client connectivity.

High-Speed Ethernet Connectivity

For wired uplink connectivity, the FAP-431F provides one 100/1000/2500BASE-T RJ45 port and one additional Gigabit Ethernet RJ45 port. The 2.5GbE interface is suitable for Wi-Fi 6 deployments where a conventional 1GbE uplink could become a network bottleneck.

PoE and Power Requirements

The Fortinet FAP-431F supports IEEE 802.3at PoE. Fortinet specifies a maximum power consumption of approximately 24.5W. The available functionality can depend on the PoE power mode and the power delivered by the connected switch or injector.

Wireless Security and Monitoring

The FortiAP 431F supports enterprise wireless security features including WPA, WPA2 and WPA3 authentication options with 802.1X or preshared keys. Fortinet also provides wireless monitoring functions such as rogue scanning, WIDS/WIPS capabilities, packet sniffing and spectrum analysis.

FortiGate and FortiEdge Cloud Management

FortiAP access points can be centrally managed through the wireless controller integrated into compatible FortiGate security appliances or through FortiEdge Cloud. This allows wireless access policies and security controls to be managed as part of the broader Fortinet Security Fabric.

Applications

• Enterprise Wi-Fi 6 deployments
• Corporate office wireless networks
• Campus and educational networks
• Branch office wireless connectivity
• High-performance indoor wireless access
• High-density client environments
• Wireless security monitoring and intrusion prevention
• BLE beaconing and location-aware applications

Compatibility

The Fortinet FAP-431F-A is designed for FortiAP deployments managed by compatible Fortinet wireless management platforms, including FortiGate and FortiEdge Cloud. Before purchase, verify the required FortiOS or cloud-management version and licensing requirements for the intended deployment.

For PoE deployment, the connected network switch or PoE injector should provide the appropriate IEEE 802.3at power budget required by the access point.

Fortinet FAP-431F-A Price in Bangladesh

For the latest Fortinet FAP-431F-A price in Bangladesh, product condition, licensing requirements, and availability, contact Datacom Technologies (BD). Pricing may vary depending on hardware configuration, licensing, sourcing, and availability.

Why Choose Fortinet FAP-431F-A?

• Enterprise-class Fortinet Wi-Fi 6 access point
• Tri-radio architecture with integrated BLE
• 4x4 MIMO wireless capability
• 2.5GbE high-speed wired uplink
• IEEE 802.3at PoE support
• Integrated wireless security monitoring capabilities
• Centralized FortiGate and FortiEdge Cloud management options
• Suitable for demanding indoor enterprise deployments

Buy Fortinet FAP-431F-A in Bangladesh

Datacom Technologies (BD) supplies Fortinet FortiAP wireless access points, FortiGate security appliances, networking equipment, and enterprise wireless solutions in Bangladesh.

Email: sales@datacom.com.bd

Contact Datacom Technologies (BD) for Fortinet FAP-431F-A pricing, compatibility verification, licensing requirements, and current availability.
