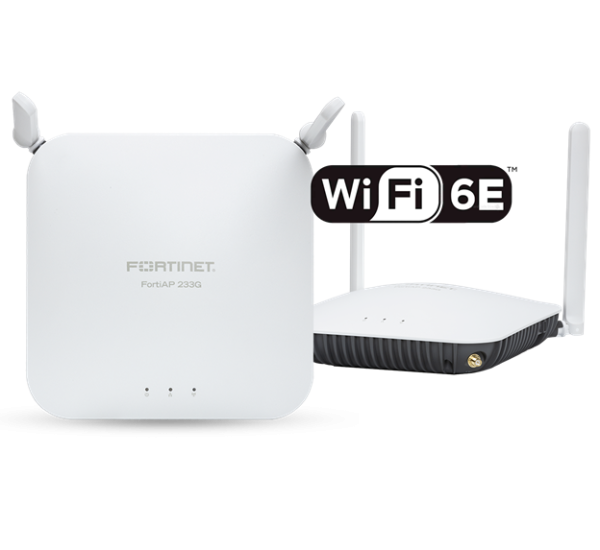

Fortinet FortiAP 233G Wi-Fi 6E Indoor Wireless Access Point – Tri-Radio 2x2 MIMO, 2.5GbE

The Fortinet FortiAP 233G is an enterprise-class indoor wireless access point designed for modern Wi-Fi 6E deployments. Based on IEEE 802.11ax technology, it provides access to the 2.4GHz, 5GHz, and 6GHz wireless bands, allowing organizations to deploy high-performance wireless networks with additional 6GHz spectrum.

The FortiAP 233G features a tri-radio architecture with 2x2 MU-MIMO, external antennas, integrated BLE/Zigbee capabilities, and multi-gigabit Ethernet connectivity. Its 2.5GbE interface provides a high-speed wired uplink, while the additional Gigabit Ethernet port provides flexible deployment options.

Fortinet FortiAP 233G Key Features

• Enterprise Wi-Fi 6E indoor wireless access point
• IEEE 802.11ax with 2.4GHz, 5GHz and 6GHz support
• Three radios plus integrated BLE/Zigbee capability
• 2x2 MU-MIMO wireless architecture
• External RP-SMA antenna interfaces
• 2.5 Gigabit Ethernet uplink
• Additional Gigabit Ethernet interface
• OFDMA and BSS Coloring support
• Wireless monitoring and WIDS/WIPS capabilities
• Power over Ethernet support

Technical Specifications

Wi-Fi 6E Performance

The FortiAP 233G uses Wi-Fi 6E, extending IEEE 802.11ax wireless networking into the 6GHz spectrum. This additional spectrum can provide more clean channels and help reduce congestion for compatible Wi-Fi 6E client devices.

The AP supports 2x2 MU-MIMO and OFDMA to improve wireless resource utilization when serving multiple compatible clients. Actual throughput depends on client capability, channel width, RF conditions, regulatory restrictions, and network configuration.

Tri-Radio Architecture

The FortiAP 233G incorporates three radios plus an integrated BLE radio. The tri-radio architecture supports simultaneous wireless services across the available bands and can also be configured for wireless monitoring and scanning functions.

Fortinet identifies the 233G as an indoor Wi-Fi 6E access point with 2x2 MU-MIMO. Its third radio provides additional flexibility for 6GHz operation and wireless scanning depending on the deployment configuration.

External Antenna Design

Unlike internal-antenna FortiAP models, the FortiAP 233G uses external antennas connected through RP-SMA interfaces. This allows the wireless design to be adapted to the coverage requirements of the installation using compatible Fortinet antenna options.

2.5GbE Network Connectivity

The FortiAP 233G provides one 100/1000/2500BASE-T Ethernet interface for high-speed network connectivity and one additional Gigabit Ethernet interface. The 2.5GbE uplink is suitable for Wi-Fi 6E deployments where aggregated wireless traffic can exceed the practical capacity of a conventional 1GbE uplink.

PoE and Deployment

The FortiAP 233G supports IEEE 802.3at Power over Ethernet. This allows the access point to receive power and network connectivity through the Ethernet infrastructure when connected to a suitable PoE switch or injector.

Wireless Security and Monitoring

The FortiAP 233G supports enterprise wireless security and monitoring capabilities within the Fortinet wireless ecosystem. Features include wireless intrusion detection and prevention capabilities, rogue access-point scanning, application control, and web filtering depending on the management and security configuration.

BLE and IoT Connectivity

Integrated Bluetooth Low Energy and Zigbee capabilities allow the FortiAP 233G to support selected IoT, beacon, asset-tracking, and location-aware applications alongside conventional Wi-Fi connectivity.

Fortinet Centralized Management

FortiAP access points can be centrally managed through compatible Fortinet platforms, including the WLAN controller integrated into FortiGate security appliances and FortiEdge Cloud. This enables centralized configuration, authentication, wireless security, monitoring, and policy management.

Applications

• Enterprise Wi-Fi 6E indoor deployments
• Corporate office wireless networks
• Campus and educational networks
• High-density indoor wireless environments
• 6GHz wireless deployments
• Flexible external-antenna WLAN installations
• Wireless security monitoring
• BLE and IoT-enabled enterprise networks
• Multi-gigabit wireless access networks

Compatibility

The FortiAP 233G is part of the Fortinet Wi-Fi 6E FortiAP family and is supported by compatible Fortinet management software. Fortinet's current compatibility documentation lists the FAP-233G with FortiOS 8.0.0 and later compatibility information. Verify the exact FortiOS/FortiAP release and licensing requirements before deployment.

The 2.5GbE uplink should be connected to a compatible multi-gigabit switch or network device, and the PoE infrastructure should provide the required IEEE 802.3at power budget.

6GHz Regulatory Considerations

6GHz Wi-Fi operation is subject to country-specific regulatory requirements. Available channels, transmit power, and operating modes can vary by regulatory domain. Confirm the applicable Bangladesh regulatory requirements and the correct regional FortiAP hardware SKU before deployment.

Fortinet FortiAP 233G Price in Bangladesh

For the latest Fortinet FortiAP 233G price in Bangladesh, product condition, licensing requirements, compatible antennas, and availability, contact Datacom Technologies (BD). Pricing may vary depending on hardware sourcing, antenna selection, licensing, and availability.

Why Choose Fortinet FortiAP 233G?

• Modern enterprise Wi-Fi 6E technology
• 2.4GHz, 5GHz and 6GHz wireless support
• Tri-radio architecture with integrated BLE
• 2x2 MU-MIMO capability
• Flexible external RP-SMA antenna design
• 2.5GbE high-speed Ethernet uplink
• OFDMA and BSS Coloring support
• Wireless monitoring and security capabilities
• BLE and Zigbee support for IoT applications
• Fortinet centralized wireless management

Buy Fortinet FortiAP 233G in Bangladesh

Datacom Technologies (BD) supplies Fortinet FortiAP wireless access points, FortiGate security appliances, Fortinet networking equipment, antennas, and enterprise wireless solutions in Bangladesh.

Email: sales@datacom.com.bd

Contact Datacom Technologies (BD) for Fortinet FortiAP 233G pricing, compatible antenna options, licensing requirements, compatibility verification, and current availability.
