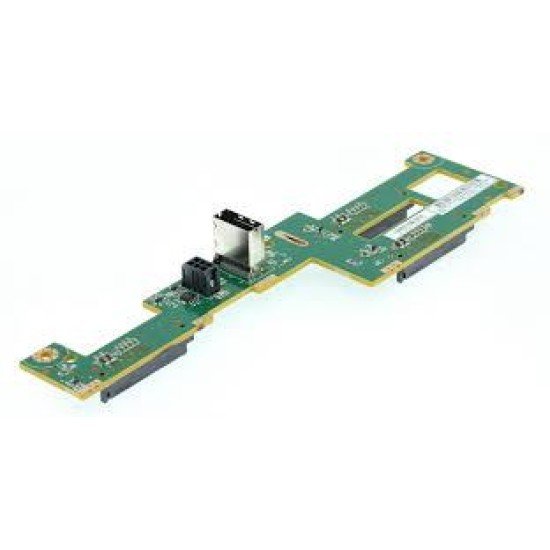

HPE 3.5" HDD SAS/SATA Rear Hard Disk Backplane Kit for DL380 Gen9 (779979-001 / 729833-001)
The HPE 3.5-inch HDD SAS/SATA Rear Hard Disk Backplane Kit for HPE ProLiant DL380 Gen9 Server (Part No: 779979-001 / 729833-001) is an enterprise storage expansion component designed to support rear-mounted Large Form Factor (3.5-inch) hard drives inside the DL380 Gen9 server chassis.
This backplane kit enables connectivity for up to 3 LFF SAS/SATA drives in the rear drive cage, providing additional storage capacity without occupying the front drive bays. It supports high-speed SAS architecture up to 12Gb/s, ensuring reliable communication between the drives and the server storage controller.
Designed by Hewlett Packard Enterprise, the rear backplane kit is commonly used in enterprise environments that require extra storage for boot drives, backup disks, or additional data storage within the DL380 Gen9 server platform.
SPECIFICATION
| Feature | Details |
|---|---|
| Product Name | HPE Rear Hard Disk Backplane Kit |
| Part Numbers | 779979-001 / 729833-001 |
| Compatible Server | HPE ProLiant DL380 Gen9 |
| Drive Support | Up to 3 x 3.5-inch LFF drives |
| Drive Interface | SAS / SATA |
| Data Transfer Speed | Up to 12Gb/s SAS |
| Form Factor | Large Form Factor (LFF) |
| Installation Location | Rear drive cage |
| Connector | 1 x SFF-8087 |
| Application | Enterprise server storage expansion |
HPE DL380 Gen9 Rear Hard Drive Backplane Description
The HPE 779979-001 / 729833-001 Rear Hard Disk Backplane Kit is designed to add three additional 3.5-inch drive bays at the rear of the DL380 Gen9 server. This provides organizations with flexible storage options for system boot drives, RAID configurations, or additional data storage.
The backplane acts as the central connection interface between the drives and the server’s RAID or SAS controller, ensuring stable data transfer and power distribution. With support for SAS and SATA drives, the backplane enables organizations to deploy high-capacity enterprise HDDs or SSDs based on workload requirements.
Rear drive cages are particularly useful in enterprise deployments where administrators want to separate operating system drives from primary storage arrays or add backup drives without affecting front drive bay configurations.
KEY FEATURES
Supports 3 x 3.5-inch LFF SAS/SATA hard drives
Designed for HPE ProLiant DL380 Gen9 servers
Provides rear storage expansion capability
Supports 12Gb/s SAS high-speed data transfer
Uses SFF-8087 connector for controller connection
Ideal for boot drives, RAID arrays, or backup storage
Reliable enterprise-grade storage architecture
Easy integration with existing server storage configuration
WHERE IT CAN BE USED
Enterprise Data Centers
Virtualization Infrastructure
Database Servers
Cloud Computing Platforms
Enterprise IT Infrastructure
Backup and Disaster Recovery Systems
High-capacity Storage Environments
