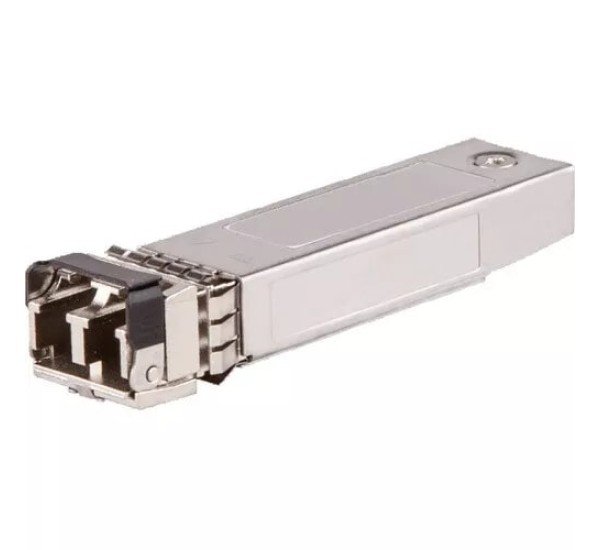

HPE 50G SFP56 Transceiver (R0M48A)

About HPE Aruba Networking R0M48A 50G SFP56 LC SR 100m MMF Transceiver in Bangladesh

The HPE Aruba Networking R0M48A is a 50Gbps SFP56 optical transceiver designed for high-speed Ethernet connectivity over multimode fiber. It uses SR short-range optical technology, an 850nm wavelength and a duplex LC connector, providing up to 100 meters of connectivity over supported OM4 and OM5 multimode fiber.

HPE officially identifies R0M48A as the HPE Aruba Networking 50G SFP56 LC SR 100m MMF Transceiver. The product uses an SFP56 form factor and has a maximum specified distance of 100 meters. :contentReference[oaicite:2]{index=2}

HPE's transceiver documentation specifies single-lane 50G PAM4 technology at 850nm, multimode fiber connectivity and duplex LC connectors. The R0M48A supports 70 meters over OM3 and 100 meters over OM4 or OM5 fiber. :contentReference[oaicite:3]{index=3}

HPE R0M48A 50G SFP56 Transceiver Specifications & Features

Overview

The HPE R0M48A is a high-speed 50G SFP56 SR optical transceiver for short-range multimode fiber networking. It is designed to provide reliable 50Gbps Ethernet connectivity between compatible HPE Aruba Networking switches and other supported network devices.

Using 850nm optics and duplex LC connectivity, the R0M48A is optimized for data center and enterprise network links where short-distance, high-bandwidth optical connectivity is required.

Buy HPE R0M48A 50G SFP56 Transceiver in Bangladesh

Purchase the HPE Aruba Networking R0M48A 50G SFP56 LC SR 100m MMF Transceiver from Datacom Technologies (BD). We supply HPE networking transceivers, Aruba switches, enterprise networking equipment and data center connectivity solutions in Bangladesh with competitive pricing, technical consultation and nationwide delivery.

Key Features

• 50Gbps high-speed Ethernet connectivity
• SFP56 optical transceiver form factor
• SR multimode fiber technology
• 850nm optical wavelength
• Duplex LC connector
• Single-lane 50G PAM4 technology
• Up to 100m maximum distance
• 70m over OM3 multimode fiber
• 100m over OM4 and OM5 multimode fiber
• Tri-speed capable at 10G, 25G and 50G
• Digital Optical Monitoring support
• Commercial operating temperature of 0°C to 70°C
• 1.5W maximum specified power requirement

Applications

• Data Center Networking
• Enterprise Ethernet Networks
• HPE Aruba Networking Switches
• 50Gbps Server Connectivity
• Switch-to-Switch Interconnects
• High-Speed Network Uplinks
• Data Center Aggregation
• High-Bandwidth LAN Infrastructure
• Virtualization Infrastructure
• Enterprise Network Expansion

50Gbps High-Speed Connectivity

The R0M48A provides 50Gbps optical connectivity using the SFP56 form factor. This enables high-bandwidth network links for modern data center and enterprise Ethernet infrastructure.

50G SFP56 technology uses a single-lane PAM4 architecture. HPE notes that 50G SFP56 technology cannot be split into two independent 25G flows; it is a single-lane, single-wavelength technology. :contentReference[oaicite:4]{index=4}

850nm SR Optics

The R0M48A uses an 850nm optical wavelength and SR short-range multimode fiber technology. This makes it appropriate for short-distance data center links where multimode fiber infrastructure is already deployed.

The transceiver uses duplex LC connectivity and is designed for 50/125µm multimode fiber. :contentReference[oaicite:5]{index=5}

OM3, OM4 and OM5 Fiber Support

HPE specifies the R0M48A for multimode fiber with different maximum distances depending on the fiber grade.

HPE specifically notes that 50G SR transceivers are not supported over OM1 or OM2 multimode fiber because the IEEE standard did not specify requirements for those fiber types. :contentReference[oaicite:6]{index=6}

Tri-Speed 10G / 25G / 50G Capability

The R0M48A is a tri-speed capable transceiver supporting 10Gbps, 25Gbps and 50Gbps operation on compatible platforms. HPE lists the R0M48A as tri-speed capable in its transceiver documentation. :contentReference[oaicite:7]{index=7}

When using 50G SR optics in a lower-speed link, the host interface and network configuration must support the selected operating speed.

Duplex LC Connector

The R0M48A uses a duplex LC connector for multimode fiber connectivity. A duplex LC connection uses separate optical paths for transmit and receive.

Use compatible LC-terminated OM3, OM4 or OM5 multimode fiber cabling for the specified link distances.

Digital Optical Monitoring

The R0M48A supports Digital Optical Monitoring (DOM). HPE's transceiver guide identifies DOM as supported for the R0M48A. :contentReference[oaicite:8]{index=8}

DOM can provide optical diagnostic information such as operating parameters and optical levels when the host switch platform supports and exposes the relevant monitoring functions.

Optical Performance

HPE specifies transmit power of approximately -6 to +4 dBm and receive power of approximately -8.4 to +4.0 dBm for the R0M48A. :contentReference[oaicite:9]{index=9}

These optical specifications are useful when designing and troubleshooting compatible 50G multimode fiber links.

Power and Temperature

The R0M48A is specified for a commercial operating temperature range of 0°C to 70°C and a required power rating of 1.5W. :contentReference[oaicite:10]{index=10}

Ensure that the host switch provides an SFP56 port and supports the required thermal and power characteristics before deployment.

HPE Aruba Networking Compatibility

HPE documents R0M48A compatibility across selected Aruba networking platforms. The Aruba 6300 Switch Series supports R0M48A on compatible SFP56 ports with the required software versions. :contentReference[oaicite:11]{index=11}

HPE also lists R0M48A among the supported SFP56 transceivers for Aruba 6400 modules and selected 6300L platforms. :contentReference[oaicite:12]{index=12}

Compatibility varies by exact switch model, port configuration and software release. Always verify the host device's current HPE compatibility documentation before installation.

Data Center Networking

The R0M48A is well suited to short-distance 50Gbps data center links. It can be deployed in compatible SFP56 ports for switch-to-switch connectivity, server connectivity and high-bandwidth network infrastructure.

Its multimode SR architecture is particularly useful in environments where OM3, OM4 or OM5 structured fiber cabling is already installed.

HPE R0M48A vs 50G LR Transceiver

Compatibility Considerations

The R0M48A is an SFP56 optical transceiver and requires a compatible SFP56 host port. It should not be assumed to work in every SFP+ or SFP28 port simply because those form factors are physically related.

• Compatible SFP56 port
• Supported HPE Aruba Networking switch
• Compatible switch software/firmware
• OM3, OM4 or OM5 multimode fiber
• Duplex LC fiber connection
• Appropriate 50G interface configuration

HPE's compatibility documentation should be checked for the exact switch SKU and software release before deployment. :contentReference[oaicite:13]{index=13}

Benefits

• 50Gbps high-speed connectivity
• SFP56 optical form factor
• 850nm SR multimode optics
• Up to 100m reach
• Supports OM3, OM4 and OM5 fiber
• Tri-speed 10G/25G/50G capability
• Duplex LC connector
• Digital Optical Monitoring
• Suitable for compatible HPE Aruba Networking switches
• Ideal for enterprise and data center networking

Why Buy from Datacom Technologies (BD)?

Datacom Technologies (BD) supplies HPE Aruba Networking transceivers, Ethernet switches, optical networking products and data center connectivity equipment in Bangladesh. Customers can receive competitive pricing, technical consultation, deployment assistance and nationwide delivery.

• Call/WhatsApp: +8801748173213
• Email: sales@datacom.com.bd
• Alternative Email: datacomtechnologiesbd@gmail.com
• Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh

Frequently Asked Questions (FAQ)

Q1: What is HPE R0M48A?
HPE R0M48A is the HPE Aruba Networking 50G SFP56 LC SR 100m MMF Transceiver.

Q2: What is the speed of R0M48A?
The transceiver supports 50Gbps operation and is tri-speed capable for 10G, 25G and 50G on compatible platforms. :contentReference[oaicite:14]{index=14}

Q3: What form factor does R0M48A use?
It uses the SFP56 optical transceiver form factor. :contentReference[oaicite:15]{index=15}

Q4: What wavelength does R0M48A use?
It uses an 850nm optical wavelength. :contentReference[oaicite:16]{index=16}

Q5: What fiber does R0M48A support?
It is designed for multimode fiber, including OM3, OM4 and OM5. HPE specifies 70m over OM3 and 100m over OM4/OM5. :contentReference[oaicite:17]{index=17}

Q6: What connector does R0M48A use?
It uses a duplex LC connector. :contentReference[oaicite:18]{index=18}

Q7: What is the maximum distance of R0M48A?
The maximum specified distance is 100 meters. This applies to OM4 and OM5 multimode fiber; OM3 is specified to 70 meters. :contentReference[oaicite:19]{index=19}

Q8: Does R0M48A support DOM?
Yes. HPE identifies Digital Optical Monitoring as supported. :contentReference[oaicite:20]{index=20}

Q9: Can R0M48A operate at 25G or 10G?
Yes, R0M48A is documented as tri-speed capable at 10G, 25G and 50G on compatible platforms. :contentReference[oaicite:21]{index=21}

Q10: Can R0M48A be used over OM1 or OM2 fiber?
HPE does not specify 50G SR operation over OM1 or OM2. HPE specifically notes that 50G SR transceivers are not supported for those fiber types. :contentReference[oaicite:22]{index=22}

Q11: Is R0M48A a single-mode fiber transceiver?
No. R0M48A is an SR multimode fiber transceiver using 850nm optics.

Q12: Is R0M48A suitable for long-distance 50G links?
No. R0M48A is designed for short-range multimode fiber links up to 100m. HPE offers separate 50G LR and ER transceivers for longer distances. :contentReference[oaicite:23]{index=23}

Q13: Which HPE Aruba switches support R0M48A?
HPE documents R0M48A support on selected Aruba 6300, 6300L and 6400 configurations, subject to the appropriate SFP56 ports and software versions. :contentReference[oaicite:24]{index=24}

Q14: What is the operating temperature?
The R0M48A is specified for a commercial operating temperature range of 0°C to 70°C. :contentReference[oaicite:25]{index=25}

Q15: What is the power requirement?
HPE specifies a required power rating of 1.5W. :contentReference[oaicite:26]{index=26}
