HPE MSA 2060 Storage Specifications
| Specification | Details |
|---|
| Product Model | HPE MSA 2060 10GbE iSCSI SFF Storage |
| Product Number / SKU | R0Q76B |
| Storage Type | SAN Storage Array |
| Access Type | Block |
| Form Factor | 2U Rackmount |
| Drive Form Factor | SFF (2.5-inch) |
| Drive Bays | Up to 24 SFF drives per array |
| Storage Media Support | SSD, Enterprise SAS HDD, SAS Midline HDD |
| Storage Controllers | 2 × HPE MSA 2060 10GbE iSCSI Controllers |
| Host Ports | 8 × 10GbE iSCSI ports |
| Ports per Controller | 4 × 10GbE iSCSI |
| Host Interface | 10GbE iSCSI |
| Controller Connectivity | 10/25GbE iSCSI |
| Maximum Expansion Enclosures | Up to 9 additional enclosures |
| Expansion Enclosure Support | 24-bay SFF and 12-bay LFF |
| Expansion Interface | 12Gb SAS |
| Maximum SFF Drives per Array | Up to 240 drives |
| Maximum SSDs per Array | Up to 240 SFF SSDs |
| Maximum HDDs per Array | Up to 240 SFF HDDs |
| RAID Support | RAID 0, 1, 5, 6, 10, MSA-DP+ |
| Read Cache | Up to 8TB |
| Data Cache + System Memory | 24GB per array |
| Drive Mixing | SSD, Enterprise SAS and SAS Midline HDD can be mixed |
| Clustering Support | Yes |
| SAN Backup Support | Yes |
| Storage Mirroring | Yes |
| Data Protection | Snapshots and Remote Replication |
| Automated Tiering | Supported |
| Maximum Raw Capacity | Up to 921.6TB SFF with expansion |
| Compatible OS | Windows Server 2016/2019/2022, VMware vSphere 6.7, Red Hat Linux 8, SUSE SLES 15 |
| Dimensions (H × W × D) | 8.9 × 44.5 × 50.8 cm |
| Weight | Approx. 5 kg |
| Power Supply | Dual AC power supplies |
| Energy Efficiency | ENERGY STAR Compliant |
HPE MSA 2060 10GbE iSCSI SFF Storage Array in Bangladesh

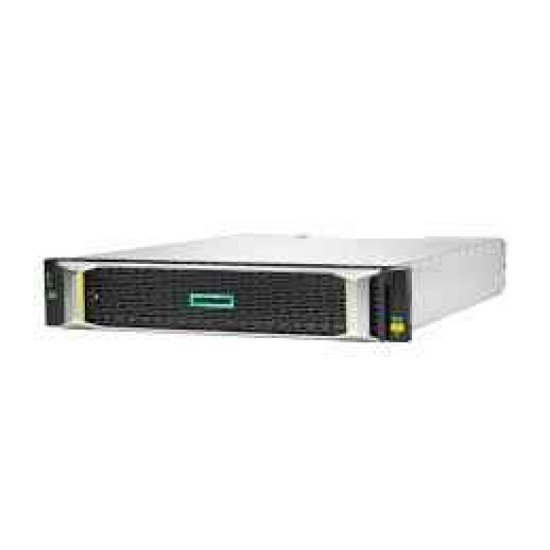

The HPE MSA 2060 10GbE iSCSI SFF Storage Array is an enterprise-grade 2U storage solution designed for businesses, data centers, virtualization environments, and organizations that need reliable shared storage with high-speed network connectivity. The HPE MSA 2060 SFF model uses 10/25GbE iSCSI host connectivity, dual storage controllers, and supports up to 24 Small Form Factor (SFF) drives in the array chassis.
With its flexible storage architecture, the HPE MSA 2060 can be configured with SSDs, Enterprise SAS HDDs, or Midline SAS HDDs depending on performance and capacity requirements. It is suitable for server virtualization, database workloads, file services, backup, business applications, and other storage-intensive environments.
For businesses looking for HPE MSA 2060 price in Bangladesh, HPE MSA storage in Bangladesh, or an enterprise iSCSI SAN storage solution, the MSA 2060 is a practical option for building a scalable and highly available storage infrastructure.
Key Features of HPE MSA 2060 10GbE iSCSI SFF Storage
- 2U Small Form Factor (SFF) storage array
- HPE MSA 2060 enterprise storage platform
- 10/25GbE iSCSI host connectivity
- Dual HPE MSA 2060 storage controllers
- 8 host ports in total, 4 ports per controller
- Supports up to 24 SFF HDDs and/or SSDs per array chassis
- Supports SSD, Enterprise SAS HDD and Midline SAS HDD configurations
- Supports RAID 1, RAID 5, RAID 6, RAID 10 and MSA-DP+
- Automated storage tiering for optimized workload performance
- Virtualized snapshot technology for data protection
- Remote replication through FC or iSCSI
- Scalable architecture with additional expansion enclosures
- Suitable for virtualization, databases, file servers and business applications
- Designed for small and medium-sized businesses, enterprise environments and data centers
Why Choose HPE MSA 2060 Storage?
The HPE MSA 2060 provides a combination of high-speed iSCSI connectivity, dual controllers, flexible drive support, RAID protection and scalable storage architecture. Its 2U SFF design is suitable for data centers where rack space is limited but enterprise storage performance and expandability are required.
The ability to combine SSDs and SAS HDDs gives organizations flexibility to build a storage solution according to their budget, performance requirements and capacity needs.
Buy HPE MSA 2060 10GbE iSCSI SFF Storage Array in Bangladesh
You can buy the HPE MSA 2060 10GbE iSCSI SFF Storage Array for enterprise storage, server virtualization, data center and SAN requirements in Bangladesh.
Before purchasing, it is recommended to confirm the required drive capacity, SFF drive type, iSCSI network infrastructure, rack requirements and compatibility with the existing server or virtualization environment.
For organizations requiring enterprise storage deployment in Bangladesh, the HPE MSA 2060 can be configured according to the required performance, capacity and scalability requirements.
HPE MSA 2060 Compatibility
The HPE MSA 2060 is designed to work with compatible enterprise server and virtualization environments. Published compatible platforms include:
- Microsoft Windows Server 2022
- Microsoft Windows Server 2019
- Microsoft Windows Server 2016
- VMware vSphere 6.7
- Red Hat Linux 8
- SUSE SLES 15
Compatibility should be checked against the specific server, HBA/network adapter, operating system and MSA firmware configuration before deployment.
Frequently Asked Questions
Is HPE MSA 2060 a SAN or NAS?
The HPE MSA 2060 is primarily an enterprise SAN/block storage array, not a traditional NAS file server. The 10GbE iSCSI model provides block-level storage access to connected servers over an Ethernet network.
What is the model number of HPE MSA 2060 10GbE iSCSI SFF?
The standard HPE MSA 2060 10GbE iSCSI SFF Storage model is R0Q76B.
How many drives can HPE MSA 2060 SFF support?
The SFF array chassis supports up to 24 SFF HDDs and/or SSDs.
How many iSCSI ports does HPE MSA 2060 have?
The HPE MSA 2060 10GbE iSCSI SFF model provides 8 host ports in total, with four ports on each of its two storage controllers.
Does HPE MSA 2060 support SSD?
Yes. HPE MSA 2060 supports SSD configurations as well as Enterprise SAS HDD and Midline SAS HDD options.
Does HPE MSA 2060 support RAID?
Yes. The platform supports RAID 1, RAID 5, RAID 6, RAID 10 and MSA-DP+. RAID 0 is supported for read-cache use.
Is HPE MSA 2060 suitable for VMware?
Yes. HPE lists compatible VMware vSphere environments for the MSA 2060, making it suitable for virtualization and shared storage deployments when the complete environment is properly configured.
Can HPE MSA 2060 be expanded later?
Yes. The MSA 2060 platform supports additional expansion enclosures, allowing organizations to increase storage capacity as their requirements grow.
Where can I buy HPE MSA 2060 in Bangladesh?
The HPE MSA 2060 can be sourced through enterprise IT hardware and storage solution providers in Bangladesh. For the correct configuration, buyers should request a quotation based on the required controller, drive, capacity and expansion requirements.
