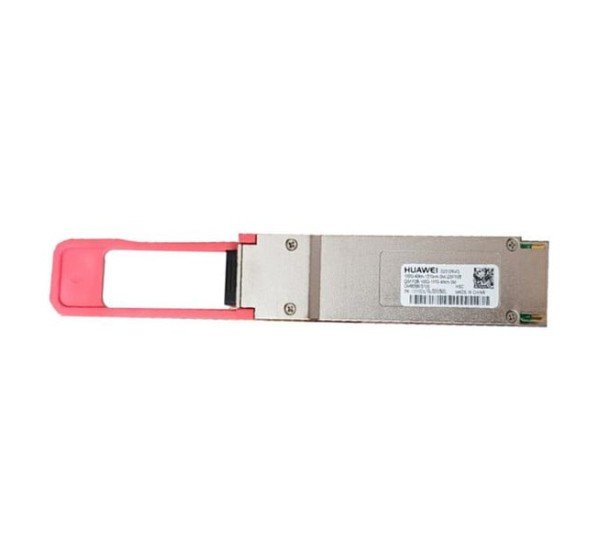

Huawei QSFP-40G-eSM4 02311DTR SFP Module

About Huawei QSFP-40G-eSM4 02311DTR 40G 10km QSFP+ Transceiver in Bangladesh

The Huawei QSFP-40G-eSM4 is a 40G QSFP+ optical transceiver designed for high-speed single-mode fiber networking. With Huawei part number 02311DTR, this optical module operates at 1310nm and supports transmission distances of up to 10km over single-mode fiber.

The QSFP-40G-eSM4 uses an MPO/APC connector with an 8-strand or 12-strand Type-B female connector configuration. Huawei specifies the module as a 40GBASE-eSM4 solution, with Digital Diagnostic Monitoring (DDM) supported and an operating temperature range of 0°C to 70°C. :contentReference[oaicite:1]{index=1}

Huawei QSFP-40G-eSM4 02311DTR Specifications & Features

Overview

The Huawei QSFP-40G-eSM4 02311DTR is a 40G QSFP+ optical transceiver for high-speed networking over single-mode fiber. Its 1310nm optical interface and 10km transmission reach make it suitable for longer-distance data center, campus, aggregation and enterprise network connections.

Huawei identifies the module as 40GBASE-eSM4 (non-standard). The module supports DDM and operates from 0°C to 70°C. :contentReference[oaicite:2]{index=2}

Buy Huawei QSFP-40G-eSM4 02311DTR in Bangladesh

Purchase the Huawei QSFP-40G-eSM4 02311DTR 40G 1310nm 10km QSFP+ Optical Transceiver from Datacom Technologies (BD). We supply Huawei optical transceivers, QSFP+ modules, SFP/SFP+ optics, fiber networking equipment and enterprise data center hardware in Bangladesh with competitive pricing, technical consultation and nationwide delivery.

Key Features

• 40G high-speed optical connectivity
• Huawei part number 02311DTR
• QSFP+ form factor
• 1310nm optical wavelength
• Up to 10km transmission distance
• Single-mode fiber (SMF) support
• MPO/APC connector
• 8-strand or 12-strand Type-B female connector configuration
• DDM support
• 0°C to 70°C operating temperature
• Suitable for Huawei CloudEngine and compatible networking platforms
• Supports 40G-to-4×10G breakout applications

40G QSFP+ Optical Transceiver

The QSFP-40G-eSM4 provides a 40G Ethernet interface in a compact QSFP+ form factor. It is designed for high-bandwidth network links where 40G connectivity is required between compatible switches and network devices.

The module supports a 40 Gbit/s transmission rate according to Huawei's official hardware documentation. :contentReference[oaicite:3]{index=3}

1310nm Optical Wavelength

The QSFP-40G-eSM4 operates at a 1310nm center wavelength. This wavelength is used for single-mode fiber transmission over longer distances than typical short-range multimode 40G optics.

The 1310nm architecture makes the module suitable for extended-reach network connections within enterprise, campus and data center environments.

10km Transmission Distance

Huawei specifies a target transmission distance of 10km over single-mode fiber. :contentReference[oaicite:4]{index=4}

The actual achievable distance depends on fiber quality, connector condition, optical power levels, link loss, patching and the complete optical budget of the network.

Single-Mode Fiber Support

The Huawei QSFP-40G-eSM4 is designed for single-mode fiber (SMF). Huawei documentation specifies single-mode fiber as the applicable optical medium for the 10km transmission distance. :contentReference[oaicite:5]{index=5}

When deploying the module, use the appropriate single-mode MPO fiber infrastructure and verify connector polarity and fiber strand configuration.

MPO/APC Connector

The module uses an MPO/APC optical connector configuration. Huawei specifies an 8-strand or 12-strand Type-B female connector arrangement. :contentReference[oaicite:6]{index=6}

Correct MPO polarity and compatible fiber termination are important for establishing the optical link. Always match the transceiver connector and fiber assembly before installation.

40GBASE-eSM4

Huawei identifies the QSFP-40G-eSM4 application standard as 40GBASE-eSM4 (non-standard). :contentReference[oaicite:7]{index=7}

Because eSM4 is a Huawei-specific/non-standard optical implementation, compatibility should be verified when connecting the module to third-party switches or transceivers.

DDM Support

The QSFP-40G-eSM4 supports Digital Diagnostic Monitoring (DDM). DDM can provide optical-module monitoring information through compatible network equipment.

This can assist network administrators in monitoring optical conditions and troubleshooting fiber-link issues.

Optical Performance

These optical characteristics are documented by Huawei for the QSFP-40G-eSM4 02311DTR. :contentReference[oaicite:8]{index=8}

40G to 4×10G Breakout

The QSFP-40G-eSM4 can support a 1-to-4 splitting configuration. Huawei states that the optical module can connect a 40GE port to four 10GE ports using an appropriate 1-to-4 cable. :contentReference[oaicite:9]{index=9}

This makes the module useful when migrating from or integrating 10G network connections with a 40G aggregation or uplink interface.

Enterprise Network Applications

• 40G data center uplinks
• Switch-to-switch connections
• Core-to-aggregation links
• Aggregation-to-access connectivity
• Enterprise backbone networks
• Campus network links
• Data center spine-leaf architectures
• 40G to 4×10G breakout applications

Huawei CloudEngine Compatibility

The QSFP-40G-eSM4 is documented for Huawei networking platforms, including CloudEngine switch families. Huawei's hardware documentation lists part number 02311DTR and provides the module's optical and compatibility characteristics. :contentReference[oaicite:10]{index=10}

Software and hardware support can depend on the switch model and software version. Huawei documentation for some platforms specifies minimum software versions for this optical module, so the exact target switch should be checked before installation.

Operating Temperature

The QSFP-40G-eSM4 has a documented operating temperature range of 0°C to 70°C. :contentReference[oaicite:11]{index=11}

This standard-temperature range makes it appropriate for controlled enterprise data center and networking environments.

QSFP-40G-eSM4 vs 40G-SR4

Compatibility Considerations

The QSFP-40G-eSM4 uses Huawei's 40GBASE-eSM4 implementation, which Huawei identifies as non-standard. Therefore, compatibility should be verified before using the module with third-party switches or non-Huawei optical equipment. :contentReference[oaicite:12]{index=12}

• Verify the target switch supports QSFP-40G-eSM4
• Verify the required Huawei software version
• Use compatible single-mode fiber
• Match MPO/APC connector configuration
• Verify Type-B MPO polarity
• Confirm 40G port and breakout support
• Check optical link budget before deployment

Benefits

• 40G high-speed networking
• 10km single-mode fiber reach
• 1310nm wavelength
• Compact QSFP+ form factor
• MPO/APC connectivity
• DDM support
• 40G-to-4×10G breakout capability
• Suitable for Huawei networking platforms
• Ideal for enterprise and data center aggregation
• Extended-reach optical connectivity

Why Buy from Datacom Technologies (BD)?

Datacom Technologies (BD) supplies Huawei optical transceivers, QSFP+, QSFP28, SFP/SFP+ modules, enterprise switches and data center networking hardware in Bangladesh. Customers can receive competitive pricing, technical consultation, compatibility assistance and nationwide delivery.

• Call/WhatsApp: +8801748173213
• Email: sales@datacom.com.bd
• Alternative Email: datacomtechnologiesbd@gmail.com
• Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh

Frequently Asked Questions (FAQ)

Q1: What is Huawei QSFP-40G-eSM4?
The Huawei QSFP-40G-eSM4 is a 40G QSFP+ optical transceiver designed for 10km single-mode fiber transmission at 1310nm.

Q2: What is the Huawei part number?
The part number is 02311DTR. :contentReference[oaicite:13]{index=13}

Q3: What is the transmission speed?
The module supports a 40 Gbit/s / 40GE transmission rate. :contentReference[oaicite:14]{index=14}

Q4: What wavelength does it use?
It uses a 1310nm optical wavelength.

Q5: What fiber type does QSFP-40G-eSM4 use?
It is designed for single-mode fiber (SMF).

Q6: What is the maximum transmission distance?
Huawei specifies a target transmission distance of 10km over single-mode fiber. :contentReference[oaicite:15]{index=15}

Q7: What connector does it use?
The module uses an MPO/APC connector with an 8-strand or 12-strand Type-B female configuration. :contentReference[oaicite:16]{index=16}

Q8: Does it support DDM?
Yes. Huawei specifies DDM support for the QSFP-40G-eSM4.

Q9: Can it connect 40G to four 10G ports?
Yes. Huawei documentation states that the module supports 1-to-4 splitting and can connect a 40GE port to four 10GE ports using an appropriate breakout cable. :contentReference[oaicite:17]{index=17}

Q10: Is QSFP-40G-eSM4 a standard 40GBASE-SR4 module?
No. Huawei identifies the application standard as 40GBASE-eSM4 (non-standard). :contentReference[oaicite:18]{index=18}

Q11: Can QSFP-40G-eSM4 be used with third-party switches?
Compatibility should be verified because 40GBASE-eSM4 is identified by Huawei as a non-standard implementation.

Q12: What is the operating temperature?
The documented operating temperature range is 0°C to 70°C. :contentReference[oaicite:19]{index=19}

Q13: Is QSFP-40G-eSM4 suitable for long-distance data center links?
Yes. Its 10km single-mode fiber reach makes it suitable for extended-reach 40G links, subject to the optical infrastructure and link budget.
