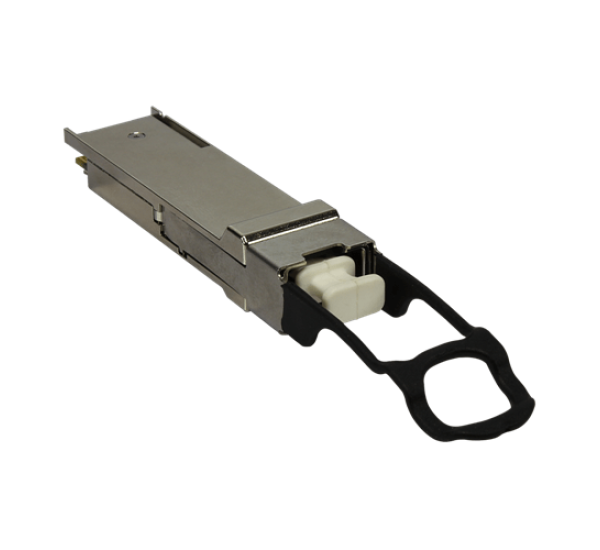

Huawei QSFP-40G-iSM4 02311DRW SFP Module

About Huawei QSFP-40G-iSM4 02311DRW 40G QSFP+ Optical Transceiver in Bangladesh

The Huawei QSFP-40G-iSM4 with part number 02311DRW is a 40GE QSFP+ optical transceiver designed for high-speed data center and enterprise networking environments. It operates at 40Gbps using the 40GBASE-iSM4 optical standard and is designed for transmission over single-mode fiber.

The module uses a 1310nm optical wavelength and supports a maximum transmission distance of 1.4km over G.652 single-mode fiber. Huawei documentation specifies an MPO/APC connector and an operating temperature range of 0°C to 70°C. :contentReference[oaicite:1]{index=1}

Huawei QSFP-40G-iSM4 02311DRW Specifications & Features

Overview

The Huawei QSFP-40G-iSM4 is a 40Gbps optical transceiver for compatible Huawei networking equipment. Its QSFP+ form factor provides high-density 40GE connectivity for enterprise networks, data centers and high-speed backbone links.

The module is designed for single-mode fiber applications and uses a 1310nm wavelength. Huawei specifies a maximum transmission distance of 1.4km over G.652 single-mode fiber. :contentReference[oaicite:2]{index=2}

Buy Huawei QSFP-40G-iSM4 02311DRW in Bangladesh

Purchase the Huawei QSFP-40G-iSM4 02311DRW 40G QSFP+ Optical Transceiver from Datacom Technologies (BD). We supply Huawei optical modules, QSFP/QSFP+ transceivers, SFP modules, fiber networking equipment and enterprise data center hardware in Bangladesh with competitive pricing, technical consultation and nationwide delivery.

Key Features

• 40Gbps / 40GE transmission
• QSFP+ form factor
• Huawei part number 02311DRW
• 40GBASE-iSM4 optical standard
• 1310nm center wavelength
• Single-mode fiber support
• Up to 1.4km transmission distance
• MPO/APC optical connector
• DDM/DOM support
• 0°C to 70°C operating temperature
• Suitable for compatible Huawei networking platforms
• Can connect a 40GE port to four 10GE ports using a supported 1-to-4 cable

40Gbps High-Speed Networking

The QSFP-40G-iSM4 provides 40GE connectivity for high-bandwidth networking applications. Its 40Gbps transmission rate is suitable for data center aggregation, server connectivity, network backbone links and high-speed inter-switch connections.

By providing four 10Gbps lanes, the module can also support a 40GE-to-4x10GE breakout configuration when used with a compatible 1-to-4 cable. Huawei documentation specifically notes this capability. :contentReference[oaicite:3]{index=3}

40GBASE-iSM4 Optical Standard

The Huawei 02311DRW uses the 40GBASE-iSM4 optical standard. Huawei documentation identifies this as a non-standard 40G optical application for the module. :contentReference[oaicite:4]{index=4}

Because iSM4 is a Huawei-specific/non-standard application, compatibility should be verified before using this module with third-party networking equipment.

1310nm Optical Wavelength

The QSFP-40G-iSM4 operates at a nominal 1310nm wavelength. This wavelength is designed for single-mode fiber transmission and supports the module's 1.4km target distance. :contentReference[oaicite:5]{index=5}

Single-Mode Fiber Support

The 02311DRW is designed for single-mode fiber (SMF). Huawei specifies G.652 single-mode fiber with a 9μm fiber diameter and a maximum transmission distance of 1.4km. :contentReference[oaicite:6]{index=6}

The module should therefore be paired with an appropriate single-mode MPO/APC fiber infrastructure for reliable operation.

MPO/APC Connector

The QSFP-40G-iSM4 uses an MPO/APC connector. Huawei documentation specifies an 8-strand or 12-strand, Type B, female connector configuration. :contentReference[oaicite:7]{index=7}

Correct fiber polarity, connector type and fiber count are important when deploying the module. Verify the existing cabling infrastructure before ordering.

1.4km Transmission Distance

The Huawei QSFP-40G-iSM4 supports a maximum transmission distance of 1.4km over compatible G.652 single-mode fiber. :contentReference[oaicite:8]{index=8}

Actual link distance depends on fiber attenuation, connector losses, patch panels, optical budget and overall link quality.

Optical Performance

These optical specifications are documented by Huawei for the QSFP-40G-iSM4 02311DRW. :contentReference[oaicite:9]{index=9}

DDM / DOM Monitoring

The QSFP-40G-iSM4 supports Digital Diagnostic Monitoring (DDM). This capability allows compatible networking equipment to monitor operating parameters of the optical module. :contentReference[oaicite:10]{index=10}

Depending on the host platform, monitored parameters can help network administrators assess optical conditions and troubleshoot link performance.

Operating Temperature

The specified operating temperature range is 0°C to 70°C. This makes the module suitable for standard data center and enterprise networking environments operating within the specified temperature range. :contentReference[oaicite:11]{index=11}

40GE to 4x10GE Breakout

The Huawei QSFP-40G-iSM4 can connect a 40GE port to four 10GE ports using a compatible 1-to-4 breakout cable. Huawei explicitly documents this application for the module. :contentReference[oaicite:12]{index=12}

This makes the module useful when migrating or integrating 40GbE uplinks with multiple 10GbE downstream connections.

Huawei Network Compatibility

Huawei documentation lists the QSFP-40G-iSM4 02311DRW across multiple Huawei networking platforms. The module is documented for Huawei CloudEngine and S-series switch environments. :contentReference[oaicite:13]{index=13}

Huawei documentation also notes that certain platforms require specific software versions. For example, the S12700 documentation states that this module requires V200R009C00 or later on the applicable switch platform. :contentReference[oaicite:14]{index=14}

Always verify the exact switch model, line card and software version before deployment.

Data Center Applications

• 40GbE data center uplinks
• Core network connections
• Aggregation network links
• High-speed switch-to-switch connectivity
• Server aggregation
• Storage network connectivity
• Enterprise backbone links
• 40GE to 4x10GE breakout applications

Huawei QSFP-40G-iSM4 vs QSFP-40G-iSR4

Compatibility Considerations

The QSFP-40G-iSM4 is a Huawei-specific optical module using the 40GBASE-iSM4 application standard. It should not automatically be assumed to be interchangeable with standard 40GBASE-SR4 or other 40G QSFP+ modules.

• Verify Huawei switch and line-card compatibility
• Verify software/firmware version
• Use compatible single-mode fiber
• Use the specified MPO/APC connector configuration
• Verify fiber polarity
• Confirm 1.4km link-budget requirements
• Confirm third-party interoperability before deployment

Benefits

• 40Gbps high-speed connectivity
• QSFP+ high-density form factor
• 1310nm single-mode fiber transmission
• Up to 1.4km reach
• MPO/APC connectivity
• DDM support
• Suitable for data center and enterprise networks
• Supports compatible 40GE-to-4x10GE breakout applications
• Designed for compatible Huawei networking equipment
• 0°C to 70°C operating temperature

Why Buy from Datacom Technologies (BD)?

Datacom Technologies (BD) supplies Huawei optical transceivers, QSFP/QSFP+ modules, SFP modules, fiber networking equipment and enterprise data center hardware in Bangladesh. Customers can receive competitive pricing, technical consultation, deployment assistance and nationwide delivery.

• Call/WhatsApp: +8801748173213
• Email: sales@datacom.com.bd
• Alternative Email: datacomtechnologiesbd@gmail.com
• Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh

Frequently Asked Questions (FAQ)

Q1: What is Huawei QSFP-40G-iSM4?
The Huawei QSFP-40G-iSM4 is a 40GE QSFP+ optical transceiver designed for single-mode fiber transmission.

Q2: What is the part number?
The Huawei part number is 02311DRW.

Q3: What speed does 02311DRW support?
It supports 40Gbps / 40GE transmission.

Q4: What wavelength does QSFP-40G-iSM4 use?
It operates at 1310nm.

Q5: What fiber type does it use?
It is designed for single-mode fiber (SMF), including compatible G.652 fiber.

Q6: What is the maximum transmission distance?
The specified maximum transmission distance is 1.4km over compatible single-mode fiber.

Q7: What connector does QSFP-40G-iSM4 use?
Huawei specifies an MPO/APC connector, with 8-strand or 12-strand Type B female connector configurations. :contentReference[oaicite:15]{index=15}

Q8: Does QSFP-40G-iSM4 support DDM?
Yes. Huawei documentation specifies Digital Diagnostic Monitoring support. :contentReference[oaicite:16]{index=16}

Q9: Can QSFP-40G-iSM4 connect 40GE to 4x10GE?
Yes. Huawei documents support for connecting a 40GE port to four 10GE ports using a compatible 1-to-4 cable. :contentReference[oaicite:17]{index=17}

Q10: Is 40GBASE-iSM4 a standard Ethernet specification?
Huawei documentation identifies 40GBASE-iSM4 as a non-standard application standard. :contentReference[oaicite:18]{index=18}

Q11: Is QSFP-40G-iSM4 compatible with QSFP-40G-SR4?
Not necessarily. iSM4 and SR4 use different optical characteristics and fiber applications. Verify host-platform and transceiver compatibility before deployment.

Q12: What is the operating temperature?
The specified operating temperature range is 0°C to 70°C.

Q13: Is QSFP-40G-iSM4 suitable for single-mode fiber?
Yes. It is specifically designed for single-mode fiber applications.

Q14: Where can I buy Huawei QSFP-40G-iSM4 02311DRW in Bangladesh?
You can contact Datacom Technologies (BD) for Huawei QSFP+ optical modules, SFP transceivers and enterprise networking hardware with competitive pricing and nationwide delivery.
