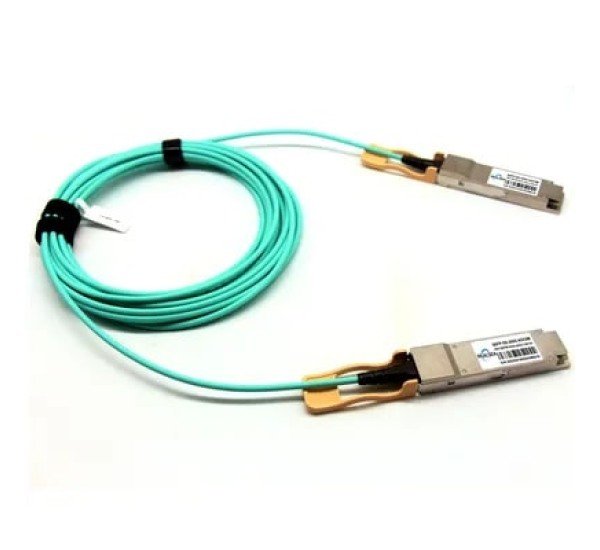

About Huawei QSFP56-200G-AOC-2M Active Optical Cable
The Huawei QSFP56-200G-AOC-2M is a high-performance 200G Active Optical Cable designed for short-reach data center interconnects. This 2-meter AOC offers excellent signal integrity and low latency, making it ideal for high-speed applications such as 400G Ethernet and high-performance computing.
Specification
| Parameter |
Value |
| Form Factor |
QSFP56 |
| Data Rate |
200G |
| Cable Type |
Active Optical Cable (AOC) |
| Connector |
QSFP56 |
| Cable Length |
2 meters |
| Fiber Type |
Multimode Fiber (MMF) |
| Wavelength |
850nm |
| Modulation Format |
PAM4 |
| Reach |
Up to 2 meters |
| Operating Temperature |
0 to 70°C |
| Power Consumption |
<5W |
| Standards |
SFF-8636, SFF-8679, IEEE 802.3cd |
Description:
The Huawei
QSFP56-200G-AOC-2M is a compact and reliable solution for high-speed data center and HPC interconnects. It features a QSFP56 form factor, which is compatible with a wide range of network equipment. The cable supports 200G Ethernet links over MMF, providing high bandwidth and low latency for demanding applications.
The AOC is equipped with four optical transceivers at each end, each capable of data rates up to 50Gb/s. The 850nm wavelength and PAM4 modulation format enable high data rates and long reach over MMF. The cable also supports FEC (Forward Error Correction), which improves link reliability and reduces bit error rates.
The QSFP56-200G-AOC-2M is a hot-pluggable module, making it easy to install and replace. It also features DDM (Digital Diagnostics Monitoring), which allows network administrators to monitor the health of the cable and troubleshoot problems remotely.
Supported/Comparable Models:
The QSFP56-200G-AOC-2M is compatible with a wide range of network equipment, including switches, routers, and servers. Some of the supported models include:
Huawei CloudEngine 9800, 8800, and 6800 Series Switches
Huawei OceanStor Dorado All-Flash Storage
Huawei FusionServer Pro Series Servers
The QSFP56-200G-AOC-2M is also compatible with other 200G QSFP56 AOCs from different vendors. However, it is important to ensure that the cables are compatible with each other and with the network equipment before purchasing.
