About Lenovo LSI 9305-16e HBA Card in Bangladesh

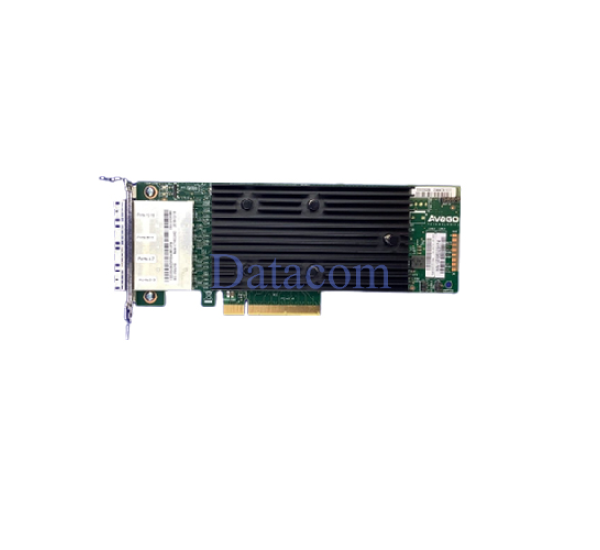

The Lenovo 01DH562 LSI 9305-16e HBA Card is a high-performance enterprise External SAS Host Bus Adapter designed to provide reliable, high-bandwidth connectivity between Lenovo ThinkSystem servers and external SAS storage systems. Powered by the Broadcom SAS3216 controller, this adapter delivers outstanding storage performance for JBOD enclosures, tape libraries, backup infrastructure, software-defined storage, and enterprise data centers.
Featuring a PCI Express 3.0 x8 host interface and four external Mini-SAS HD (SFF-8644) connectors, the Lenovo LSI 9305-16e provides sixteen 12Gb SAS lanes capable of connecting up to 1024 SAS or SATA devices through compatible expansion enclosures. It supports 12Gb, 6Gb, and 3Gb SAS devices as well as 6Gb and 3Gb SATA drives, ensuring excellent compatibility with both existing and modern enterprise storage infrastructures.
The adapter supports JBOD operation, S.M.A.R.T. monitoring, End-to-End CRC protection, SSP, SMP, STP protocols, 512n, 512e and 4Kn drives, advanced diagnostics, SES enclosure management, and enterprise operating systems. These features improve storage reliability, maximize performance, and simplify enterprise storage management.
Whether you are expanding storage capacity, deploying backup infrastructure, or connecting external SAS storage arrays, the Lenovo 01DH562 LSI 9305-16e HBA Card delivers scalable performance, exceptional reliability, and enterprise-class storage connectivity.
Buy Lenovo LSI 9305-16e HBA Card in Bangladesh
Looking for the original Lenovo 01DH562 LSI 9305-16e HBA Card in Bangladesh? Datacom Technologies (BD) supplies genuine Lenovo enterprise server and storage products with competitive pricing, expert technical consultation, and dependable after-sales support. Whether you are expanding external storage or upgrading your enterprise infrastructure, we provide authentic Lenovo products with nationwide delivery and professional assistance.
Compatibility
- Lenovo ThinkSystem SR530, SR550, SR570, SR590
- Lenovo ThinkSystem SR630, SR650, SR630 V2, SR650 V2
- Lenovo ThinkSystem SR635, SR645, SR655, SR665
- Lenovo ThinkSystem SR850, SR860, SR950
- PCI Express 3.0 x8 Compatible Enterprise Servers
- External SAS JBOD Enclosures
- External RAID Storage Enclosures
- Tape Libraries
- 12Gb, 6Gb and 3Gb SAS Devices
- 6Gb and 3Gb SATA Devices
- VMware ESXi
- Microsoft Windows Server
- Red Hat Enterprise Linux
- SUSE Linux Enterprise Server
Lenovo LSI 9305-16e HBA Specifications & Overview
| Specification |
Details |
| Product Type | External SAS Host Bus Adapter |
| Product Name | Lenovo 01DH562 LSI 9305-16e HBA Card |
| Brand | Lenovo |
| Part Number | 01DH562 |
| Model | LSI SAS 9305-16e |
| Controller | Broadcom / LSI SAS3216 |
| Bus Interface | PCI Express 3.0 x8 |
| External Connectors | 4 × Mini-SAS HD (SFF-8644) |
| SAS Lanes | 16 External 12Gb SAS Lanes |
| Supported Devices | Up to 1024 SAS/SATA Devices |
| Supported Speeds | 12Gb / 6Gb / 3Gb SAS, 6Gb / 3Gb SATA |
| Operating Mode | JBOD (Non-RAID) |
| Supported Drive Formats | 512n, 512e, 4Kn |
| Management | SES, StorCLI, Broadcom Storage Utilities |
Applications
- Enterprise Storage Expansion
- External SAS JBOD Systems
- Tape Backup Libraries
- Software Defined Storage
- Backup & Disaster Recovery
- Enterprise Data Centers
- Storage Consolidation
- Archive Storage
- High-Capacity External Storage
- Business-Critical Applications
Benefits of Choosing This Product
The Lenovo LSI 9305-16e HBA Card delivers enterprise-class external SAS connectivity with sixteen 12Gb SAS lanes, excellent scalability, low latency, and outstanding compatibility with external storage systems. Its PCIe Gen3 architecture and Broadcom SAS controller make it an ideal solution for organizations deploying high-capacity enterprise storage infrastructures.
Why Buy from Datacom Technologies (BD)?
Datacom Technologies (BD) is a trusted supplier of enterprise servers, storage systems, networking equipment, and data center hardware in Bangladesh. We provide genuine Lenovo enterprise products, competitive pricing, professional technical consultation, and dependable after-sales support. Whether you are upgrading storage infrastructure or expanding external SAS connectivity, our experienced engineers help you choose the right enterprise solution for your business.
- Call/WhatsApp: +8801748173213
- Email: sales@datacom.com.bd
- Alternative Email: datacomtechnologiesbd@gmail.com
- Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh.
Frequently Asked Questions (FAQ)
Q1: Is the Lenovo 01DH562 a RAID controller?
No. It is a Host Bus Adapter (HBA) designed for JBOD and external SAS storage connectivity.
Q2: How many external SAS ports does it provide?
It includes four Mini-SAS HD (SFF-8644) connectors providing sixteen external 12Gb SAS lanes.
Q3: How many storage devices are supported?
It supports up to 1024 SAS or SATA devices through compatible SAS expanders.
Q4: Does it support SATA drives?
Yes. It supports both SAS and SATA storage devices.
Q5: Which Lenovo servers are compatible?
It supports many Lenovo ThinkSystem servers equipped with PCIe Gen3 x8 expansion slots.
