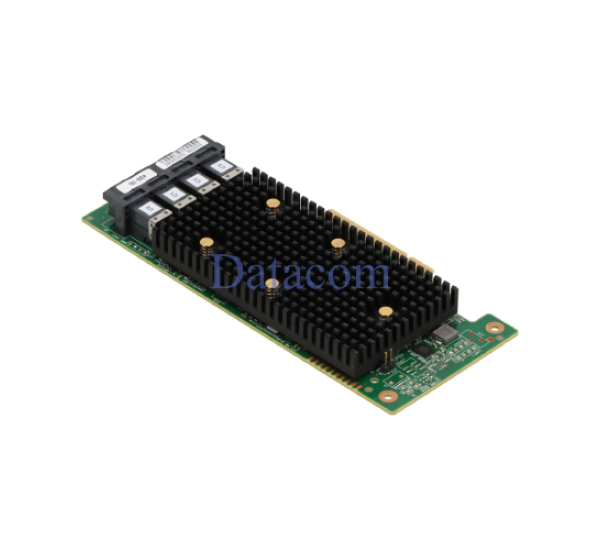

About Lenovo 01KN501 ThinkSystem 430-16i HBA Card in Bangladesh
The Lenovo 01KN501 ThinkSystem 430-16i HBA Card is an enterprise-grade 12Gb/s SAS Host Bus Adapter designed to deliver high-speed storage connectivity for Lenovo ThinkSystem servers. Powered by Broadcom SAS technology, this HBA provides sixteen internal SAS lanes for connecting enterprise SAS and SATA hard drives and SSDs. It is an ideal storage expansion solution for software-defined storage (SDS), virtualization, backup servers, database applications, and large-capacity enterprise storage environments.
Lenovo 01KN501 ThinkSystem 430-16i HBA Card Specifications & Overview
| Specification |
Details |
| Product Type | SAS Host Bus Adapter (HBA) |
| Product Name | Lenovo 01KN501 ThinkSystem 430-16i HBA Card |
| Brand | Lenovo |
| Part Number | 01KN501 |
| Model | ThinkSystem 430-16i |
| Controller | Broadcom SAS3416 |
| Host Interface | PCI Express 3.0 x8 |
| Internal Ports | 16 SAS Lanes |
| Connector Type | 4 × Mini-SAS HD (SFF-8643) |
| Supported Devices | 12Gb SAS, 6Gb SAS and SATA HDDs/SSDs |
| Maximum Data Transfer Rate | 12Gb/s per SAS Lane |
| RAID Support | JBOD (Non-RAID HBA) |
| Form Factor | Low Profile PCIe Adapter |
The ThinkSystem 430-16i HBA offers sixteen internal SAS lanes through four Mini-SAS HD connectors, enabling direct attachment of large numbers of enterprise storage devices. Operating in true HBA mode, it allows software-defined storage platforms and operating systems to manage disks directly without hardware RAID, maximizing flexibility and storage performance.
Designed for modern enterprise infrastructures, the adapter supports SAS HDDs, SATA HDDs, enterprise SSDs, virtualization environments, backup appliances, and high-capacity storage servers. Its PCIe Gen3 interface provides reliable bandwidth while ensuring seamless integration with supported Lenovo ThinkSystem servers.
Buy Lenovo 01KN501 ThinkSystem 430-16i HBA Card in Bangladesh
Looking for the original Lenovo 01KN501 ThinkSystem 430-16i HBA Card in Bangladesh? Datacom Technologies (BD) supplies genuine Lenovo enterprise servers, storage controllers, networking equipment, and complete data center solutions at competitive prices. Whether you are expanding enterprise storage, deploying software-defined storage, or upgrading server infrastructure, we provide authentic Lenovo products, professional technical consultation, dependable after-sales support, and nationwide delivery across Bangladesh.
Compatibility
- Lenovo ThinkSystem SR550
- Lenovo ThinkSystem SR590
- Lenovo ThinkSystem SR630
- Lenovo ThinkSystem SR650
- Lenovo ThinkSystem SR850
- Lenovo ThinkSystem ST550
- Supported Lenovo ThinkSystem Servers with PCIe Gen3 x8 Slots
- 12Gb SAS HDDs and SSDs
- 6Gb SAS Storage Devices
- SATA HDDs and SSDs
- VMware ESXi
- Microsoft Windows Server
- Red Hat Enterprise Linux
- SUSE Linux Enterprise Server
Applications
- Direct Attached Storage (DAS)
- Software-Defined Storage (SDS)
- Enterprise Storage Servers
- Backup and Archive Systems
- Virtualization Infrastructure
- Database Servers
- Enterprise File Servers
- Hyper-Converged Infrastructure
- Large-Capacity Storage Expansion
- Business-Critical Applications
Benefits of Choosing This Product
The Lenovo ThinkSystem 430-16i HBA delivers enterprise-class 12Gb/s SAS performance with sixteen internal storage lanes, making it ideal for high-capacity storage deployments. Its true HBA architecture, Broadcom SAS controller, and support for SAS and SATA drives provide maximum flexibility, scalability, and reliability for enterprise storage infrastructures.
Why Buy from Datacom Technologies (BD)?
Datacom Technologies (BD) is a trusted supplier of genuine Lenovo enterprise servers, storage controllers, networking equipment, and complete data center solutions in Bangladesh. We provide authentic Lenovo products, competitive pricing, professional technical consultation, and dependable after-sales support. Whether you are upgrading enterprise storage infrastructure or deploying new server solutions, our experienced engineers help you select the right hardware backed by nationwide delivery and reliable customer support.
- Call/WhatsApp: +8801748173213
- Email: sales@datacom.com.bd
- Alternative Email: datacomtechnologiesbd@gmail.com
- Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh.
Frequently Asked Questions (FAQ)
Q1: Is the Lenovo 01KN501 ThinkSystem 430-16i a RAID controller?
No. It is a true Host Bus Adapter (HBA) designed for JBOD storage and direct disk access.
Q2: What storage devices are supported?
It supports 12Gb SAS, 6Gb SAS, and SATA hard drives and solid-state drives.
Q3: How many internal drives can the adapter support?
The adapter provides sixteen internal SAS lanes through four Mini-SAS HD (SFF-8643) connectors for high-density storage deployments.
Q4: Which Lenovo servers are compatible with this HBA?
It is compatible with supported Lenovo ThinkSystem servers including SR550, SR590, SR630, SR650, SR850, ST550, and other supported PCIe Gen3 server platforms.
Q5: Why choose the Lenovo ThinkSystem 430-16i HBA?
It provides enterprise-grade 12Gb/s SAS connectivity, sixteen internal SAS lanes, true HBA functionality, and reliable storage expansion for modern enterprise data centers.
