About 100GbE QSFP28 Transceiver Module
Datacom Technologies BD offers a wide range of high-quality networking solutions, including the 100GbE QSFP28 Transceiver Module. This cutting-edge technology enables ultra-fast data transmission speeds, making it ideal for data centers, high-performance computing environments, and other demanding network applications.
Specification
| Parameter |
Specification |
| Data Rate |
100Gb/s |
| Interface |
QSFP28 |
| Fiber Type |
Single Mode Fiber (SMF) |
| Wavelength |
1310nm |
| Transmission Distance |
Up to 10km |
| Connector Type |
Duplex LC |
| Power Consumption |
< 2.5W |
| Operating Temperature |
0°C to 70°C |
| Storage Temperature |
-40°C to 85°C |
| Diagnostic Functions |
I2C compliant |
| Compliance Standards |
QSFP28 MSA, IEEE 802.3ba 100GBASE-LR4 |

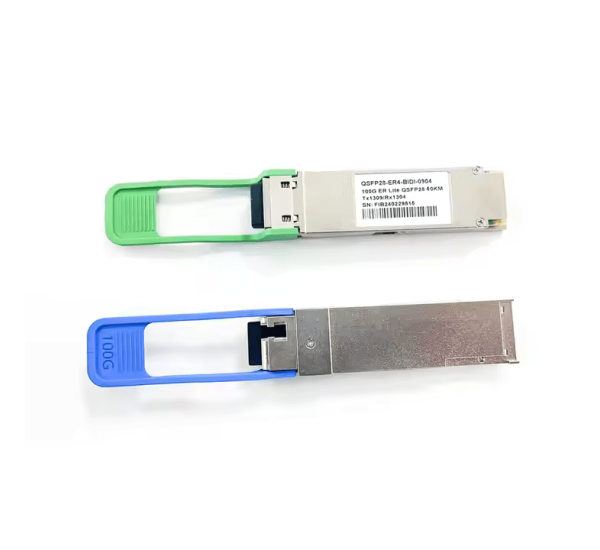

100GbE QSFP28 Module Description
The
100GbE QSFP28 transceiver module is a high-speed, high-density optical transceiver designed for use in data center and enterprise networks. It supports data rates of up to 100Gb/s over single-mode fiber (SMF) at a wavelength of 1310nm. The module utilizes a QSFP28 form factor, which allows for high port density in networking equipment.
The transceiver is compliant with the QSFP28 Multi-Source Agreement (MSA) and the IEEE 802.3ba 100GBASE-LR4 standard. It features a duplex LC connector for easy installation and maintenance. The module also includes digital diagnostic functions that can be accessed via the I2C interface, allowing for real-time monitoring of key parameters such as temperature, laser bias current, and received optical power.
Supported/Comparable Models
There are many different 100GbE QSFP28 transceiver modules available from various vendors. Some of the most popular models include:
Mellanox Technologies 100GbE QSFP28 LR4
Cisco 100GBASE-LR4 QSFP28
Finisar 100GBASE-LR4 QSFP28
Broadcom 100GBASE-LR4 QSFP28
What is the price of 100GbE QSFP28 Transceiver Module in BD?
The latest price of 100GbE QSFP28 Transceiver Module price in BD starts from
Taka 40,000 to Taka 70,000 depending on model, features and Warranty. To order your Transceiver Module , please contact us by call or WhatsApp (+8801748173213). You can also browse our online shop "
Datacom Technologies (BD)" and order your Transceiver Module directly.
Call/WhatsApp: +8801748173213
Email: sales@datacomtechbd.com or datacomtechnologiesbd@gmail.com
Explore other SFP Module here.
