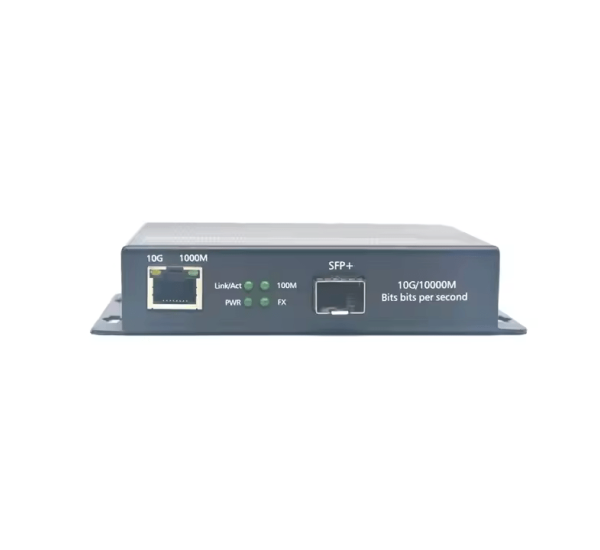

GXCOM ES10000-1G1F 10G SFP+ Media Converter
The 10G SFP+ Media Converter (ES10000-1G1F) is a network connectivity device designed to convert Ethernet traffic between an optical fiber interface and a copper Ethernet connection. Featuring one 10G SFP+ port and one 10GBase-T RJ45 port, it helps integrate fiber-optic links with copper-based networking equipment in high-bandwidth network environments.
This media converter is suitable for network expansion, server connectivity, data center links and enterprise network upgrades where a compatible 10 Gigabit Ethernet fiber connection needs to interface with copper Ethernet equipment. The SFP+ port accepts a compatible optical transceiver, allowing the fiber type, wavelength and link distance to be selected according to the network design.
Technical Specifications
| Specification | Details |
|---|
| Brand | GXCOM, as listed for model ES10000-1G1F |
| Model | ES10000-1G1F |
| Product Type | 10 Gigabit Ethernet media converter |
| Optical Interface | 1 × 10G SFP+ port |
| Copper Interface | 1 × 10GBase-T RJ45 port |
| Maximum Data Rate | 10Gbps |
| Fiber Transmission Distance | Depends on the selected SFP+ transceiver, fiber type and link budget |
| Copper Cable | Cat 6a recommended for 10GBase-T links up to 100m under supported conditions |
| MAC Address Table | 8K addresses, according to the listed product specification |
| Jumbo Frames | Up to 9KB, according to the listed product specification |
| Power Supply | External AC power adapter |
| Dimensions | Approximately 175 × 100 × 25mm |
| Weight | Approximately 0.2kg |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 5% to 95% non-condensing |
10Gbps Fiber-to-Copper Network Conversion
The ES10000-1G1F helps connect optical fiber infrastructure to compatible 10GBase-T Ethernet equipment. This is useful when a network switch, server or other device offers a copper Ethernet interface while the network backbone uses fiber-optic connectivity. Its compact standalone design can simplify deployment where a full network switch is unnecessary.
Flexible SFP+ Transceiver Selection
The SFP+ interface allows the use of a compatible transceiver selected for the required fiber type, wavelength and distance. Single-mode and multimode deployments require the appropriate transceiver and matching fiber cabling. Confirm transceiver compatibility and the link budget before installation; maximum optical reach is determined by the selected module rather than the media converter alone.
Applications
- Data centers: Connect compatible 10GbE copper equipment to fiber-based network infrastructure.
- Enterprise networks: Integrate fiber links with servers, network appliances and copper Ethernet devices.
- Campus networks: Extend high-speed connectivity between network segments over supported fiber links.
- Service provider networks: Support selected fiber-to-copper Ethernet deployments.
- Network upgrades: Bridge compatible copper and optical interfaces when expanding to 10 Gigabit Ethernet.
Installation and Compatibility Considerations
Before installation, verify the supported SFP+ transceiver, fiber type, wavelength, connector, copper cable category and required link distance. Both ends of the optical link must use compatible transceivers and matching fiber. For 10GBase-T copper connections, use suitable cabling and confirm the distance and performance requirements of the connected equipment.
Check the power adapter requirements and the device's operating environment before deployment. The media converter provides interface conversion; it does not replace a router or managed switch and should not be assumed to provide advanced network management, Power over Ethernet or routing functions unless these are specifically documented for the exact model.
Buy 10G SFP+ Media Converter in Bangladesh
For the latest 10G SFP+ Media Converter (ES10000-1G1F) price in Bangladesh, availability, warranty information and technical assistance, contact Datacom Technologies (BD).
Email: sales@datacom.com.bd
Pricing and availability may vary depending on sourcing, product condition, warranty and stock status. Confirm the exact model, supplied power adapter and SFP+ transceiver requirements before ordering.
