6COM 10G COPPER SFP+ MODULE
Specification
| Feature |
Specification |
| Model |
6COM 10G Copper SFP+ Transceiver |
| Form Factor |
SFP+ (Small Form-Factor Pluggable Plus) |
| Data Rate |
10 Gbps |
| Connector Type |
RJ-45 |
| Cable Type |
Cat 6a / Cat 7 |
| Transmission Distance |
Up to 30m |
| Wavelength |
N/A (Copper Interface) |
| Power Consumption |
≤2.5W |
| Operating Temperature |
0°C to 70°C (Commercial) / -40°C to 85°C (Industrial) |
| Storage Temperature |
-40°C to 85°C |
| Voltage Supply |
3.3V |
| Compliance |
IEEE 802.3an (10GBASE-T), MSA Compliant |
| MTBF |
Over 1,000,000 hours |
| Hot-Pluggable |
Yes |
Description

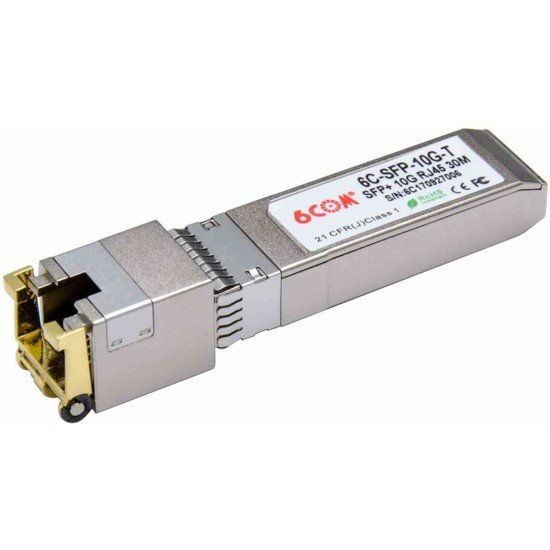

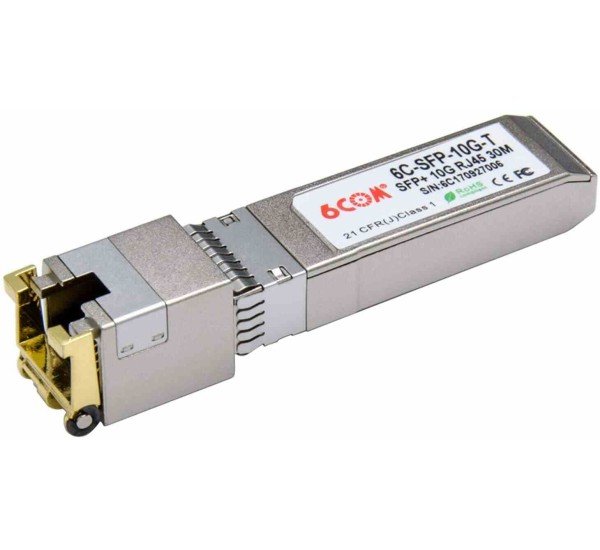

The 6COM 10G Copper SFP+ Module is a high-performance transceiver designed to deliver 10Gbps Ethernet connectivity over standard Cat 6a and Cat 7 copper cables. It features an RJ-45 connector, enabling easy integration with existing network infrastructures without requiring fiber cabling. With a maximum transmission distance of up to 30 meters, this module is ideal for short-range, high-speed networking applications such as data centers, enterprise networks, and campus environments.
The module supports IEEE 802.3an (10GBASE-T) standards and is compliant with the Multi-Source Agreement (MSA), ensuring compatibility with a wide range of networking devices from major vendors. It offers hot-swappable functionality, allowing for easy installation and replacement without disrupting network operations. With a low power consumption of ≤2.5W and an operating temperature range of 0°C to 70°C (or -40°C to 85°C for industrial versions), the 6COM 10G SFP+ transceiver provides a reliable solution for demanding environments.
This plug-and-play module simplifies network upgrades by enabling 10G speeds over existing copper cabling, making it an efficient and cost-effective alternative to fiber-based solutions. Its robust performance and broad compatibility make it a preferred choice for high-speed, high-density networking applications.
Key Features
- High-Speed Data Transmission – Supports 10Gbps Ethernet connectivity over Cat6a/Cat7 cables.
- RJ45 Interface – Provides seamless copper connectivity without the need for fiber optics.
- Hot-Swappable – Easily replaceable without shutting down the network.
- Auto-Negotiation – Supports 1G/2.5G/5G/10G speeds for flexible compatibility.
- Wide Compatibility – Works with major brands like Cisco, HP, Juniper, Arista, and more.
- Low Power Consumption – Energy-efficient design with under 2.5W power usage.
- Short Reach Transmission – Supports distances up to 30m over Cat6a/Cat7 cables.
- Durable and Reliable – Built for high-performance networking environments.
Where It Can Be Used?
The 6COM 10G Copper SFP Module is ideal for:
- Data Centers – High-speed interconnects for switches, routers, and servers.
- Enterprise Networks – Boosts network speeds in offices and corporate environments.
- Campus Networks – Supports reliable backbone connections.
- Telecommunications – Enhances networking in ISP and telecom applications.
- Industrial Applications – Works in rugged environments for manufacturing and automation.
Installation Steps
- Power Off the Device – To ensure safe installation.
- Insert the SFP Module – Align and gently push the module into the SFP+ port of the switch, router, or server.
- Connect the Ethernet Cable – Use a Cat6a/Cat7 cable to connect the module to your network device.
- Power On and Configure – Turn on the device and ensure proper detection.
- Verify Connection – Check network settings to confirm link establishment and speed.
User Experience
- Plug-and-Play – No complex setup required.
- Stable Performance – Consistently delivers high-speed, low-latency connections.
- Cost-Effective – Saves money by using copper wiring instead of fiber optics.
- Versatile – Works across multiple networking devices and brands.
- Energy-Efficient – Low heat generation ensures stable long-term operation.
Why Choose 6COM 10G Copper SFP Module?
- Broad Compatibility – Works with most network equipment.
- High Performance – Supports reliable 10Gbps speeds with low power consumption.
- Easy Integration – Seamlessly connects to existing copper-based infrastructure.
- Durability – Designed for long-term, heavy-duty usage.
- Affordable Alternative – Cost-effective solution compared to fiber optics.
Buy 6COM 10G COPPER SFP MODULE at the Best Price from Datacom BD Online
In Bangladesh, you can get original 6COM 10G COPPER SFP MODULE From Datacom. We have a large collection of latest 6COM SFP+ MODULE to purchase. Order Online Or Visit our Office to get yours at lowest price. The 6COM 10G COPPER SFP MODULE comes with 1-year warranty.
Get in Touch with Datacom Technologies (BD)
- ? Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of 6COM 10G COPPER SFP MODULE in Bangladesh?
The latest price of 6COM 10G COPPER SFP MODULE 10,200৳. You can buy the 6COM 10G COPPER SFP MODULE at best price from our website or visit our Office.
