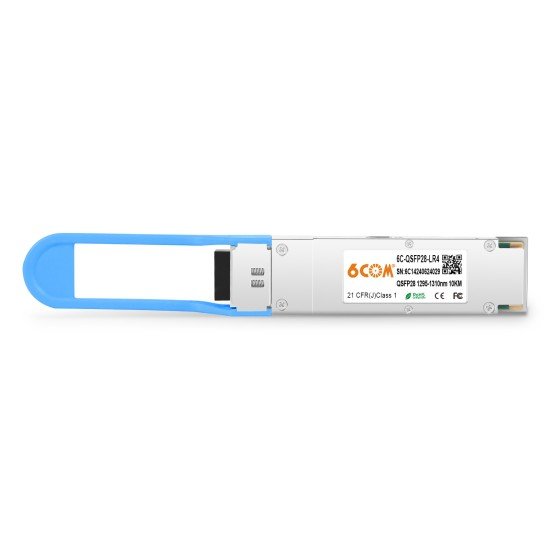

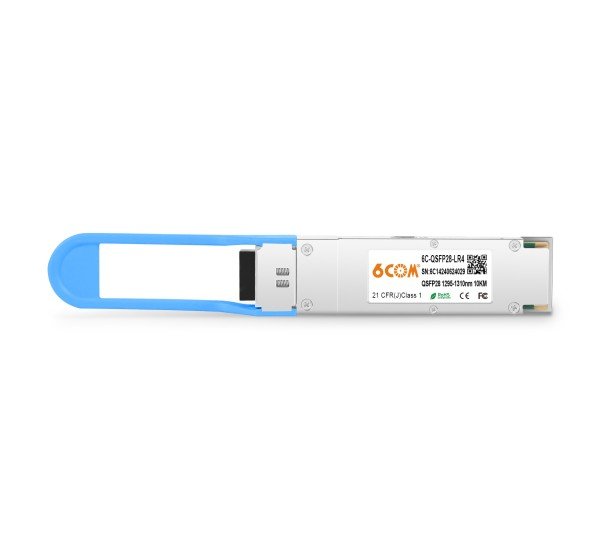

6Com QSFP-100G-LR4-S 10km 1310nm QSFP28 LC Optical Transceiver Module

About 6Com QSFP-100G-LR4-S 10km 1310nm QSFP28 LC Optical Transceiver Module in Bangladesh

The 6Com QSFP-100G-LR4-S is a 100Gbps long-reach optical transceiver module designed for high-speed fiber-optic networking applications. Using the compact QSFP28 form factor, 1310nm optical technology, and 100GBASE-LR4 architecture, this transceiver is designed to provide reliable 100Gbps connectivity over single-mode fiber links up to 10km.

The 6Com QSFP-100G-LR4-S is suitable for data center interconnects, telecom networks, enterprise backbone infrastructure, metro network connectivity, and other high-bandwidth applications where longer optical transmission distances are required. Its 10km reach provides significantly greater coverage than short-range 100G SR4 optical modules.

The module uses four optical wavelengths around the 1310nm window to transmit 100Gbps data over a duplex single-mode fiber connection. The duplex LC connector provides a practical and widely deployed fiber interface for long-distance optical networking.

Featuring a QSFP28 pluggable form factor, the transceiver is designed for high-density 100G networking equipment such as compatible switches, routers, aggregation platforms, optical transport systems, and data center networking devices. Digital Diagnostic Monitoring (DDM) provides access to supported optical and operating parameters for network monitoring and troubleshooting.

6Com QSFP-100G-LR4-S 10km 1310nm QSFP28 LC Optical Transceiver Module Specifications & Features

Overview

The 6Com QSFP-100G-LR4-S 10km 1310nm QSFP28 LC Optical Transceiver Module is designed for long-distance 100Gbps Ethernet connectivity. Based on the 100GBASE-LR4 optical architecture, it combines four optical wavelengths to provide high-speed data transmission over single-mode fiber.

With a transmission reach of up to 10km, the module is suitable for connecting network equipment across larger data center facilities, campuses, metropolitan areas, telecom infrastructure, and other locations where short-range multimode optics are not sufficient.

The 1310nm optical window and single-mode fiber design provide the optical characteristics required for extended-distance transmission. The duplex LC connector simplifies integration with conventional single-mode fiber cabling and patching infrastructure.

Buy 6Com QSFP-100G-LR4-S 10km 1310nm QSFP28 LC Optical Transceiver in Bangladesh

Purchase the 6Com QSFP-100G-LR4-S 100GBASE-LR4 QSFP28 Optical Transceiver from Datacom Technologies (BD). We supply 6Com optical transceivers, QSFP28 modules, SFP/SFP28 optics, fiber-optic networking products, enterprise switches, data center equipment, telecom networking products, and high-speed optical connectivity solutions with competitive pricing, technical consultation, deployment assistance, and nationwide delivery throughout Bangladesh.

Key Features

• 100Gbps high-speed optical connectivity
• QSFP28 compact pluggable form factor
• 100GBASE-LR4 optical standard
• 1310nm optical transmission
• Up to 10km transmission distance
• Designed for single-mode fiber infrastructure
• Duplex LC optical connector
• Four-wavelength optical transmission
• Digital Diagnostic Monitoring (DDM) support
• Hot-pluggable design
• Suitable for long-distance 100G Ethernet connectivity
• Ideal for data center and telecom network expansion

Applications

• 100G Data Center Interconnect
• Long-Distance Data Center Networking
• Telecom Backbone Networks
• Metro Optical Networks
• Enterprise Backbone Connectivity
• Campus Network Interconnect
• 100G Ethernet Network Expansion
• Switch-to-Switch Long-Distance Links
• Router-to-Router Optical Connectivity
• High-Bandwidth Single-Mode Fiber Networks

100GBASE-LR4 Long-Reach Optical Connectivity

100GBASE-LR4 is designed for long-reach 100Gbps Ethernet connectivity over single-mode fiber. The 6Com QSFP-100G-LR4-S uses multiple optical wavelengths in the 1310nm region to carry the 100Gbps data stream across a duplex fiber connection.

With support for distances up to 10km, the module is particularly useful when network devices are separated by distances beyond the practical range of short-reach multimode optical modules. This makes it suitable for data center interconnects, telecom infrastructure, metro networks, and extended enterprise backbone links.

QSFP28 Form Factor

The QSFP28 form factor provides a compact and high-density interface for 100Gbps networking applications. Compatible switches, routers, network adapters, and optical transport equipment can use QSFP28 ports to provide modular 100G optical connectivity.

The hot-pluggable design also simplifies installation, replacement, and network expansion in supported equipment without requiring a complete shutdown of the host platform.

1310nm Single-Mode Fiber Connectivity

The 6Com QSFP-100G-LR4-S operates in the 1310nm optical window and is designed for single-mode fiber. This combination is well suited to extended-distance optical transmission and is commonly used for high-bandwidth network links where longer reach is required.

The duplex LC connector provides separate transmit and receive optical paths and is compatible with widely deployed LC-based single-mode fiber cabling infrastructure.

Compatibility

• Cisco-compatible 100G QSFP28 platforms
• Huawei-compatible 100G QSFP28 platforms
• Juniper-compatible 100G QSFP28 platforms
• Arista-compatible 100G QSFP28 platforms
• Mellanox-compatible 100G QSFP28 platforms
• Dell-compatible 100G QSFP28 platforms
• Brocade-compatible 100G platforms
• Extreme Networks-compatible 100G platforms
• H3C-compatible 100G QSFP28 platforms
• ZTE-compatible 100G QSFP28 platforms

Exact compatibility depends on the host device, firmware, transceiver coding, supported optics list, and platform requirements. Always verify compatibility with the specific switch, router, NIC, or optical transport equipment before deployment.

Benefits

• 100Gbps high-bandwidth optical connectivity
• Up to 10km transmission reach
• 1310nm single-mode fiber technology
• Duplex LC connector for convenient fiber integration
• Compact QSFP28 form factor
• Hot-pluggable optical module
• DDM support for optical monitoring
• Suitable for long-distance network interconnects
• Ideal for telecom and data center infrastructure
• Suitable for enterprise backbone applications

Why Buy from Datacom Technologies (BD)?

Datacom Technologies (BD) supplies networking and data center infrastructure products in Bangladesh, including 6Com optical transceivers, QSFP28 modules, SFP/SFP28 optics, fiber-optic equipment, enterprise switches, server networking components, telecom equipment, and high-speed data center connectivity solutions. Customers can receive competitive pricing, technical consultation, deployment assistance, and after-sales support.

• Call/WhatsApp: +8801748173213
• Email: sales@datacom.com.bd
• Alternative Email: datacomtechnologiesbd@gmail.com
• Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh

Frequently Asked Questions (FAQ)

Q1: What is the data rate of the 6Com QSFP-100G-LR4-S?
The module provides 100Gbps-class optical connectivity.

Q2: What form factor does the 6Com QSFP-100G-LR4-S use?
It uses the QSFP28 pluggable form factor.

Q3: What is the optical wavelength of the 6Com QSFP-100G-LR4-S?
The module operates around the 1310nm optical window.

Q4: What is the maximum transmission distance?
The 6Com QSFP-100G-LR4-S is designed to support optical links up to 10km over suitable single-mode fiber.

Q5: What type of fiber does the module use?
It is designed for single-mode fiber (SMF).

Q6: What connector does this 100G LR4 transceiver use?
The module uses a duplex LC optical connector.

Q7: Is the 6Com QSFP-100G-LR4-S suitable for data centers?
Yes. It is well suited for 100G data center interconnects, long-distance switch-to-switch links, and other high-bandwidth data center applications.

Q8: Does the module support DDM?
Yes. The module supports Digital Diagnostic Monitoring for monitoring supported optical and operating parameters.

Q9: Is the 6Com QSFP-100G-LR4-S hot-pluggable?
Yes. It is designed as a pluggable QSFP28 optical module for compatible host equipment.

Q10: Can this module be used with multimode fiber?
No. The LR4 architecture is designed for single-mode fiber. Use appropriate single-mode fiber and compatible LC cabling for the optical link.

Q11: Can two different brands of 100G LR4 modules be connected together?
Interoperability may be possible when the optical specifications, standards, coding, and host equipment requirements match. Compatibility should be verified before deployment.

Q12: Where can I buy the 6Com QSFP-100G-LR4-S 10km optical transceiver in Bangladesh?
You can contact Datacom Technologies (BD) for 6Com 100G QSFP28 LR4 optical transceivers, fiber-optic networking products, data center equipment, and telecom connectivity solutions with competitive pricing and nationwide delivery.
