AFL FS200 OTDR Tester – Fiber Optic OTDR

AFL FS200 OTDR Tester for Fiber Optic Network Testing

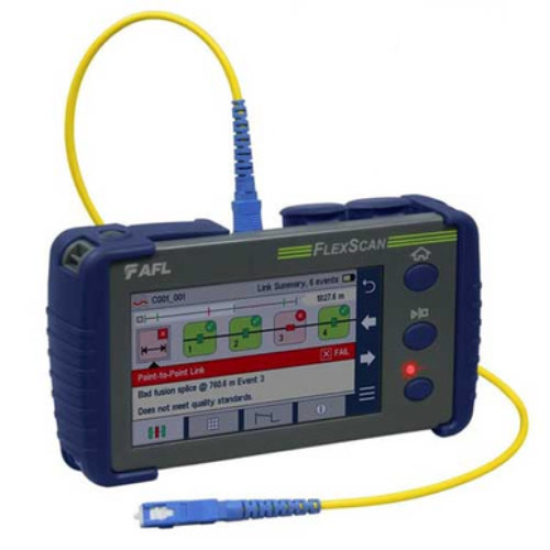

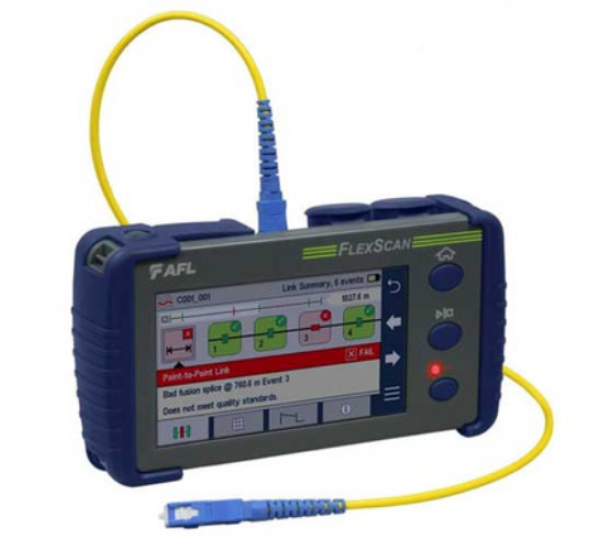

The AFL FlexScan FS200 OTDR is a compact, handheld optical time-domain reflectometer designed for testing, troubleshooting, and characterizing single-mode fiber optic networks. It helps technicians locate fiber breaks, connector events, splice losses, and other optical-link problems in fiber-to-the-home (FTTH), passive optical network (PON), and point-to-point installations.

Its SmartAuto testing and LinkMap visual results simplify fiber analysis by presenting network events in an easy-to-understand format. Depending on the selected configuration, the FS200 can also support optical power measurement, light-source testing, and visual fault location in one portable device.

Key Capabilities and Applications

• Fiber Fault Detection: Identifies and helps locate faults, connectors, splices, and other events along a fiber link.
• Single-Mode OTDR Testing: Available in wavelength configurations such as 1310/1550 nm and selected triple-wavelength options.
• PON Network Troubleshooting: Supported configurations can test passive optical networks with splitter ratios up to 1:64.
• Easy-to-Interpret Results: SmartAuto analysis and LinkMap displays help technicians assess network events and test results.
• Portable Field Operation: Its handheld design is suitable for technicians working at customer premises, distribution points, fiber cabinets, and network sites.

Typical Applications

• FTTH and GPON fiber network installation and maintenance
• Point-to-point single-mode fiber testing
• Optical distribution network troubleshooting
• Fiber link fault location and loss analysis
• Telecommunications and fiber infrastructure maintenance

Configuration and Compatibility

The AFL FS200 family is available in multiple configurations with different OTDR wavelengths, dynamic ranges, and optional functions. Integrated optical power meter, optical light source, visual fault locator, wireless connectivity, and kit accessories may vary by model or package. Confirm the complete model code, connector type, wavelength configuration, and included accessories before ordering.

AFL FS200 OTDR Price in Bangladesh

For the AFL FS200 OTDR tester price in Bangladesh, product availability, configuration options, and purchasing information, contact Datacom Technologies (BD). Pricing may vary according to the selected model, test functions, accessories, warranty, sourcing, and current stock.

Contact our team at sales@datacom.com.bd to confirm the required configuration and request a quotation.
