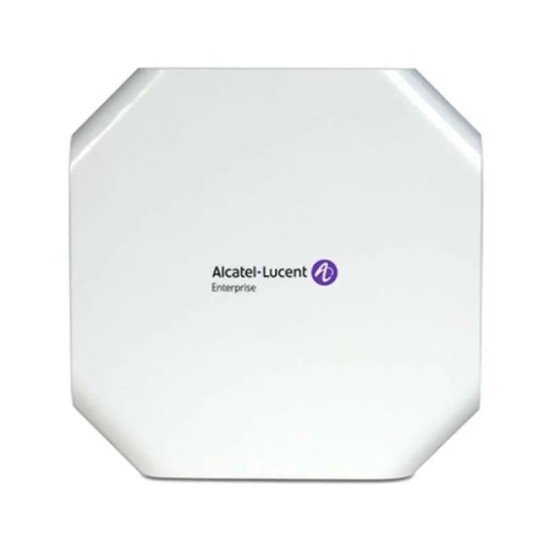

Alcatel-Lucent 650 Enterprise AP
The
Alcatel-Lucent 650 Enterprise AP is a high-performance indoor Wi-Fi 6 solution designed for enterprise environments. With a maximum throughput of up to 4.8 Gbps, dual 4x4:4 MIMO radios, and support for both 2.4 GHz and 5 GHz bands, it ensures seamless connectivity for up to 1,024 clients. Supporting advanced features like OFDMA/OFDM and up to 16 SSIDs per access point, this device delivers robust and efficient wireless performance for large-scale deployments.
Specification
| Specification |
Details |
| Wi-Fi Standard |
802.11ax (Wi-Fi 6) |
| Usage |
Indoor Enterprise Deployments |
| Maximum Throughput |
Up to 4.8 Gbps |
| Number of Radios |
2 (Dual Radio) |
| Supported Bands |
2.4 GHz and 5 GHz |
| Radio MIMO Type |
4x4:4 |
| OFDMA/OFDM |
Supported |
| Maximum Number of SSIDs |
Up to 16 per AP |
| Maximum Number of Associated Clients |
Up to 1024 per AP |
| Maximum Transmit Power |
23 dBm per radio chain |
| Integrated Antennas |
Yes |
| Antenna Peak Gain |
2.4 GHz: 4.5 dBi; 5 GHz: 5.5 dBi |
| RF Connectors |
None (Integrated Antennas) |
| TPM Module |
Yes |
| Network Interfaces |
1x 2.5GBASE-T Ethernet Port |
| USB Host Interface |
Yes (USB 2.0) |
| BLE or Zigbee |
BLE 5.0 Supported |
| PoE Powered |
Yes (802.3at) |
| PoE PSE |
No |
| DC Power Support |
Optional (12V DC) |
| Operating Temperature Range |
0°C to 50°C |
| Enclosure Volume |
2000 cm³ |
| Weight |
800 grams |
| Rating |
Plenum Rated |
| Deep Packet Inspection |
Supported |
| Maximum Power Consumption |
20W (excluding USB) |
| Shipped with Mounting Kit |
Yes |
Description:
The
Alcatel-Lucent OmniAccess Stellar AP650 is a high-performance indoor access point designed to meet the demands of modern enterprise environments. Leveraging the latest 802.11ax
(Wi-Fi 6) technology, it offers enhanced network efficiency and capacity, providing a maximum throughput of up to 4.8 Gbps. The dual-radio design supports both 2.4 GHz and 5 GHz bands, utilizing 4x4:4 MIMO for improved coverage and reliability. With support for Orthogonal Frequency-Division Multiple Access (OFDMA), the AP650 efficiently manages multiple client connections, reducing latency and improving overall network performance. It can handle up to 16 SSIDs and supports up to 1024 associated clients per access point, making it suitable for high-density environments.
Integrated antennas with peak gains of 4.5 dBi (2.4 GHz) and 5.5 dBi (5 GHz) ensure optimal signal strength. The AP650 features a 2.5GBASE-T Ethernet port for high-speed wired connectivity and supports Power over Ethernet (PoE 802.3at) for flexible installation. Additional features include BLE 5.0 support for IoT applications, deep packet inspection for enhanced security, and a plenum-rated enclosure for safe deployment in various indoor settings. Its compact design and included mounting kit facilitate easy installation on walls or ceilings, making it a versatile solution for enterprises seeking robust and scalable wireless networking.
Key Features
- High-Performance Connectivity: Supports the latest Wi-Fi 6 (802.11ax) technology for faster speeds and increased capacity. Dual-radio architecture with up to 4x4 MIMO for superior performance. Seamless roaming and low-latency connectivity for uninterrupted service.
- Enhanced Security: Integrated WPA3 and advanced encryption standards to protect data. Built-in threat detection and prevention for robust network security. Secure guest access with customizable login portals.
- Scalability and Flexibility: Easily integrates into existing network infrastructures. Supports centralized management through Alcatel-Lucent’s OmniVista 2500 Network Management System. Ideal for high-density environments with adaptive load balancing.
- Advanced Management Features: Real-time analytics and monitoring for proactive network maintenance. Automated software updates to ensure optimal performance. Remote configuration and troubleshooting to reduce downtime.
Where Can the Alcatel-Lucent 650 Enterprise Access Point Be Used?
- Corporate Offices: High-speed and reliable connectivity for seamless collaboration.
- Educational Institutions: Supports high-density environments with multiple connected devices.
- Healthcare Facilities: Ensures secure and fast data transmission for patient care systems.
- Retail Environments: Provides fast, reliable Wi-Fi to enhance customer experience and support point-of-sale systems.
- Hospitality and Tourism: Delivers exceptional guest Wi-Fi with seamless roaming and high-speed internet.
Installation Steps
- Pre-Installation Planning: Conduct a site survey to determine optimal access point placement. Verify network requirements and power availability (PoE or AC).
- Mounting the Device: Use the included mounting kit to secure the access point to the ceiling or wall. Ensure adequate ventilation and unobstructed signal paths.
- Connecting to the Network: Connect the Ethernet cable to the designated port. Connect to a power source if not using Power over Ethernet (PoE).
- Configuration and Setup: Access the device through the web interface or OmniVista 2500. Configure SSIDs, security settings, and VLAN configurations. Update firmware to the latest version.
- Testing and Monitoring: Perform connectivity and speed tests to ensure optimal performance. Monitor device performance through the network management system.
User Experience
Users experience uninterrupted, high-speed connectivity even in high-density environments. With enhanced security protocols and advanced management features, IT administrators can easily maintain the network while ensuring robust performance. Guests and employees alike enjoy smooth, lag-free connections and seamless roaming between access points.
Why Choose the Alcatel-Lucent 650 Enterprise Access Point?
- Superior Performance: The latest Wi-Fi 6 technology ensures top-tier speeds and reliability.
- Robust Security: Advanced encryption and security measures protect sensitive data.
- Easy Management: Centralized control through OmniVista 2500 saves time and resources.
- Versatile Applications: Ideal for various environments, from corporate to retail and healthcare.
- Cost-Effective Solution: Delivers high performance without compromising affordability.
Buy Alcatel-Lucent 650 Enterprise AP from Datacom
In Bangladesh, you can get original Alcatel-Lucent 650 Enterprise AP From
Datacom. We have a large collection of latest
Alcatel-Lucent Access Point to purchase. Order Online Or Visit our Office to get yours at lowest price. The Alcatel-Lucent 650 Enterprise AP comes with 1-year warranty.
- ? Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of Alcatel-Lucent 650 Enterprise Access Point in Bangladesh?
The latest price of
Alcatel-Lucent 650 Enterprise AP in Bangladesh is 40,000৳. You can buy the Alcatel-Lucent 650 Enterprise Access Point at best price from our website.
