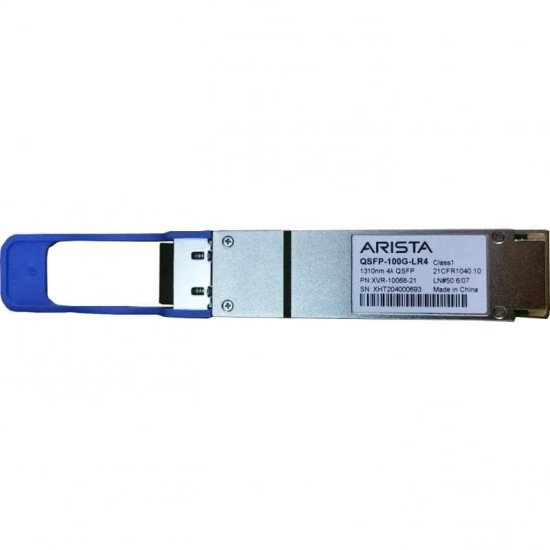

About Arista XVR-10068-21 QSFP-100G-LR4 100GBASE-LR4 10km Transceiver in Bangladesh
The Arista XVR-10068-21 is a QSFP-100G-LR4 optical transceiver designed for 100GbE networking over single-mode fiber. Supporting the 100GBASE-LR4 standard, the module provides up to 10km transmission over 9µm single-mode fiber and is designed for compatible Arista data center and enterprise networking platforms.
The XVR-10068-21 is identified as the Arista QSFP-100G-LR4 and is specified as a 100GBASE-LR4 QSFP transceiver with up to 10km reach over duplex single-mode fiber. :contentReference[oaicite:2]{index=2}
Arista XVR-10068-21 QSFP-100G-LR4 Specifications & Features
| Specification | Details |
|---|
| Brand | Arista |
| Part Number | XVR-10068-21 |
| Model | QSFP-100G-LR4 |
| Network Speed | 100Gbps |
| Optical Standard | 100GBASE-LR4 |
| Maximum Reach | 10km |
| Fiber Type | 9µm Single-Mode Fiber (SMF) |
| Form Factor | QSFP28 |
| Connector | Duplex LC |
| Application | 100GbE Data Center / Enterprise Networking |
Overview
The Arista XVR-10068-21 QSFP-100G-LR4 is a high-speed 100GbE optical transceiver for long-reach data center and enterprise network connections. It uses the 100GBASE-LR4 optical standard and supports transmission distances of up to 10km over 9µm single-mode fiber.
Arista's official transceiver information lists 100GBASE-LR4 among its 100G optical QSFP options and specifies 9µm single-mode fiber with a 10km reach. :contentReference[oaicite:3]{index=3}
Buy Arista XVR-10068-21 100G QSFP-LR4 in Bangladesh
Purchase the Arista XVR-10068-21 QSFP-100G-LR4 100GBASE-LR4 10km optical transceiver from Datacom Technologies (BD). We supply Arista networking optics, data center switches, optical transceivers and enterprise network infrastructure in Bangladesh with competitive pricing, technical consultation and nationwide delivery.
Key Features
- 100Gbps Ethernet connectivity
- 100GBASE-LR4 optical standard
- Up to 10km transmission distance
- 9µm single-mode fiber support
- QSFP28 form factor
- Duplex LC optical interface
- Designed for long-distance 100GbE links
- Suitable for data center interconnects
- Suitable for enterprise network uplinks
- Designed for compatible Arista networking platforms
Applications
- Arista Data Center Switches
- 100GbE Network Uplinks
- Data Center Interconnects
- Enterprise Core Networking
- Leaf-Spine Network Architectures
- Server and Storage Network Uplinks
- Campus and Metropolitan Network Connections
- High-Speed Network Infrastructure
- Long-Distance Data Center Links
- Cloud and Enterprise Networking
100GbE High-Speed Connectivity
The XVR-10068-21 provides 100Gbps Ethernet connectivity for high-bandwidth network environments. Its 100GBASE-LR4 architecture is designed for applications requiring significantly more bandwidth than 10GbE, 25GbE and 40GbE connections.
It is suitable for high-performance data center networks, aggregation links, core networking and interconnection between network infrastructure located up to 10km apart when the appropriate optical infrastructure is used.
100GBASE-LR4 Optical Standard
The XVR-10068-21 uses the 100GBASE-LR4 optical standard. Arista identifies 100GBASE-LR4 as a 100G optical QSFP technology supporting up to 10km over 9µm single-mode fiber. :contentReference[oaicite:4]{index=4}
LR4 is intended for long-reach 100GbE connectivity compared with shorter-reach multimode optics such as 100GBASE-SR4.
10km Transmission Distance
The XVR-10068-21 supports transmission distances of up to 10km over duplex single-mode fiber. :contentReference[oaicite:5]{index=5}
This makes the transceiver suitable for connecting network switches across different data center areas, buildings, campuses or other locations where the fiber path is within the supported optical budget.
Single-Mode Fiber Support
The XVR-10068-21 is designed for 9µm single-mode fiber (SMF). Arista's transceiver catalog specifies 9µm SMF for 100GBASE-LR4 with a 10km reach. :contentReference[oaicite:6]{index=6}
Single-mode fiber is appropriate for long-distance optical networking and provides substantially greater reach than typical multimode-fiber solutions.
QSFP28 Form Factor
The QSFP28 form factor is widely used for 100GbE optical networking. It provides a compact pluggable interface suitable for high-density data center switch deployments.
Before installation, confirm that the target Arista switch or network device supports the specific XVR-10068-21 optic and the required 100GBASE-LR4 configuration.
Duplex LC Connectivity
The XVR-10068-21 uses a duplex LC optical connection for the single-mode fiber link. A compatible duplex LC single-mode fiber cable is required for a standard point-to-point connection.
Data Center Interconnect
The 10km reach of 100GBASE-LR4 makes the XVR-10068-21 suitable for data center interconnect applications where high bandwidth is required between network locations.
It can be deployed for connections between leaf and spine infrastructure, aggregation layers, core switches and other compatible 100GbE networking equipment.
Arista Network Compatibility
Arista's documentation lists 100GBASE-LR4 among the supported optics for multiple 100G QSFP platforms. For example, Arista's 7170 Series documentation lists 100GBASE-LR4 with a 10km single-mode duplex reach, while the 7368X4 and 7500R documentation also list 100GBASE-LR4 as a supported 100G optical type. :contentReference[oaicite:7]{index=7}
Actual optic support depends on the exact Arista switch model and EOS release. Always check the appropriate Arista transceiver compatibility documentation before deployment.
Long-Distance 100GbE Networking
Compared with short-reach 100G optics designed for multimode fiber, LR4 provides a significantly longer optical reach. This makes it suitable for network infrastructure where the endpoints cannot be connected using short multimode fiber runs.
High-Bandwidth Network Applications
The XVR-10068-21 is suitable for high-bandwidth applications such as data center aggregation, spine-leaf networking, storage networking, cloud infrastructure and enterprise core links.
- 100GbE uplinks
- Data center spine links
- Leaf-to-spine connectivity
- Core network connections
- Data center interconnects
- Cloud infrastructure
- Storage network infrastructure
- Enterprise network aggregation
Arista XVR-10068-21 vs 100GBASE-SR4
| Feature |
Arista XVR-10068-21 |
Typical 100GBASE-SR4 Optic |
| Network Speed |
100Gbps |
100Gbps |
| Optical Standard |
100GBASE-LR4 |
100GBASE-SR4 |
| Fiber |
9µm SMF |
Multimode Fiber |
| Maximum Reach |
10km |
Short-reach, model dependent |
| Connector |
Duplex LC |
Typically MPO/MTP |
| Primary Application |
Long-distance 100GbE |
Short-distance data center links |
Compatibility Considerations
The XVR-10068-21 should be installed only in a compatible QSFP28-capable 100GbE port.
- Verify the switch supports QSFP28 100GbE optics
- Verify 100GBASE-LR4 support
- Use compatible 9µm single-mode fiber
- Use appropriate duplex LC connectivity
- Check required EOS software support
- Verify optical power budget for the complete link
Arista specifically advises checking its transceiver and cable documentation for supported platforms. :contentReference[oaicite:8]{index=8}
Benefits
- 100Gbps network bandwidth
- 10km optical reach
- 100GBASE-LR4 standard
- 9µm single-mode fiber support
- QSFP28 form factor
- Duplex LC connectivity
- Suitable for data center interconnects
- Suitable for high-speed network uplinks
- Ideal for long-distance 100GbE infrastructure
- Designed for compatible Arista networking platforms
Why Buy from Datacom Technologies (BD)?
Datacom Technologies (BD) supplies Arista optical transceivers, data center switches, network modules, fiber connectivity products and enterprise networking equipment in Bangladesh. Customers can receive competitive pricing, technical consultation, deployment assistance and nationwide delivery.
- Call/WhatsApp: +8801748173213
- Email: sales@datacom.com.bd
- Alternative Email: datacomtechnologiesbd@gmail.com
- Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh
Frequently Asked Questions (FAQ)
Q1: What is the Arista XVR-10068-21?
The XVR-10068-21 is an Arista QSFP-100G-LR4 optical transceiver designed for 100GBASE-LR4 networking over single-mode fiber.
Q2: What is the data rate?
The transceiver is designed for 100GbE networking.
Q3: What is the maximum transmission distance?
The XVR-10068-21 supports up to 10km over duplex single-mode fiber. :contentReference[oaicite:9]{index=9}
Q4: What fiber type does it use?
It uses 9µm single-mode fiber (SMF). :contentReference[oaicite:10]{index=10}
Q5: What optical standard does XVR-10068-21 use?
It uses the 100GBASE-LR4 standard.
Q6: What form factor does the module use?
It is a QSFP28 optical transceiver.
Q7: What connector does it use?
The LR4 configuration uses a duplex LC optical interface.
Q8: Is XVR-10068-21 suitable for data center interconnects?
Yes. Its 100Gbps bandwidth and up to 10km single-mode-fiber reach make it suitable for many long-distance data center and enterprise network connections.
Q9: Can it be used with any 100G QSFP port?
No. The target network device must support the specific 100GBASE-LR4 optic and the required Arista EOS/platform configuration.
Q10: Is LR4 suitable for single-mode fiber?
Yes. Arista specifies 9µm single-mode fiber for 100GBASE-LR4. :contentReference[oaicite:11]{index=11}
Q11: What is the difference between LR4 and SR4?
100GBASE-LR4 is designed for long-distance links over single-mode fiber, with Arista specifying up to 10km. SR4 is intended for shorter data center links over multimode parallel fiber. :contentReference[oaicite:12]{index=12}
Q12: Where can I buy Arista XVR-10068-21 in Bangladesh?
You can contact Datacom Technologies (BD) for Arista optical transceivers, network switches, data center networking products and enterprise infrastructure with competitive pricing and nationwide delivery.
