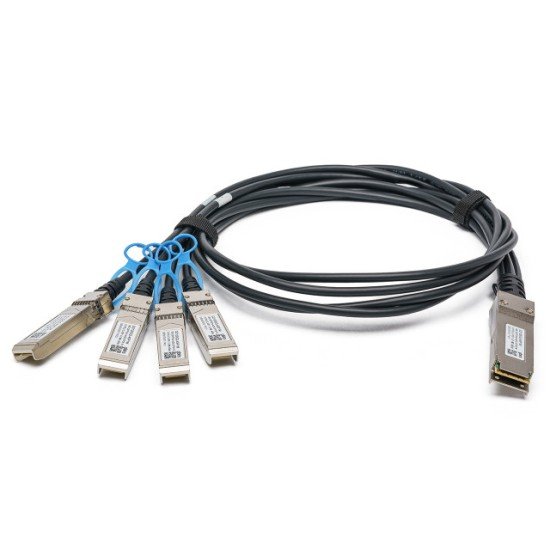

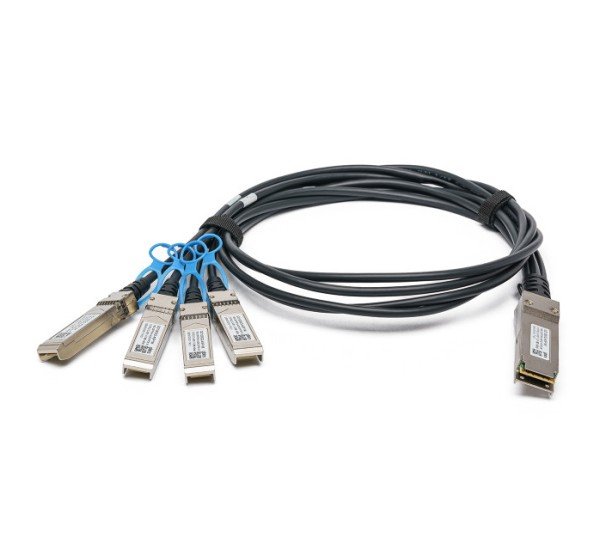

About CAB-Q-4S-100G-5M - Arista Compatible 5 Metre 100G QSFP28 to 4x25G SFP28 Passive Direct Attach Copper Breakout Cable
Datacom Technologies BD is a leading provider of networking solutions in Bangladesh. We offer a wide range of products and services, including network infrastructure, security solutions, and data center equipment. Our team of experts is dedicated to providing exceptional customer service and helping businesses achieve their networking goals.
Product Specification
| Parameter |
Value |
| Cable Type |
Direct Attach Copper Breakout Cable |
| Connector A |
1x QSFP28 |
| Connector B |
4x SFP28 |
| Data Rate |
100 Gb/s |
| Cable Length |
5 meters (16.4 ft) |
| Cable Impedance |
100 Ω |
| Wire Gauge |
24 AWG |
| Minimum Bend Radius |
45 mm |
| Cable Jacket Type |
PVC |
| Digital Diagnostic Monitoring |
N/A |
| Environment |
Operating: 0°C to 70°C, Storage: -40°C to 85°C |
| Weight |
0.9 kg |
| Applications |
25G, 100G Ethernet (25GBASE-CR, 100GBASE-CR4) Intra-Rack System, Top of Rack (ToR), Middle of Rack (MoR) Switch, Storage, Server, NIC Switch-to-Switch, Switch-to-Server |
| Compliance |
IEEE802.3bj, InfiniBand EDR |
Description
The
Arista CAB-Q-4S-100G-5M Direct Attach Copper Breakout Cable is a high-performance interconnection solution designed for data centers and high-speed networking environments. This cable provides a cost-effective and reliable way to connect devices that support 100 Gigabit Ethernet (100GBASE-CR4) and 25 Gigabit Ethernet (25GBASE-CU) interfaces.
The cable features a QSFP28 connector on one end and four SFP28 connectors on the other, allowing for flexible connectivity options. It is a passive cable, meaning it does not require external power to operate. This makes it ideal for short-distance connections within racks or between adjacent racks, as it reduces power consumption and simplifies deployment.
The CAB-Q-4S-100G-5M cable is designed to meet the demanding requirements of modern data centers. It is built with high-quality materials and is engineered to provide reliable performance even in harsh environments. The cable's low profile and small form factor make it easy to install and manage.
Supported/Comparable Models
The Arista CAB-Q-4S-100G-5M cable is compatible with a wide range of Arista networking equipment, including switches, routers, and servers that support 100GBASE-CR4 and 25GBASE-CU interfaces. It is also compatible with other vendor equipment that meets the same standards.
Some comparable models from other vendors include:
Cisco DAC-QSFP28-SFP28-5M
HPE QSFP28-SFP28-DAC-5M
Mellanox ConnectX-5 QSFP28-SFP28-DAC-5M
How much does the Arista CAB-Q-4S-100G-5M Direct Attach Copper Breakout Cable cost in Bangladesh?
The price of the Arista CAB-Q-4S-100G-5M Direct Attach Copper Breakout Cable can vary depending on market conditions and purchase volume. Since prices can fluctuate, they might not be listed online. However, contacting Datacom Technologies Bangladesh can get you a competitive quote based on your needs. Visit our website
Datacom Technologies (BD) or reach out through
WhatsApp: +8801748173213 or email: sales@datacomtechbd.com or datacomtechnologiesbd@gmail.com.
