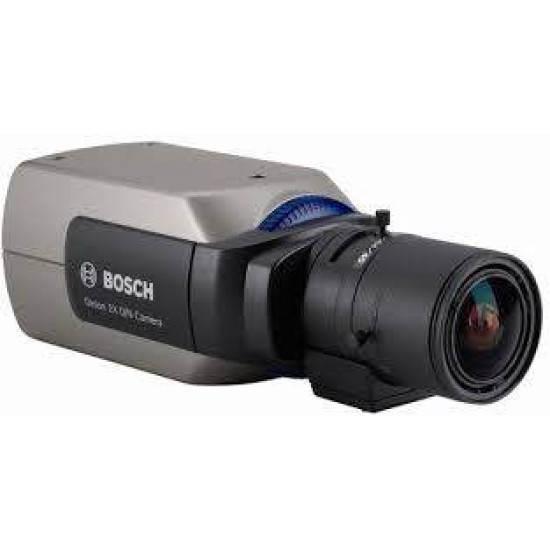

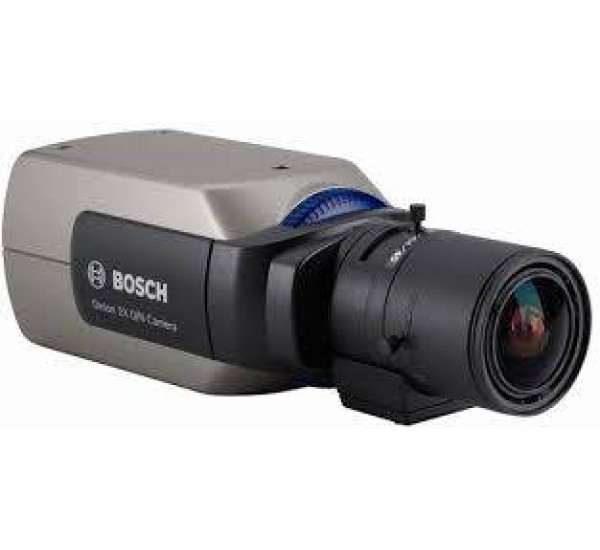

Bosch LTC 0498 – Dinion Day/Night Analog Camera | Professional CCTV Surveillance Camera
The Bosch LTC 0498 Dinion Day/Night Analog Camera is a professional high-performance CCTV surveillance camera designed for advanced security monitoring in commercial and industrial environments. Part of the Bosch DinionXF series, this camera features a 1/3-inch wide dynamic range CCD sensor and 540 TVL resolution, delivering clear and detailed images in both bright and low-light conditions.
With advanced technologies such as 20-bit digital signal processing, XF-Dynamic wide dynamic range, and SensUp low-light enhancement, the camera provides excellent image quality even in challenging lighting environments. These features make it suitable for high-security surveillance applications where reliable monitoring is essential.
SPECIFICATION TABLE
| Feature | Details |
|---|
| Product Name | Bosch LTC 0498 Dinion Day/Night Analog Camera |
| Brand | Bosch Security Systems |
| Camera Type | Analog CCTV Box Camera |
| Image Sensor | 1/3-inch Wide Dynamic Range CCD |
| Resolution | 540 TV Lines |
| Active Pixels | 752 × 582 (PAL) / 768 × 494 (NTSC) |
| Minimum Illumination | Up to 0.0038 lux with SensUp |
| Signal-to-Noise Ratio | >50 dB |
| Lens Mount | C / CS Mount |
| Video Output | Composite Video 1 Vp-p, 75Ω |
| Power Supply | 12 VDC / 24 VAC / 120-230 VAC |
| Power Consumption | Approx. 4 W |
| Operating Temperature | -20°C to +55°C |
| Dimensions | 58 × 66 × 122 mm |
| Weight | Approx. 450 g |
| Application | Professional CCTV surveillance systems |
Bosch LTC 0498 Dinion Day/Night Camera Description
The Bosch LTC 0498 Dinion2X Day/Night Camera is engineered for professional surveillance installations where high image clarity and reliability are required. The camera utilizes a 1/3-inch CCD sensor with advanced 20-bit digital signal processing, which significantly improves sensitivity and image accuracy.
The XF-Dynamic and 2X-Dynamic technologies allow the camera to capture clear images even in scenes with extreme lighting differences, such as entrances, parking areas, and outdoor security zones. This ensures both bright and dark areas are visible in the same frame.
The camera also features SensUp dynamic low-light technology, which increases the CCD integration time up to 10×, enabling the camera to produce usable images even under very low illumination conditions.
Another important capability is Bilinx bidirectional communication, allowing installers to remotely configure camera settings, check system status, and update firmware using the standard coaxial video cable. This reduces installation complexity and maintenance time in large surveillance networks.
Due to its advanced imaging capabilities and durable design, the Bosch LTC 0498 camera is widely used in airports, tunnels, parking facilities, casinos, industrial sites, ports, and military security systems.
KEY FEATURES
540 TVL high-resolution analog CCTV camera
1/3-inch Wide Dynamic Range CCD sensor
20-bit digital signal processing for enhanced image quality
XF-Dynamic and 2X-Dynamic wide dynamic range technology
SensUp low-light enhancement up to 10×
Automatic Day/Night switching (color / monochrome)
Bilinx communication for remote configuration
SmartBLC backlight compensation
Compatible with C/CS mount lenses
WHERE IT CAN BE USED
Commercial CCTV surveillance systems
Airports and transportation hubs
Banks and financial institutions
Shopping malls and retail stores
Industrial facilities and warehouses
Parking areas and tunnels
Military and high-security environments
