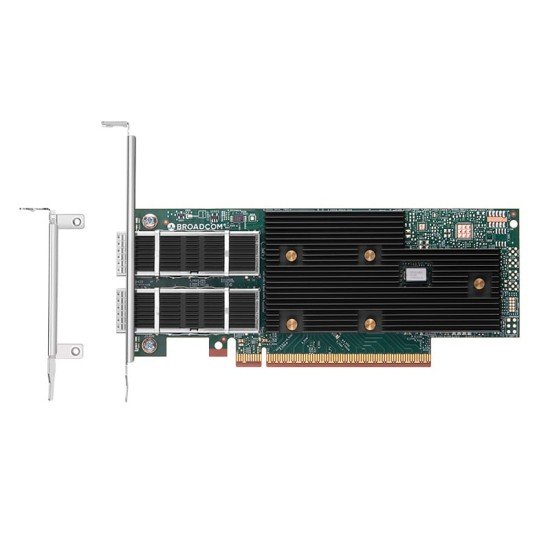

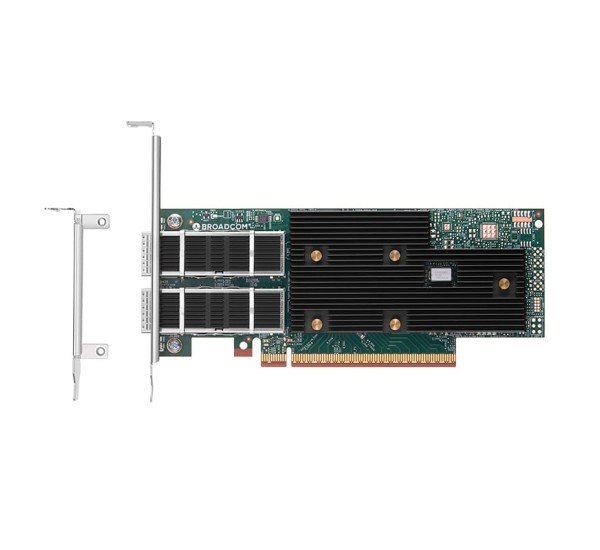

Broadcom 200G Dual-Port QSFP112 Network Adapter | BCM957608-P2200GQF00
Specification Table
| Attribute |
Details |
| Model |
Broadcom BCM957608-P2200GQF00 |
| Product Name |
200G Dual-Port QSFP112 Network Adapter |
| Chipset |
Broadcom BCM7608 |
| Interface |
PCIe Gen 5.0 x16 |
| Port Configuration |
Dual-Port QSFP112 |
| Data Rate |
2 × 100Gbps (200Gbps Total) |
| Connector Type |
QSFP112 |
| Form Factor |
Standard and low-profile brackets included |
| Supported Cables |
DAC, AOC, Active Optical Cables, Optical Transceivers |
| RoHS Compliant |
Yes |
| Operating Temperature |
0°C to 55°C |
| Power Consumption |
~< 25W (typical) |
| Compatibility |
Windows, Linux (RHEL, Ubuntu), VMware, FreeBSD |
| Use Case |
Data centers, AI/ML clusters, High-Performance Computing |
? Description:
The Broadcom BCM957608-P2200GQF00 is a high-performance 200G Dual-Port Network Adapter designed to meet the intensive data demands of modern enterprise and cloud data centers. Featuring two QSFP112 ports, it delivers a combined throughput of up to 200Gbps, making it ideal for applications requiring ultra-low latency, high bandwidth, and reliable connectivity — such as AI workloads, machine learning training environments, and HPC systems.
This adapter leverages PCIe Gen 5.0 x16 to maximize data throughput while minimizing bottlenecks. With Broadcom’s BCM7608 controller, users benefit from optimized I/O processing and superior network acceleration. The device supports a wide range of optical and copper interconnects, including DACs, AOCs, and transceivers — offering deployment flexibility.
Engineered with robust thermal design, it includes both standard and low-profile brackets to fit a variety of server chassis. It also supports popular operating systems like Linux, Windows, and VMware, ensuring easy integration into existing infrastructure.
If you need blazing-fast performance, high reliability, and efficient power use in demanding environments, the Broadcom BCM957608-P2200GQF00 is a premium solution tailored for next-gen data center networking.
? Key Features
- Model: BCM957608-P2200GQF00
- Form Factor: PCIe 5.0 x16
- Ports: Dual-Port QSFP112 (2x 200Gbps)
- Controller: Broadcom BCM57608
- Interface: PCI Express Gen 5.0
- Throughput: Up to 400Gbps aggregate
- Advanced Offloads: VXLAN, NVGRE, GENEVE, RoCEv2
- Security: Secure Boot, Secure Firmware Update
- Virtualization Support: SR-IOV, NIC partitioning
- Energy Efficient: Adaptive power management
? Where it Can Be Used?
- Data Centers
- Enterprise Cloud Environments
- High-Performance Computing (HPC)
- Telecommunication Infrastructure
- AI/ML Workload Accelerators
?️ Installation Steps
- Power Off Server: Shut down and unplug the server.
- Insert NIC: Install the adapter into an available PCIe x16 slot.
- Secure the Card: Use a screw or retention clip to lock it in place.
- Connect Cables: Attach QSFP112 optical or DAC cables.
- Power On & Driver Install: Boot the system and install Broadcom driver/software.
- Configure Network: Set up IP, VLANs, SR-IOV, or offloads via OS or management tools.
? User Experience
Users report exceptionally low latency, stable throughput, and easy virtualization setup. IT admins appreciate the card’s broad OS compatibility, secure firmware updates, and energy efficiency. High data transfer makes it ideal for demanding applications like AI and big data workloads.
✅ Why Choose Broadcom 200G Dual-Port QSFP112 Network Adapter?
- Designed for next-gen data centers demanding ultra-high speed.
- Dual-port flexibility offers redundancy and better traffic management.
- Backed by Broadcom’s industry-leading performance and reliability.
- Ideal for scalable deployments, virtualization, and cloud applications.
- Compatible with standard server platforms and supported by major OS vendors.
Buy Broadcom 200G Dual-Port QSFP112 Network Adapter | BCM957608-P2200GQF00 at the Best Price from Datacom BD Online
In Bangladesh, you can get Broadcom 200G Dual-Port QSFP112 Network Adapter | BCM957608-P2200GQF00 From
Datacom. We have a large collection of latest Broadcom Server Network Card to purchase. Order Online Or Visit our Office to get yours at lowest price. The Broadcom 200G Dual-Port QSFP112 Network Adapter comes with 1 Year warranty.
- ? Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of Broadcom 200G Dual-Port QSFP112 Network Adapter | BCM957608-P2200GQF00 in Bangladesh?
The estimated price of Broadcom 200G Dual-Port QSFP112 Network Adapter | BCM957608-P2200GQF00 in Bangladesh is 185,500৳. You can buy the Broadcom 200G Dual-Port QSFP112 Network Adapter at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
