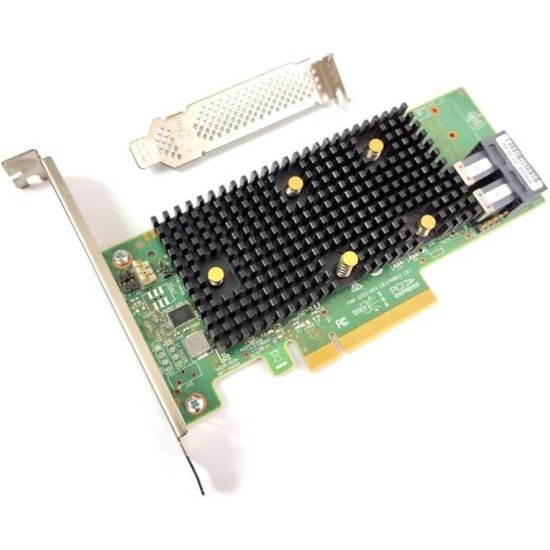

Broadcom 9560-16i 9500 RAID adapter

About Broadcom 9560-16i 9500 RAID adapter

Datacom Technologies BD is a leading provider of IT solutions and services in Bangladesh. We offer a wide range of products, including Broadcom 9560-16i RAID adapter, servers, storage, networking equipment, and more. Our team of experts is dedicated to helping you find the right solutions for your business needs. We also provide excellent customer support and after-sales service.

9560-16i  Full Specification

Specification	Value
Host Interface	PCIe Gen 4.0 x8
Storage Interface	12Gb/s SAS, 6Gb/s SATA, PCIe Gen 4.0 (NVMe)
RAID Levels	RAID 0, 1, 5, 6, 10, 50, 60, JBOD
Cache Memory	8GB
Maximum Supported Devices	240 SAS/SATA devices or 32 NVMe devices
Form Factor	Low-profile
Power Consumption	13.21W

The 9560-16i is a powerful and versatile RAID controller that can be used in a variety of applications. It is ideal for high-performance computing, enterprise databases, analytics applications, medical imaging, and media applications. The 9560-16i is also a good choice for flexible solutions for cloud computing.

Description of the 9560-16i 9500 RAID Card

The 9560-16i is based on the Broadcom SAS3916 high-port count PCIe 4.0 x8 RAID-on-Chip (RoC) controller. This controller provides twice the performance of previous generations thanks to its PCIe Gen 4.0 host and storage interfaces. The 9560-16i also supports Broadcom Tri-Mode SerDes technology, which enables the operation of NVMe, SAS, or SATA devices in a single drive bay. This allows for endless design flexibility. The 9560-16i can support up to 240 SAS/SATA devices or 32 NVMe devices per controller. This makes it ideal for large storage arrays. The 9560-16i also supports a variety of RAID levels, including RAID 0, 1, 5, 6, 10, 50, 60, and JBOD. This allows users to choose the RAID level that best meets their needs for performance and data protection. The 9560-16i is equipped with 8GB of cache memory. This helps to improve performance by reducing the number of times that data must be accessed from the storage devices. The 9560-16i also supports a variety of features, such as hardware secure boot, universal backplane management (UBM), and MegaRAID SafeStore software for SED key management and CacheVault flash backup. The 9560-16i is a high-performance, high-port count RAID controller that is ideal for demanding data center and enterprise applications. It offers excellent performance, scalability, and flexibility.

supported/comparable models

Broadcom 9540-16i 9500 RAID adapter Broadcom 9560-8i 9500 RAID adapter Broadcom 9540-8i 9500 RAID adapter LSI MegaRAID 9560-16i RAID adapter LSI MegaRAID 9540-16i RAID adapter LSI MegaRAID 9560-8i RAID adapter LSI MegaRAID 9540-8i RAID adapter

What is the price of a Broadcom 9560-16i 9500 RAID Card in Bangladesh?

The Broadcom 9560-16i 9500 RAID Card typically ranges in price from 75,000 to 85,000 in Bangladesh. However, please note that actual pricing may vary due to factors such as quantity, warranty, and current market conditions. For a quote, contact Datacom Technologies (BD): Call/WhatsApp: +8801748173213 Email: sales@datacomtechbd.com or datacomtechnologiesbd@gmail.com Explore other Broadcom Server Raid Controller here.
