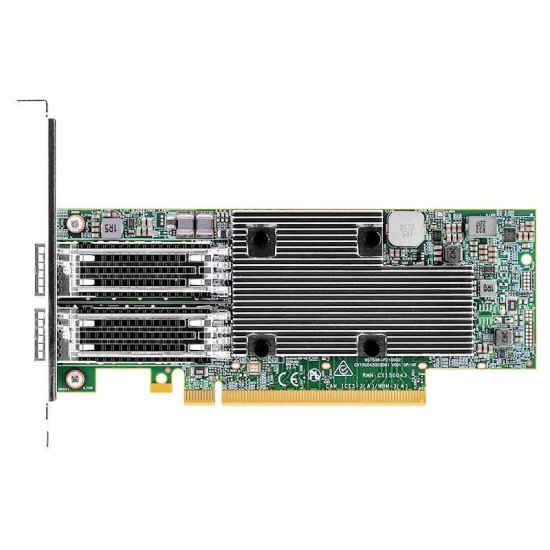

Broadcom BCM957508 -P2100G 100G QSFP56 PCIE Network card
Specification Table
| Specification |
Details |
| Model |
Broadcom BCM957508-P2100G |
| Network Speed |
100Gbps |
| Interface |
PCI Express 4.0 x16 |
| Port Type |
Dual-Port QSFP56 |
| Form Factor |
Standard PCIe (Tall & Short bracket options) |
| Connectivity |
100G Ethernet over QSFP56 |
| Chipset |
Broadcom BCM57508 |
| Data Transfer Mode |
Full Duplex |
| Compliance |
RoHS, IEEE 802.3, PCIe Gen4 |
| Power Consumption |
Approx. 12W–18W (depends on configuration) |
| Supported Cables |
DAC, AOC, Optical Modules (QSFP56) |
| Operating Temperature |
0°C to 55°C |
| Operating System Support |
Windows Server, Linux, VMware ESXi |
| Use Case |
High-performance servers, data centers, cloud systems |
? Description
The
Broadcom BCM957508-P2100G is a high-performance, next-generation 100G PCIe Network Interface Card (NIC) designed for data-intensive enterprise environments. Powered by the Broadcom BCM57508 controller, this NIC supports 100 Gigabit Ethernet over a dual QSFP56 port, making it ideal for hyperscale data centers, cloud providers, and AI/ML workloads.
Equipped with a PCI Express 4.0 x16 interface, it ensures ultra-fast data throughput and low-latency performance. The BCM957508-P2100G supports a wide range of QSFP56 modules and cables, including DAC, AOC, and optical transceivers, offering flexibility for different deployment scenarios.
Engineered for reliability and scalability, it is compliant with IEEE Ethernet standards and supports major operating systems like Linux, Windows Server, and VMware ESXi. With advanced features like full-duplex mode, high packet processing rates, and energy-efficient design, this NIC significantly improves network efficiency in large-scale environments.
Whether you're upgrading an existing network or building a future-ready infrastructure, the Broadcom BCM957508-P2100G delivers the speed, stability, and scalability you need. It is also available with tall and low-profile brackets to fit various server chassis. This card is the perfect choice for businesses demanding uncompromised 100G performance in BD and globally.
✅ Key Features:
- Model: Broadcom BCM957508-P2100G
- Speed: 100Gbps Ethernet throughput
- Interface: PCI Express Gen4 x16
- Connector: 1x QSFP56 port
- Form Factor: Low-profile and full-height brackets included
- Advanced Networking: RDMA over Converged Ethernet (RoCE), NVGRE, VXLAN, SR-IOV support
- Offloads: TCP/UDP/IP checksum offload, Large Send Offload (LSO), Receive Side Scaling (RSS)
- Reliability: Hardware-level traffic management and congestion control
- Thermal Control: Smart fan and thermal sensor integration
? Where it Can Be Used?
- High-Performance Computing (HPC)
- Data Centers with 100G infrastructure
- Cloud Networking
- AI/ML Workload Systems
- Enterprise Virtualization Environments
⚙️ Installation Step:
- Power down the server and unplug all connections.
- Open the chassis and locate a free PCIe Gen4 x16 slot.
- Insert the network card carefully and secure it with the bracket screw.
- Replace the chassis cover and power on the server.
- Install the latest Broadcom driver/software for your OS.
- Connect a 100G QSFP56-compatible fiber/copper cable to the port.
? User Experience:
Users report ultra-low latency and high throughput performance, especially in virtualization and storage networks. The card is stable under full load, has excellent driver support on both Windows and Linux platforms, and integrates well with virtual environments (VMware, Hyper-V, etc.).
? Why Choose Broadcom BCM957508-P2100G 100G?
- Delivers true 100G performance for demanding workloads.
- Offers advanced networking features like RoCE and SR-IOV for efficient VM communication.
- Backed by Broadcom’s enterprise-grade reliability.
- Compatible with the latest PCIe Gen4 systems for maximum bandwidth.
- Ideal for future-proofing your data center or server farm.
Buy Broadcom BCM957508 -P2100G 100G QSFP56 PCIE Network card at the Best Price from Datacom BD Online
In Bangladesh, you can get Broadcom BCM957508 -P2100G 100G QSFP56 PCIE Network card From
Datacom. We have a large collection of latest Broadcom Server Network Card to purchase. Order Online Or Visit our Office to get yours at lowest price. The Broadcom BCM957508 -P2100G 100G QSFP56 PCIE Network card comes with 1 Year warranty.
- ? Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of Broadcom BCM957508 -P2100G 100G QSFP56 PCIE Network card in Bangladesh?
The estimated price of Broadcom BCM957508 -P2100G 100G QSFP56 PCIE Network card in Bangladesh is 132,500৳. You can buy the Broadcom BCM957508 -P2100G 100G QSFP56 PCIE Network card at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
