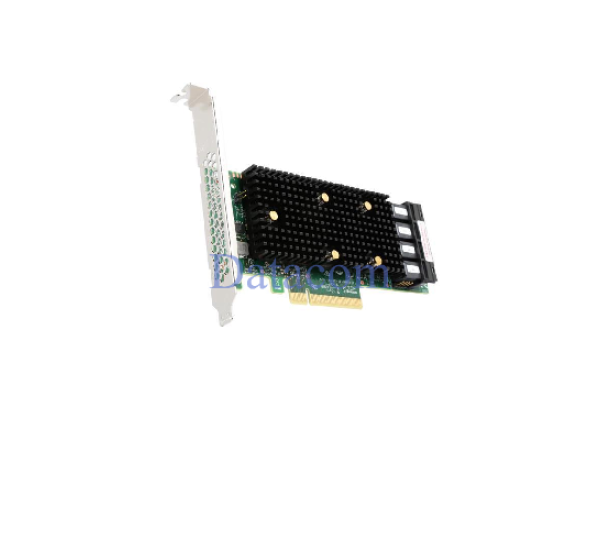

About Broadcom LSI00348 9300-4I4E SAS PCIe HBA Card in Bangladesh
The Broadcom LSI00348 9300-4I4E SAS PCIe HBA Card is an enterprise-grade 12Gb/s SAS Host Bus Adapter engineered for servers, storage appliances, JBOD enclosures, virtualization platforms, and software-defined storage environments. Powered by the Broadcom (LSI) SAS3008 Fusion-MPT controller, it delivers high-performance, low-latency storage connectivity with enterprise-class reliability.
Featuring a PCI Express 3.0 x8 interface, one internal Mini-SAS HD (SFF-8643) connector, and one external Mini-SAS HD (SFF-8644) connector, the adapter provides eight SAS lanes with four internal and four external ports. It supports both 12Gb/s SAS and 6Gb/s SATA storage devices while enabling flexible internal and external storage expansion.
The adapter operates primarily in IT (Initiator Target) mode, making it ideal for TrueNAS, ZFS, VMware vSAN, Microsoft Storage Spaces, Proxmox VE, Ceph, and Linux software-defined storage. Enterprise features include Fusion-MPT architecture, SGPIO, SSD TRIM, Native Command Queuing (NCQ), S.M.A.R.T., Hot Plug support, and SAS expanders supporting up to 1024 SAS/SATA devices.
Whether building enterprise NAS storage, virtualization clusters, backup infrastructure, or expanding server storage with external SAS enclosures, the Broadcom LSI00348 delivers excellent performance, scalability, and compatibility.
Buy Broadcom LSI00348 9300-4I4E SAS PCIe HBA Card in Bangladesh
Looking for the original Broadcom LSI00348 9300-4I4E SAS PCIe HBA Card in Bangladesh? Datacom Technologies (BD) supplies genuine Broadcom storage adapters with competitive pricing, expert technical consultation, and dependable after-sales support.
Compatibility
- Enterprise Rack Servers
- PCI Express 3.0 x8 Systems
- 12Gb SAS HDD & SSD
- 6Gb SATA HDD & SSD
- External SAS Storage Enclosures
- TrueNAS CORE & SCALE
- VMware ESXi
- Microsoft Windows Server
- Linux (Ubuntu, RHEL, Debian, SUSE)
- Proxmox VE & Ceph Storage
Broadcom LSI00348 9300-4I4E Specifications & Overview
| Specification |
Details |
| Product Type | SAS/SATA Host Bus Adapter |
| Product Name | Broadcom LSI00348 9300-4I4E SAS PCIe HBA Card |
| Brand | Broadcom (LSI) |
| Ordering Part Number | LSI00348 |
| Model | SAS 9300-4I4E |
| Controller | LSI SAS3008 Fusion-MPT |
| Host Interface | PCI Express 3.0 x8 |
| Internal Ports | 4 × 12Gb/s SAS |
| External Ports | 4 × 12Gb/s SAS |
| Internal Connector | 1 × Mini-SAS HD (SFF-8643) |
| External Connector | 1 × Mini-SAS HD (SFF-8644) |
| Supported Drives | SAS HDD, SAS SSD, SATA HDD, SATA SSD |
| Transfer Rate | 12Gb/s SAS / 6Gb/s SATA |
| Firmware | IT (Non-RAID) Mode |
| Maximum Device Support | Up to 1024 SAS/SATA Devices (via SAS Expanders) |
| Supported Features | Fusion-MPT, SGPIO, S.M.A.R.T., SSD TRIM, NCQ, Hot Plug |
| Form Factor | Low Profile MD2 PCIe Card |
Applications
- Enterprise Storage Servers
- TrueNAS & ZFS Storage
- Software-Defined Storage
- JBOD Expansion
- External SAS Storage
- Virtualization Servers
- Backup Infrastructure
- Cloud Storage
- Media Storage Servers
- Enterprise Data Centers
Benefits of Choosing This Product
The Broadcom LSI00348 delivers enterprise-grade internal and external SAS connectivity, direct drive access, high compatibility, excellent scalability, and dependable performance for demanding enterprise storage environments.
Why Buy from Datacom Technologies (BD)?
Datacom Technologies (BD) is a trusted supplier of enterprise servers, storage systems, networking equipment, and data center hardware in Bangladesh. We provide genuine Broadcom storage products with competitive pricing, expert technical consultation, and dependable after-sales support.
- Call/WhatsApp: +8801748173213
- Email: sales@datacom.com.bd
- Alternative Email: datacomtechnologiesbd@gmail.com
- Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh.
Frequently Asked Questions (FAQ)
Q1: Is LSI00348 the same as SAS 9300-4I4E?
Yes. LSI00348 is the official ordering part number for the Broadcom SAS 9300-4I4E HBA.
Q2: Does it support both internal and external SAS devices?
Yes. It provides four internal and four external 12Gb/s SAS lanes.
Q3: Does it support hardware RAID?
No. It is primarily designed as an IT-mode Host Bus Adapter for direct drive access.
Q4: Is it suitable for TrueNAS, VMware and Linux?
Yes. It is fully compatible with TrueNAS, VMware ESXi, Windows Server, Linux, Proxmox VE, and Ceph.
Q5: How many drives can it support?
It supports up to 1024 SAS/SATA devices through compatible SAS expanders.
