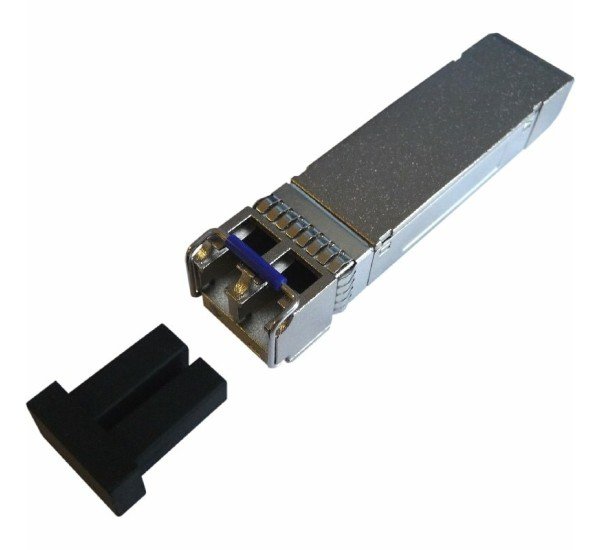

Broadcom SFP-25G-LR-S 10Km SFP28 Transceiver

About Broadcom SFP-25G-LR-S 25GBASE-LR 10km SFP28 Transceiver in Bangladesh

The Broadcom SFP-25G-LR-S is a 25Gbps SFP28 optical transceiver designed for long-distance Ethernet connectivity over Single-Mode Fiber (SMF). Using 1310nm optical transmission and a duplex LC connector, this 25GBASE-LR-class module supports links of up to 10km, making it suitable for data-center interconnects, enterprise networks, server-to-switch connections and other long-reach 25GbE deployments.

Broadcom's SFP28 product family is designed for 25Gb/s-class Ethernet and related high-speed networking applications. Broadcom's current SFP28 portfolio includes single-mode 25G-class transceivers operating at 1310nm with maximum distances reaching 10km. :contentReference[oaicite:1]{index=1}

Broadcom-compatible references for the SFP-25G-LR-S class identify the module as a 25GBASE-LR SFP28 transceiver using 1310nm Single-Mode Fiber, duplex LC connectivity and a 10km reach. :contentReference[oaicite:2]{index=2}

Broadcom SFP-25G-LR-S 25G SFP28 Specifications & Features

Overview

The Broadcom SFP-25G-LR-S provides high-speed 25GbE connectivity across single-mode optical fiber. Its Long Reach (LR) design is intended for network links extending up to 10km, making it suitable for connecting equipment across data-center rooms, buildings, campuses and other locations where short-range multimode optics are insufficient.

The SFP28 form factor provides a compact, hot-pluggable optical interface for compatible 25GbE switches, routers, servers and network adapters.

Buy Broadcom SFP-25G-LR-S 25G SFP28 Transceiver in Bangladesh

Purchase the Broadcom SFP-25G-LR-S 25GBASE-LR 10km SFP28 Transceiver from Datacom Technologies (BD). We supply enterprise networking products, optical transceivers, switches, routers, server NICs and data-center connectivity solutions in Bangladesh with competitive pricing and technical support.

Key Features

• 25Gbps high-speed Ethernet connectivity
• SFP28 compact pluggable form factor
• 25GBASE-LR optical standard
• Up to 10km transmission distance
• 1310nm operating wavelength
• Single-Mode Fiber support
• Duplex LC optical connector
• DFB laser transmitter
• PIN receiver
• Digital Diagnostic Monitoring support
• Suitable for data-center and enterprise networks
• Hot-pluggable SFP28 form factor

25Gbps SFP28 Connectivity

The SFP-25G-LR-S is designed for 25GbE networking applications. SFP28 is the enhanced successor to the SFP+ form factor and is specifically designed to support 25Gb/s-class applications. Broadcom identifies SFP28 as a form factor targeting 25Gb/s to 28Gb/s applications, including 25GbE. :contentReference[oaicite:3]{index=3}

With 25Gbps bandwidth, the transceiver is suitable for high-throughput server connectivity, storage networking, data-center aggregation and network interconnects.

10km Long-Range Transmission

The LR designation indicates Long Reach operation. The SFP-25G-LR-S class provides up to 10km of transmission over compatible Single-Mode Fiber.

This reach makes the transceiver suitable for longer fiber runs between data-center equipment, buildings, network aggregation points and enterprise facilities.

1310nm Optical Wavelength

The module operates at approximately 1310nm. This wavelength is commonly used for long-distance single-mode Ethernet transmission.

25GBASE-LR references specify 1310nm operation over Single-Mode Fiber for links up to 10km. :contentReference[oaicite:4]{index=4}

Single-Mode Fiber Support

The SFP-25G-LR-S is designed for Single-Mode Fiber (SMF). For best results, use compatible 9/125µm single-mode fiber cabling and appropriate duplex LC connectors.

Single-mode fiber provides the optical characteristics required for long-distance 25GbE transmission and is significantly better suited to 10km links than standard multimode fiber.

Duplex LC Connector

The transceiver uses a Duplex LC optical interface. One fiber is used for transmission and the other for reception, providing full-duplex communication.

Ensure that the installed patch cords and fiber infrastructure use compatible LC connectors and single-mode fiber.

DFB Laser Transmitter

25GBASE-LR SFP28 modules commonly use a 1310nm DFB laser transmitter for long-distance single-mode transmission. Broadcom-compatible LR references identify DFB transmission and PIN reception for this class of module. :contentReference[oaicite:5]{index=5}

PIN Receiver

The receiver uses a PIN photodiode to convert incoming optical signals into electrical signals. This optical architecture is commonly used in 25GBASE-LR modules.

Digital Diagnostic Monitoring

Broadcom-compatible SFP-25G-LR-S references support Digital Diagnostic Monitoring (DDM/DOM). This allows compatible networking equipment to monitor parameters such as optical transmit and receive power, temperature and module operating conditions. :contentReference[oaicite:6]{index=6}

DDM availability and the specific diagnostic values exposed to the host system depend on the transceiver implementation and the network equipment.

Data Center Applications

The Broadcom SFP-25G-LR-S is well suited to modern data-center networking environments where 25GbE connectivity and longer optical reach are required.

• 25GbE server-to-switch connections
• Data-center interconnects
• Leaf-and-spine networks
• Enterprise campus networks
• High-performance computing networks
• Storage network infrastructure
• Network aggregation
• Server NIC connectivity
• Long-distance switch uplinks
• Inter-building fiber connections

Broadcom SFP28 Compatibility

Broadcom's SFP28 ecosystem supports a range of optical transceivers for its 25G networking products. A current Broadcom-compatible transceiver support document lists 25GBASE-LR SFP28 optics for Broadcom 25G NICs, including Broadcom BCM957414A4142CC and BCM957504-P425G platforms. :contentReference[oaicite:7]{index=7}

Actual interoperability depends on the exact NIC, switch, firmware and transceiver coding. Always confirm the supported optics list for the target Broadcom device before deployment.

Long-Distance 25GbE Networking

The 10km reach of the SFP-25G-LR-S provides significantly greater fiber distance than SR-class 25G optics. For example, Cisco's 25G optical specifications list 25GBASE-SR for approximately 70m on OM3 and 100m on OM4/OM5, while its 25G LR-S class reaches 10km over SMF. :contentReference[oaicite:8]{index=8}

This makes LR optics the appropriate choice when a 25GbE connection needs to travel well beyond typical data-center multimode distances.

Power and Thermal Considerations

25G SFP28 optical modules are designed for relatively low-power operation compared with larger QSFP-class modules. Exact power consumption depends on the specific Broadcom module implementation.

For standard commercial-temperature deployments, compatible 25GBASE-LR SFP28 references commonly specify an operating range of 0°C to 70°C. :contentReference[oaicite:9]{index=9}

Broadcom SFP-25G-LR-S vs 25GBASE-SR

Installation Considerations

• Use compatible 25GbE SFP28 ports.
• Use Single-Mode Fiber for LR operation.
• Use compatible duplex LC connectors.
• Confirm the host switch or NIC supports the transceiver.
• Check transceiver coding and vendor compatibility.
• Clean fiber connectors before installation.
• Verify optical power levels and link budget for long fiber runs.

Optical modules should always be installed according to the host equipment manufacturer's compatibility requirements. A physically compatible SFP28 module is not necessarily supported by every switch or NIC.

Benefits

• 25Gbps network connectivity
• 10km long-distance reach
• 1310nm single-mode optical transmission
• SFP28 hot-pluggable form factor
• Duplex LC connectivity
• Suitable for enterprise and data-center networks
• DDM/DOM monitoring capability
• Ideal for long-distance server and switch interconnects
• Suitable for Broadcom 25G networking platforms where supported

Why Buy from Datacom Technologies (BD)?

Datacom Technologies (BD) supplies enterprise optical transceivers, SFP/SFP28 modules, QSFP/QSFP28 optics, network switches, routers and data-center networking hardware in Bangladesh. Customers can receive competitive pricing, technical consultation, deployment assistance and nationwide delivery.

• Call/WhatsApp: +8801748173213
• Email: sales@datacom.com.bd
• Alternative Email: datacomtechnologiesbd@gmail.com
• Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh

Frequently Asked Questions (FAQ)

Q1: What is the Broadcom SFP-25G-LR-S?
The SFP-25G-LR-S is a 25Gbps SFP28 Long-Reach optical transceiver designed for 25GBASE-LR networking over Single-Mode Fiber.

Q2: What is the maximum transmission distance?
The module is designed for links up to 10km over compatible Single-Mode Fiber.

Q3: What wavelength does it use?
The SFP-25G-LR-S operates at approximately 1310nm.

Q4: What fiber type is required?
It requires compatible Single-Mode Fiber (SMF).

Q5: What connector does it use?
The module uses a Duplex LC optical connector.

Q6: What is the data rate?
It supports 25Gbps-class Ethernet connectivity through an SFP28 interface.

Q7: Does the SFP-25G-LR-S support DDM?
Broadcom-compatible 25GBASE-LR SFP28 references support Digital Diagnostic Monitoring for monitoring module operating parameters. :contentReference[oaicite:10]{index=10}

Q8: Is SFP-25G-LR-S suitable for multimode fiber?
No. LR optics are designed for Single-Mode Fiber. Multimode fiber is normally used with SR-class 25G optics.

Q9: Can it be used with Broadcom 25G NICs?
Broadcom-compatible 25G LR SFP28 optics are supported on selected Broadcom 25G NIC platforms. Compatibility should be checked against the exact NIC model and firmware. :contentReference[oaicite:11]{index=11}

Q10: Is this an SFP+ module?
No. It uses the SFP28 form factor for 25Gbps-class networking.

Q11: What is the difference between LR and SR?
LR is designed for long-distance single-mode fiber links, typically up to 10km for 25GBASE-LR. SR is designed for shorter multimode-fiber links, typically tens to around 100 meters depending on the fiber grade. :contentReference[oaicite:12]{index=12}

Q12: Is the SFP-25G-LR-S hot-pluggable?
Yes. SFP28 modules use a compact pluggable form factor designed for installation and replacement in compatible SFP28 ports.

Q13: What applications are suitable for this transceiver?
Typical applications include data-center interconnects, 25GbE server links, switch uplinks, enterprise networks, storage infrastructure and long-distance fiber connections.

Q14: Where can I buy Broadcom SFP-25G-LR-S in Bangladesh?
You can contact Datacom Technologies (BD) for Broadcom-compatible optical transceivers, SFP28 modules, enterprise networking equipment and data-center connectivity solutions.
