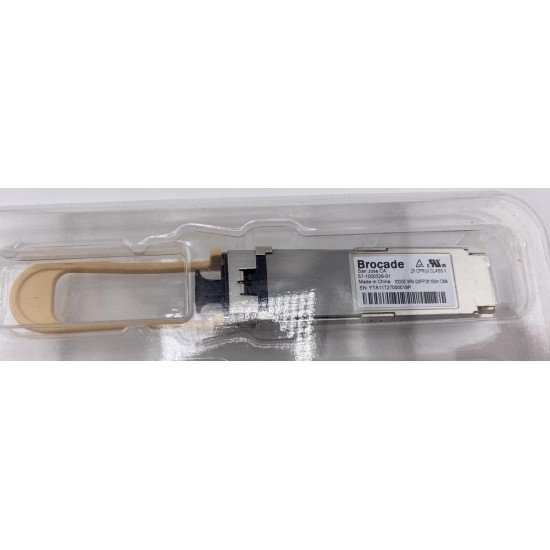

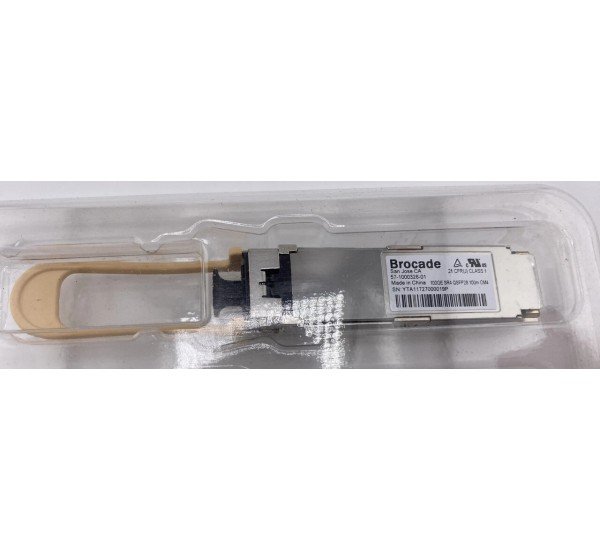

BROCADE 100G-QSFP28-SR4 OPTICAL TRANSCEIVER

About Finisar QSFP-100G-SR4 Transceiver – FTLC9551REPM in Bangladesh

The Finisar FTLC9551REPM is a 100Gbps QSFP28 optical transceiver designed for short-range 100G Ethernet connectivity over multimode fiber. Based on the 100GBASE-SR4 standard, this high-performance optical module uses four parallel 25Gbps optical channels with 850nm VCSEL technology to deliver an aggregate 100Gbps-class connection.

The Finisar FTLC9551REPM is designed for high-density data center networking, switch-to-switch connectivity, rack-to-rack links, server networking, enterprise core infrastructure, and other short-reach 100G Ethernet applications. It supports link distances of up to 100 meters over OM4 multimode fiber and up to 70 meters over OM3 multimode fiber. :contentReference[oaicite:0]{index=0}

Featuring a compact QSFP28 form factor, the FTLC9551REPM provides a hot-pluggable optical interface for compatible 100G switches, routers, network adapters, and other networking platforms. The module uses an MPO12 receptacle and provides a 4x25G electrical interface for compatible host equipment. :contentReference[oaicite:1]{index=1}

The transceiver is compliant with the QSFP28 MSA and IEEE 802.3bm 100GBASE-SR4 specifications. Digital diagnostic functions are available through the I2C management interface, allowing supported host equipment to monitor operating parameters. :contentReference[oaicite:2]{index=2}

Finisar FTLC9551REPM QSFP-100G-SR4 Transceiver Specifications & Features

Overview

The Finisar QSFP-100G-SR4 FTLC9551REPM is designed to provide high-bandwidth 100Gbps optical connectivity for short-distance multimode fiber applications. Its parallel optical architecture uses four independent transmit and receive channels, with each optical lane operating at approximately 25Gbps.

The module supports an aggregate 100G Ethernet bit rate and is designed around the 100GBASE-SR4 specification. The 850nm VCSEL-based transmitter makes it suitable for multimode fiber installations commonly found inside data centers and enterprise network facilities. :contentReference[oaicite:3]{index=3}

According to the Finisar specification, the maximum supported distance is 70 meters on OM3 multimode fiber and 100 meters on OM4 multimode fiber. Actual link performance depends on the complete optical channel, including fiber quality, connector loss, patching, polarity, and the optical budget. :contentReference[oaicite:4]{index=4}

Buy Finisar FTLC9551REPM QSFP-100G-SR4 Transceiver in Bangladesh

Purchase the Finisar QSFP-100G-SR4 FTLC9551REPM Optical Transceiver from Datacom Technologies (BD). We supply Finisar optical transceivers, QSFP28 modules, SFP/SFP28 optics, fiber-optic networking products, enterprise switches, data center equipment, and high-speed optical connectivity solutions with competitive pricing, technical consultation, deployment assistance, and nationwide delivery throughout Bangladesh.

Key Features

• 100Gbps-class Ethernet optical connectivity
• QSFP28 hot-pluggable form factor
• 100GBASE-SR4 optical standard
• 850nm VCSEL-based optical transmission
• 4 × 25Gbps parallel optical channels
• Up to 100m over OM4 multimode fiber
• Up to 70m over OM3 multimode fiber
• MPO12 optical connector
• 4 × 25G electrical host interface
• Digital diagnostic monitoring support
• Single 3.3V power supply
• Less than 3.5W maximum power dissipation
• Commercial operating temperature range of 0°C to 70°C
• RoHS-6 compliant

Applications

• 100G Data Center Networking
• Rack-to-Rack Connectivity
• Switch-to-Switch Links
• Data Center Interconnect
• Enterprise Core Networks
• High-Speed Ethernet Backbone
• Server-to-Switch Connectivity
• Network Aggregation
• High-Density Multimode Fiber Infrastructure
• 100G Network Upgrades

100GBASE-SR4 Optical Technology

100GBASE-SR4 is a short-reach 100Gbps Ethernet optical technology that uses four parallel optical lanes over multimode fiber. The Finisar FTLC9551REPM uses four 850nm VCSEL-based optical transmit channels, with each lane operating at approximately 25Gbps.

This parallel architecture makes the FTLC9551REPM particularly suitable for high-density data center environments where network devices are located relatively close to each other. It provides substantially higher bandwidth than 40G or 10G optical links while maintaining a compact QSFP28 form factor.

QSFP28 Form Factor

The QSFP28 form factor is designed for high-density 100Gbps networking. The Finisar FTLC9551REPM provides a compact, hot-pluggable interface that can be installed in compatible 100G switches, routers, network adapters, and other networking platforms.

Hot-pluggable operation makes the module convenient for supported network environments where optical modules may need to be installed, replaced, or upgraded without powering down the entire host system.

MPO12 Multimode Fiber Connectivity

The FTLC9551REPM uses an MPO12 receptacle for its parallel optical interface. Proper MPO/MTP cabling, fiber polarity, connector type, and lane mapping are important when deploying a 100GBASE-SR4 link.

For OM4 multimode fiber, the module supports up to 100 meters, while OM3 supports up to 70 meters. The complete optical link should be checked for insertion loss and other channel limitations before deployment. :contentReference[oaicite:5]{index=5}

Digital Diagnostic Monitoring

The Finisar FTLC9551REPM provides digital diagnostic functionality through its I2C management interface. Supported host equipment can use this interface to monitor optical and operating parameters and assist with network troubleshooting and maintenance. :contentReference[oaicite:6]{index=6}

Compatibility

• Compatible Cisco 100G QSFP28 platforms
• Compatible Huawei 100G QSFP28 platforms
• Compatible Juniper 100G QSFP28 platforms
• Compatible Arista 100G QSFP28 platforms
• Compatible Dell 100G QSFP28 platforms
• Compatible HPE 100G QSFP28 platforms
• Compatible Mellanox / NVIDIA 100G platforms
• Compatible Fortinet 100G QSFP28 platforms
• Compatible H3C 100G QSFP28 platforms
• Other supported QSFP28 100G Ethernet platforms

Actual compatibility depends on the host equipment, firmware, transceiver coding, supported optics list, and platform requirements. Always verify the exact switch, router, NIC, or other host device before installation.

Benefits

• High-bandwidth 100G Ethernet connectivity
• Compact QSFP28 form factor
• Short-reach connectivity optimized for data centers
• Supports OM3 and OM4 multimode fiber
• Up to 100m reach over OM4
• Up to 70m reach over OM3
• MPO12 parallel optical interface
• Digital diagnostics for monitoring
• Hot-pluggable design
• Suitable for high-density 100G networking

Why Buy from Datacom Technologies (BD)?

Datacom Technologies (BD) supplies networking and data center infrastructure products in Bangladesh, including Finisar optical transceivers, QSFP28 modules, SFP/SFP28 optics, fiber-optic equipment, enterprise switches, server networking components, and high-speed data center connectivity solutions. Customers can receive competitive pricing, technical consultation, deployment assistance, and after-sales support.

• Call/WhatsApp: +8801748173213
• Email: sales@datacom.com.bd
• Alternative Email: datacomtechnologiesbd@gmail.com
• Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh

Frequently Asked Questions (FAQ)

Q1: What is the Finisar FTLC9551REPM?
The FTLC9551REPM is a Finisar 100GBASE-SR4 QSFP28 optical transceiver designed for 100Gbps Ethernet over multimode fiber.

Q2: What is the data rate of the FTLC9551REPM?
It supports 100G Ethernet with an aggregate optical bit rate of up to 103.1Gbps.

Q3: What wavelength does the FTLC9551REPM use?
The module uses 850nm VCSEL-based optical transmission.

Q4: What is the maximum distance of the FTLC9551REPM?
It supports up to 100 meters over OM4 multimode fiber and up to 70 meters over OM3 multimode fiber. :contentReference[oaicite:7]{index=7}

Q5: What type of fiber does this transceiver use?
It is designed for multimode fiber, specifically OM3 and OM4 for the specified maximum distances.

Q6: What connector does the FTLC9551REPM use?
It uses a single MPO12 optical receptacle.

Q7: Is the FTLC9551REPM a QSFP28 module?
Yes. It uses the QSFP28 hot-pluggable form factor.

Q8: Does the FTLC9551REPM support DDM?
Yes. Digital diagnostic functions are available through the module's I2C management interface. :contentReference[oaicite:8]{index=8}

Q9: Is the Finisar FTLC9551REPM suitable for data centers?
Yes. Its 100GBASE-SR4 design, short-reach multimode fiber support, and QSFP28 form factor make it well suited to data center switch-to-switch and rack-to-rack connectivity.

Q10: What is the maximum power consumption?
The Finisar specification lists power dissipation of less than 3.5W. :contentReference[oaicite:9]{index=9}

Q11: What is the operating temperature range?
The published commercial case temperature range is 0°C to 70°C. :contentReference[oaicite:10]{index=10}

Q12: Where can I buy the Finisar FTLC9551REPM QSFP-100G-SR4 Transceiver in Bangladesh?
You can contact Datacom Technologies (BD) for Finisar 100G QSFP28 optical transceivers, fiber-optic networking products, data center equipment, and high-speed optical connectivity solutions with competitive pricing and nationwide delivery.
