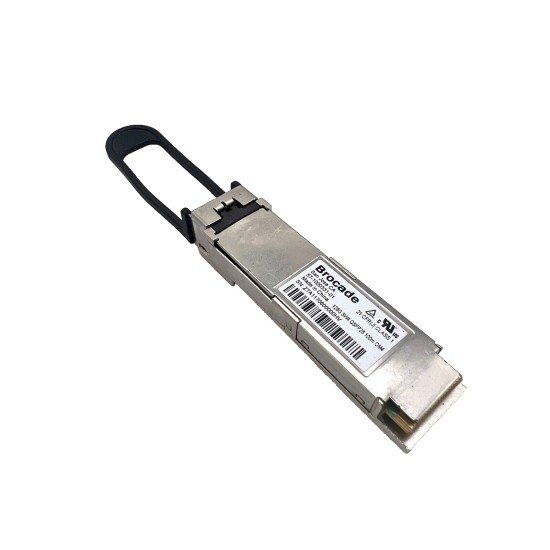

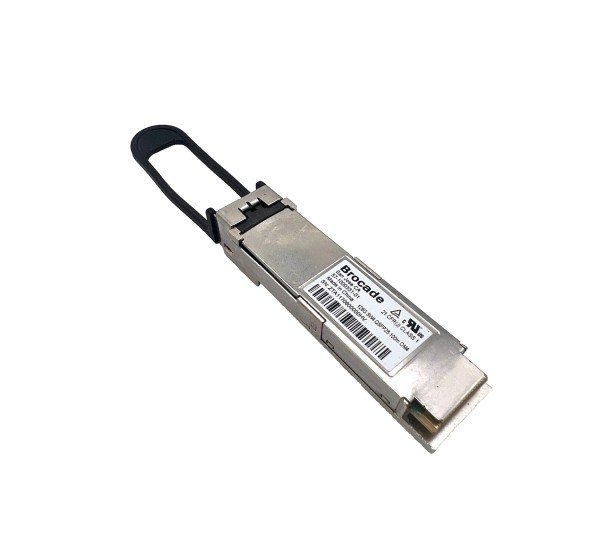

Brocade 100G QSFP28 SW4 Optical Transceiver

About Brocade 100G QSFP28 SW4 Optical Transceiver in Bangladesh

The Brocade 100G QSFP28 SW4 Optical Transceiver is a high-speed 100Gbps optical module designed for short-reach data center and enterprise networking applications. Using the compact QSFP28 form factor and 850nm multimode optical technology, this transceiver provides high-density 100G connectivity between compatible Brocade networking platforms and other supported 100G Ethernet equipment.

The SW4 optical transceiver is designed for short-distance optical links over multimode fiber, making it particularly suitable for data center switch-to-switch connections, rack-to-rack links, network aggregation, and other high-bandwidth applications where the connected devices are located within a relatively short physical distance.

With support for up to 100 meters over OM4 multimode fiber and up to 70 meters over OM3 multimode fiber, the Brocade 100G QSFP28 SW4 provides a practical solution for high-density 100G Ethernet deployments. The exact supported distance depends on the optical link budget, fiber quality, connector loss, and complete cabling infrastructure.

The QSFP28 form factor provides a compact, hot-pluggable interface for compatible Brocade switches, directors, routers, and other supported networking equipment. Before installation, the exact Brocade platform, transceiver compatibility, optical standard, fiber type, connector, and firmware requirements should be verified.

Brocade 100G QSFP28 SW4 Optical Transceiver Specifications & Features

Overview

The Brocade 100G QSFP28 SW4 Optical Transceiver provides high-bandwidth optical connectivity for short-distance 100Gbps networking applications. Its QSFP28 form factor combines high throughput with compact physical dimensions, allowing compatible networking equipment to support high-density optical interfaces.

The 850nm multimode optical architecture is designed for short-reach applications typically found inside data centers. The module is suitable for switch-to-switch, rack-to-rack, aggregation, and other high-speed links where the optical distance remains within the supported multimode fiber range.

OM4 multimode fiber can provide up to 100 meters of supported reach, while OM3 can provide up to 70 meters under the specified optical conditions. Proper MPO/MTP cabling, polarity, lane mapping, and optical link budget are important for reliable operation.

Buy Brocade 100G QSFP28 SW4 Optical Transceiver in Bangladesh

Purchase the Brocade 100G QSFP28 SW4 Optical Transceiver from Datacom Technologies (BD). We supply Brocade optical transceivers, QSFP28 modules, SFP/SFP28 optics, fiber-optic networking products, enterprise switches, data center equipment, and high-speed optical connectivity solutions with competitive pricing, technical consultation, deployment assistance, and nationwide delivery throughout Bangladesh.

Key Features

• 100Gbps high-speed optical connectivity
• QSFP28 compact pluggable form factor
• SW4 short-reach optical technology
• 850nm VCSEL-based optical transmission
• Multimode fiber support
• Up to 100m over OM4 fiber
• Up to 70m over OM3 fiber
• MPO/MTP optical connector
• Suitable for high-density 100G data center networking
• Hot-pluggable optical module design
• Ideal for rack-to-rack and switch-to-switch connectivity
• Designed for compatible Brocade networking platforms

Applications

• 100G Data Center Networking
• Brocade Switch-to-Switch Connectivity
• Rack-to-Rack Fiber Links
• Data Center Interconnect
• Enterprise Core Networking
• High-Speed Network Aggregation
• 100G Ethernet Backbone Links
• Server-to-Switch Connectivity
• Multimode Fiber Infrastructure
• High-Bandwidth Network Upgrades

100G SW4 Short-Reach Optical Technology

The SW4 optical architecture is intended for short-distance 100Gbps connectivity over multimode fiber. Using 850nm optical transmission, it provides a cost-effective and high-density solution for network links within data centers and other controlled environments.

The Brocade 100G QSFP28 SW4 is especially appropriate for environments where network devices are located within the supported multimode fiber distance. For longer-distance links, a suitable single-mode 100G optical solution should be selected instead.

QSFP28 Form Factor

The QSFP28 form factor is widely used for 100Gbps Ethernet networking. Its compact design allows compatible Brocade switches, directors, routers, and other supported equipment to provide high-density optical connectivity.

As a pluggable module, the transceiver can be installed or replaced on supported equipment without replacing the entire networking platform. Actual hot-plug behavior depends on the host equipment.

MPO/MTP Fiber Connectivity

The Brocade 100G QSFP28 SW4 uses an MPO/MTP-style parallel fiber interface. Proper connector type, polarity, fiber lane mapping, and cabling architecture are important when deploying the optical link.

For OM4 installations, the module can support links up to 100 meters, while OM3 installations can support up to 70 meters, subject to the complete optical channel and link budget.

Compatibility

• Compatible Brocade 100G switches
• Compatible Brocade directors
• Compatible Brocade networking platforms
• Compatible 100G QSFP28 interfaces
• Supported 100G Ethernet equipment
• Compatible OM3 and OM4 multimode fiber infrastructure

Always verify the exact Brocade equipment model, supported transceiver list, firmware, optical standard, connector, fiber type, transmission distance, and transceiver coding requirements before installation.

Benefits

• 100Gbps high-bandwidth optical connectivity
• Short-reach data center optical solution
• Compact QSFP28 form factor
• Supports OM3 and OM4 multimode fiber
• Up to 100m reach over OM4
• Up to 70m reach over OM3
• High-density optical connectivity
• Suitable for Brocade network environments
• Ideal for switch-to-switch connectivity
• Suitable for data center network expansion

Why Buy from Datacom Technologies (BD)?

Datacom Technologies (BD) supplies networking and data center infrastructure products in Bangladesh, including Brocade optical transceivers, QSFP28 modules, SFP/SFP28 optics, fiber-optic equipment, enterprise switches, server networking components, and high-speed data center connectivity solutions. Customers can receive competitive pricing, technical consultation, deployment assistance, and after-sales support.

• Call/WhatsApp: +8801748173213
• Email: sales@datacom.com.bd
• Alternative Email: datacomtechnologiesbd@gmail.com
• Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh

Frequently Asked Questions (FAQ)

Q1: What is the Brocade 100G QSFP28 SW4?
The Brocade 100G QSFP28 SW4 is a short-reach 100Gbps optical transceiver designed for high-speed multimode fiber networking applications.

Q2: What is the data rate?
The module provides 100Gbps-class optical connectivity.

Q3: What wavelength does the SW4 transceiver use?
The SW4 optical architecture uses an 850nm multimode optical interface.

Q4: What fiber type does the Brocade 100G SW4 use?
It is designed for multimode fiber, including OM3 and OM4 infrastructure.

Q5: What is the maximum transmission distance?
The typical specified reach is up to 100 meters over OM4 multimode fiber and up to 70 meters over OM3 multimode fiber.

Q6: What connector does the Brocade 100G QSFP28 SW4 use?
It uses an MPO/MTP-style parallel optical connector.

Q7: Is the Brocade 100G SW4 suitable for data centers?
Yes. Its short-reach multimode design and QSFP28 form factor make it suitable for high-density data center switch-to-switch and rack-to-rack links.

Q8: Is the Brocade 100G QSFP28 SW4 hot-pluggable?
The QSFP28 design is a pluggable optical form factor. Actual hot-plug operation depends on the specific Brocade host platform.

Q9: Can the SW4 be used with single-mode fiber?
No. SW4 is intended for short-reach multimode fiber applications. A suitable single-mode 100G transceiver should be selected for longer-distance links.

Q10: Can this module be used with third-party 100G equipment?
Compatibility depends on the host equipment, transceiver coding, firmware, supported optics list, and optical specifications. Always verify the exact platform before deployment.

Q11: What should I check before buying the Brocade 100G QSFP28 SW4?
Check the exact Brocade platform, supported QSFP28 optics, fiber type, MPO/MTP connector and polarity, transmission distance, optical budget, and transceiver coding requirements.

Q12: Where can I buy the Brocade 100G QSFP28 SW4 Optical Transceiver in Bangladesh?
You can contact Datacom Technologies (BD) for Brocade 100G QSFP28 optical transceivers, fiber-optic networking products, data center equipment, and high-speed network connectivity solutions with competitive pricing and nationwide delivery.
