The

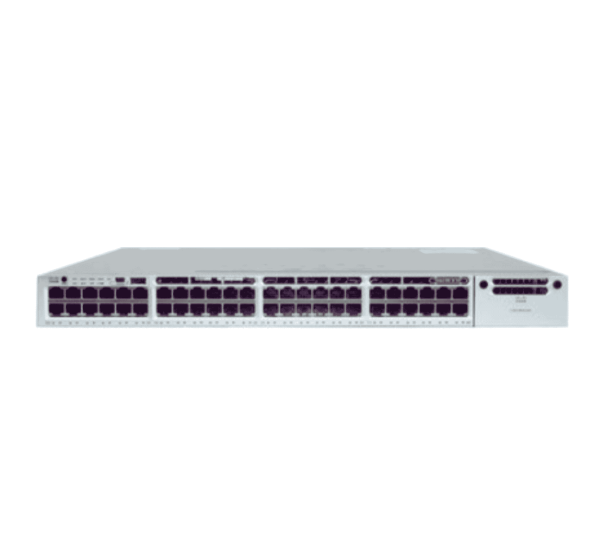

Cisco Catalyst 3850-48P-L Switch is a powerful, next-generation stackable switch designed for enterprise-level networking. With
48 Ethernet POE+ ports, this switch provides the flexibility to power devices while maintaining high-performance connectivity. It features an upgradeable LAN Base IOS image, making it adaptable to evolving network needs.
Ideal for businesses requiring robust connectivity, the WS-C3850-48P-L supports a maximum stacking number of
nine switches, delivering a
stack bandwidth of 480 Gbps. Its advanced
forwarding performance of 130.95 Mpps and a switching capacity of
176 Gbps ensure that your data travels quickly and efficiently.
This switch also excels in wireless networking, supporting up to
100 access points and
2000 wireless clients per switch or stack. Its comprehensive security features, such as
port security and
dynamic ARP inspection, ensure that your network remains protected against unauthorized access.
With dimensions of
44.5 cm x 44.5 cm x 4.45 cm and a weight of
17.49 kg, the WS-C3850-48P-L is designed for rack-mounted setups, making it a space-efficient solution for modern data centers. Choose the Cisco Catalyst 3850-48P-L for unmatched performance and reliability in your networking infrastructure.
Product Specification:
| Specification |
Details |
| Model |
WS-C3850-48P-L |
| Enclosure Type |
Rack-mountable (1U) |
| Feature Set |
LAN Base |
| Ports |
48 x 10/100/1000 Ethernet POE+ ports |
| Available PoE Power |
435W |
| Switching Capacity |
176 Gbps |
| Maximum Stacking Number |
Up to 9 switches |
| Stack Bandwidth |
480 Gbps |
| Forwarding Performance |
130.95 Mpps |
| RAM |
4 GB |
| Flash Memory |
2 GB |
| Number of Access Points per Switch/Stack |
100 |
| Number of Wireless Clients per Switch/Stack |
2000 |
| Total Number of WLANs per Switch |
64 |
| Wireless Bandwidth per Switch |
Up to 40 Gbps |
| Supported Aironet AP Series |
3600, 3500, 2600, 1600, 1260, 1140, 1040 |
| Dimensions |
Width: 44.5 cm (17.5 inches) |
|
Depth: 44.5 cm (17.7 inches) |
|
Height: 4.45 cm (1.75 inches) |
| Package Weight |
17.49 kg (38.53 lbs) |
| Power Supply Options |
PWR-C1-715WAC (715W AC Power Supply) |
|
Optional Redundant Power Supply |
| Operating Temperature |
Up to 5000 ft (1500 m): 23°F to 113°F |
|
Up to 10,000 ft (3000 m): 23°F to 104°F |
| Humidity |
10% to 95% non-condensing |
| MTBF (Mean Time Between Failures) |
241,050 hours |
| Compliance Standards |
IEEE 802.1D, 802.1Q, 802.1X, 802.3af, |
|
802.3at, and others |
| Management Interfaces |
RJ-45 console port |
