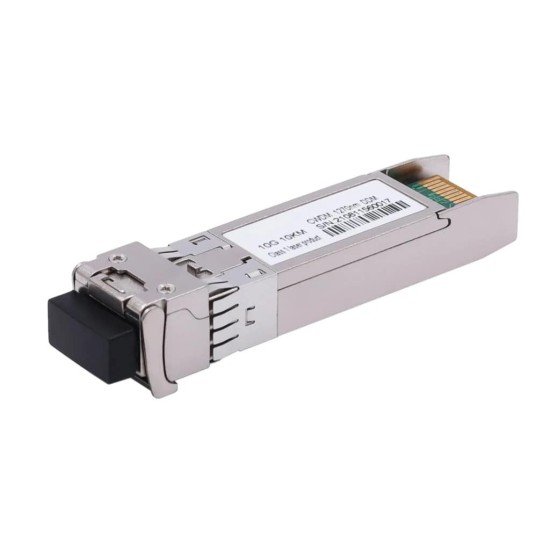

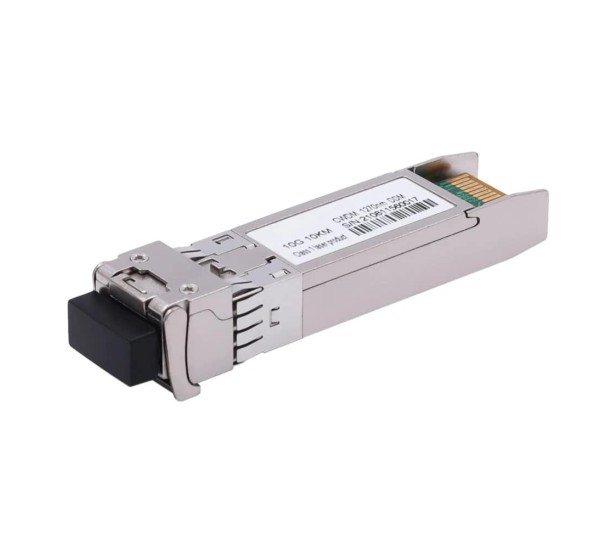

Ciena XCVR-A10S55 SFP Module

About Ciena XCVR-A10S55 100M 10km BiDi SFP Optical Transceiver in Bangladesh

The Ciena XCVR-A10S55 is a 100Mbps single-fiber BiDi SFP optical transceiver designed for compatible Ciena networking equipment. It provides Fast Ethernet connectivity over single-mode fiber using a simplex LC connection, allowing optical transmission and reception over a single fiber strand.

Ciena's partner catalog identifies the XCVR-A10S55 as a 100M single-fiber SM SFP optic with an LC connector and 10km reach. The catalog specifies 1310nm receive and 1550nm transmit wavelengths. :contentReference[oaicite:1]{index=1}

The XCVR-A10S55 is a BiDi optic and therefore must be paired with a complementary wavelength optic at the opposite end of the fiber link. This makes it useful where only one strand of single-mode fiber is available.

Ciena XCVR-A10S55 SFP Specifications & Features

Overview

The Ciena XCVR-A10S55 is designed for 100Mbps optical Ethernet connections over single-mode fiber. Its BiDi architecture uses different wavelengths for transmitting and receiving, allowing both directions of communication to share a single optical fiber.

With a 10km reach and compact SFP form factor, it is suitable for access networks, metro Ethernet links, enterprise connectivity and Ciena optical networking platforms that support this specific transceiver.

Buy Ciena XCVR-A10S55 SFP Module in Bangladesh

Purchase the Ciena XCVR-A10S55 100M 10km BiDi SFP Optical Transceiver from Datacom Technologies (BD). We supply Ciena-compatible and OEM optical transceivers, SFP/SFP+ modules, networking equipment and fiber-optic connectivity solutions in Bangladesh with competitive pricing, technical consultation and nationwide delivery.

Key Features

• 100Mbps Fast Ethernet connectivity
• Ciena XCVR-A10S55 part number
• SFP form factor
• Single-mode fiber support
• Single-fiber BiDi operation
• 10km maximum reach
• 1550nm transmit wavelength
• 1310nm receive wavelength
• LC simplex connector
• DDM/DOM support
• 0°C to +70°C operating temperature
• Single +3.3V power supply

Applications

• Ciena Optical Networking Equipment
• 100M Fast Ethernet Links
• Single-Fiber Ethernet Networks
• Metro Ethernet
• Enterprise Access Networks
• Fiber-to-Building Connectivity
• Telecommunications Access Networks
• Campus Network Links
• Long-Distance 100M Ethernet

100Mbps Fast Ethernet

The XCVR-A10S55 is designed for 100Mbps Ethernet applications. Its 100M optical interface provides reliable connectivity for compatible Ciena network platforms and legacy or access-network deployments requiring Fast Ethernet over fiber.

It should not be confused with Ciena's 1Gbps XCVR-A10U55 family, which uses the same general 1550nm/1310nm BiDi concept but operates at a higher data rate.

Single-Fiber BiDi Technology

Unlike conventional duplex optical transceivers that require two fiber strands, the XCVR-A10S55 uses Bidirectional technology to transmit and receive over a single strand of single-mode fiber.

The module transmits at 1550nm and receives at 1310nm. A compatible complementary-wavelength transceiver must be installed at the opposite end of the link.

1550nm TX / 1310nm RX

The XCVR-A10S55 uses wavelength-division technology for bidirectional communication. Its transmit wavelength is 1550nm while its receive wavelength is 1310nm, as identified in Ciena's partner catalog. :contentReference[oaicite:2]{index=2}

This wavelength pairing means the opposite-end optic must use the complementary wavelength arrangement for the link to operate correctly.

10km Single-Mode Fiber Reach

Ciena lists the XCVR-A10S55 with a maximum transmission distance of 10km over single-mode fiber. :contentReference[oaicite:3]{index=3}

Actual link distance depends on fiber attenuation, connector losses, splice losses, optical power budget and the specifications of the complementary optic.

LC Simplex Connector

The XCVR-A10S55 uses an LC simplex optical connector because its BiDi design transmits and receives through one fiber strand.

When installing the module, use a compatible single-mode LC simplex fiber connection and ensure that the far-end optic uses the complementary wavelength.

Digital Diagnostic Monitoring

Compatible versions of the XCVR-A10S55 support Digital Diagnostic Monitoring (DDM/DOM), allowing compatible network equipment to monitor transceiver operating parameters.

The exact diagnostic values displayed depend on the Ciena platform and software support.

Compatibility

The XCVR-A10S55 is a Ciena-specific optical transceiver part number. Ciena's partner catalog lists it as an active 100M single-fiber SM SFP optic with LC connectivity and 10km reach. :contentReference[oaicite:4]{index=4}

Before purchasing a replacement, verify the exact Ciena platform, hardware revision, optic coding and required wavelength. A generic 100BASE-BX optic is not automatically guaranteed to operate in every Ciena platform.

Complementary BiDi Optic

Because the XCVR-A10S55 transmits at 1550nm and receives at 1310nm, it must be connected to an optic with the complementary optical arrangement.

Using two identical wavelength-direction BiDi modules on the same fiber link may prevent the optical link from establishing.

XCVR-A10S55 vs XCVR-A10S31

Ciena's partner catalog lists XCVR-A10S31 and XCVR-A10S55 as complementary 100M single-fiber SM SFP optics with opposite wavelength directions. :contentReference[oaicite:5]{index=5}

Benefits

• 100Mbps optical Ethernet connectivity
• 10km single-mode fiber reach
• Single-fiber BiDi architecture
• LC simplex connectivity
• 1550nm transmit / 1310nm receive
• Compact SFP form factor
• DDM/DOM monitoring support
• Suitable for compatible Ciena platforms
• Ideal where only one fiber strand is available

Why Buy from Datacom Technologies (BD)?

Datacom Technologies (BD) supplies Ciena optical transceivers, SFP/SFP+ modules, networking hardware, fiber-optic components and data center connectivity solutions in Bangladesh. Customers can receive competitive pricing, technical consultation, deployment assistance and nationwide delivery.

• Call/WhatsApp: +8801748173213
• Email: sales@datacom.com.bd
• Alternative Email: datacomtechnologiesbd@gmail.com
• Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh

Frequently Asked Questions (FAQ)

Q1: What is the Ciena XCVR-A10S55?
The Ciena XCVR-A10S55 is a 100Mbps single-fiber BiDi SFP optical transceiver designed for compatible Ciena networking equipment.

Q2: What is the maximum distance?
Ciena's partner catalog specifies a maximum reach of 10km over single-mode fiber.

Q3: What wavelength does XCVR-A10S55 transmit at?
It transmits at 1550nm.

Q4: What wavelength does it receive at?
It receives at 1310nm.

Q5: Does it use one or two fiber strands?
It uses one single-mode fiber strand because it is a BiDi/single-fiber optic.

Q6: What connector does it use?
It uses an LC simplex optical connector.

Q7: What is the data rate?
The XCVR-A10S55 is a 100Mbps Fast Ethernet optic.

Q8: Does it support DDM?
Compatible specifications identify DDM/DOM support for the module.

Q9: Can I connect two XCVR-A10S55 modules together?
No. A BiDi link requires complementary transmit/receive wavelengths. The XCVR-A10S55 should be paired with the appropriate complementary 1310nm-TX/1550nm-RX optic.

Q10: Is XCVR-A10S55 the same as XCVR-A10S31?
They are complementary 100M 10km single-fiber optics with opposite wavelength directions. XCVR-A10S55 uses 1550nm TX / 1310nm RX, while XCVR-A10S31 uses 1310nm TX / 1550nm RX. :contentReference[oaicite:6]{index=6}

Q11: Is it compatible with any SFP port?
No. The host equipment must support the appropriate Ciena optic and 100M BiDi operation. Verify the exact Ciena platform and part-number compatibility before purchase.

Q12: Where can I buy Ciena XCVR-A10S55 in Bangladesh?
You can contact Datacom Technologies (BD) for Ciena SFP modules, optical transceivers, fiber networking products and enterprise networking equipment with competitive pricing and nationwide delivery.
