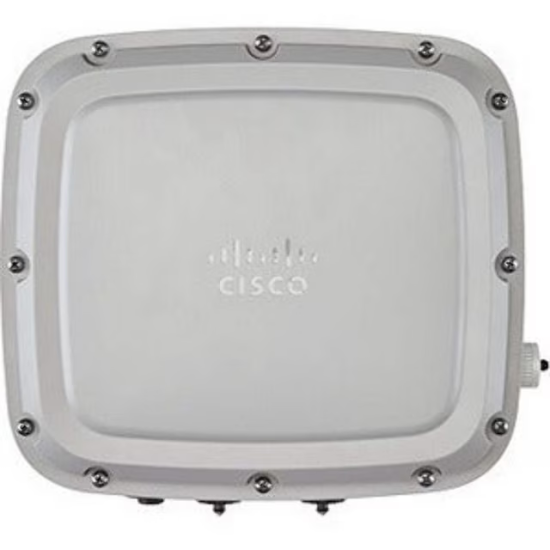

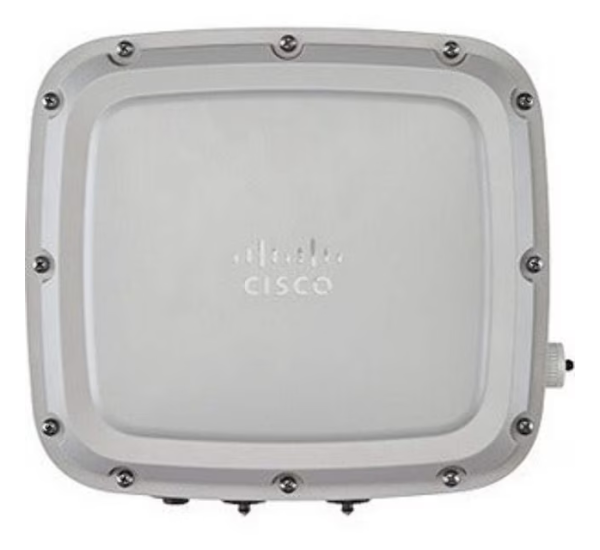

Cisco 9124AXE Outdoor Access Point
Datacom Technologies BD proudly offers the Cisco Catalyst 9124AXE Outdoor Access Point, delivering cutting-edge Wi-Fi 6E technology with tri-band support for unmatched wireless performance. Designed for rugged outdoor environments, this device ensures reliable, high-speed connectivity with robust security features. Trust Datacom Technologies BD for authentic, high-quality Cisco networking solutions tailored for enterprise and large-scale deployments.
Specification Table
| Specification |
Details |
| Model |
Cisco Catalyst 9124AXE |
| Type |
Outdoor Wireless Access Point |
| Wireless Standard |
Wi-Fi 6E (802.11ax) |
| Frequency Bands |
2.4 GHz, 5 GHz, and 6 GHz (Tri-band) |
| Maximum Data Rate |
Up to 5.38 Gbps (aggregate) |
| Antenna Type |
Integrated omnidirectional antennas |
| MIMO Configuration |
8x8 MIMO on 2.4 GHz and 5 GHz bands; 4x4 MIMO on 6 GHz band |
| Security Features |
WPA3, WPA2, Enhanced Open, 802.1X, MAC filtering |
| Power Source |
PoE (Power over Ethernet) or external power supply |
| Environmental Rating |
IP67 (Dust and water-resistant) |
| Operating Temperature Range |
-40°C to 65°C |
| Mounting |
Pole or wall mount options |
| Ports |
1x 2.5GbE Ethernet port |
| Management |
Cisco DNA Center, CLI, Web GUI |
| Use Case |
Outdoor high-density wireless coverage for enterprise, campuses, stadiums, etc. |
Description
The Cisco 9124AXE Outdoor Access Point is a high-performance wireless device designed to deliver robust Wi-Fi 6E connectivity in demanding outdoor environments. Supporting tri-band operation across the 2.4 GHz, 5 GHz, and newly opened 6 GHz spectrum, this access point offers exceptional data rates and increased capacity for dense client environments. Its advanced 8x8 MIMO technology on lower bands and 4x4 on 6 GHz enhances throughput and reliability, enabling seamless connectivity for a wide range of devices.
Engineered for tough conditions, the 9124AXE boasts an IP67-rated rugged enclosure, making it resistant to dust, rain, and extreme temperatures, ideal for outdoor deployments such as stadiums, campuses, and industrial sites. It supports modern security protocols including WPA3, ensuring secure wireless access. Powering flexibility is provided via Power over Ethernet or an external power source, facilitating versatile installation options.
Management and configuration are streamlined through Cisco DNA Center and traditional interfaces, empowering network administrators with detailed control and monitoring capabilities. Overall, the
Cisco 9124AXE combines cutting-edge Wi-Fi 6E technology with durable outdoor design to deliver fast, reliable, and secure wireless connectivity in challenging environments.
Key Features:
- Wi-Fi 6E (802.11ax) Technology: Supports tri-band operation including 6 GHz, 5 GHz, and 2.4 GHz bands for high-capacity, low-latency wireless connectivity.
- High Performance: Delivers combined data rates up to 5.38 Gbps, ideal for dense outdoor environments.
- Rugged Outdoor Design: Built to withstand harsh weather conditions with IP67 rating for dust and water resistance.
- Advanced Security: Supports WPA3, Enhanced Open, and Cisco’s secure network protocols.
- Flexible Deployment: Supports Power over Ethernet (PoE), simplifying installation and reducing cabling.
- AI-Powered Radio Resource Management: Optimizes performance by dynamically adjusting channel and power settings.
- Multi-Gigabit Ethernet Ports: Provides high-speed backhaul and uplink options.
- Mesh Networking Support: Enables seamless wireless mesh deployments for extended coverage.
Where it Can Be Used?
- Outdoor venues such as stadiums, parks, and campuses.
- Industrial sites requiring robust and reliable outdoor Wi-Fi coverage.
- Public spaces like transportation hubs, airports, and city centers.
- Large commercial properties with outdoor Wi-Fi needs.
- Smart city and IoT deployments requiring wide-area coverage.
Installation Steps:
- Site Survey: Conduct a site survey to determine optimal mounting locations and ensure good signal coverage.
- Mounting: Securely mount the access point on poles, walls, or ceilings using provided mounting kits.
- Power Connection: Connect the device to a PoE switch or injector to power it.
- Network Connection: Connect the Ethernet cable to the access point and to the network switch.
- Initial Configuration: Use Cisco’s management tools such as Cisco DNA Center or web GUI to configure SSIDs, security settings, and radio parameters.
- Testing: Verify connectivity and throughput with test devices to ensure optimal performance.
- Final Adjustment: Adjust antenna orientation and settings as needed based on performance results.
Why Buy Cisco 9124AXE Outdoor Access Point from Datacom Technologies BD?
- ✅ 100% Original and Brand New Product: Datacom Technologies BD supplies completely original and brand-new Cisco 9124AXE Outdoor Access Points, sourced from trusted authorized suppliers.
- ✅ Advanced Performance and Reliability: The Cisco 9124AXE Outdoor Access Point features high-speed Wi-Fi 6 technology, ensuring excellent connectivity and coverage even in outdoor environments.
- ✅ Competitive Pricing: We offer the Cisco 9124AXE Outdoor Access Point at the most affordable and reasonable prices in the market, fitting perfectly within your budget.
- ✅ Fast Delivery and Service: Ordering from Datacom Technologies BD guarantees quick delivery and professional customer support.
- ✅ Local Shipping and Warranty: We provide direct shipping within Bangladesh along with official warranty and support services.
Datacom Technologies BD – Your Trusted IT Partner.
Buy Cisco 9124AXE Outdoor Access Point at the Best Price from Datacom BD Online
In Bangladesh, you can get Cisco 9124AXE Outdoor Access Point From
Datacom. We have a large collection of latest
Cisco Access Point to purchase. Order Online Or Visit our Office to get yours at lowest price. The Cisco 9124AXE Outdoor AP comes with 1 Year warranty.
- ? Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of Cisco 9124AXE Outdoor Access Point in Bangladesh?
The estimated price of Cisco 9124AXE Outdoor Access Point in Bangladesh is 122,500৳. You can buy the Cisco 9124AXE Outdoor AP at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
