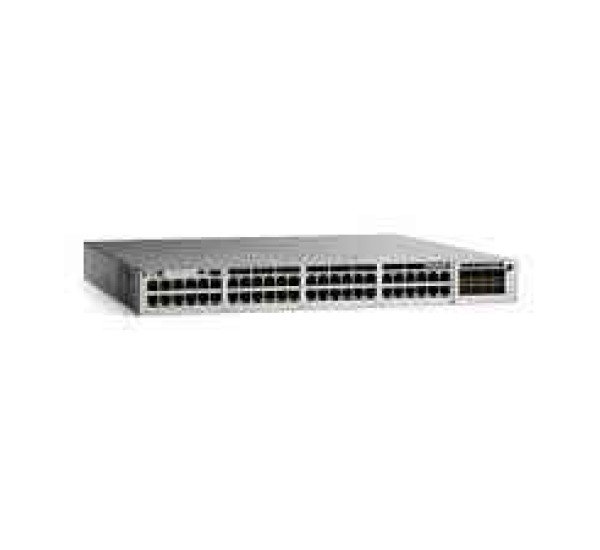

Cisco C9300‑48T‑A – 48‑Port Stackable Managed Switch | Enterprise Network Switch
The Cisco C9300‑48T‑A is a powerful, enterprise‑grade stackable Ethernet switch from the renowned Cisco Catalyst 9300 Series, designed for modern campus, data center access, and enterprise‑class network environments. With 48 1G Ethernet ports, advanced security features, high availability, and flexible stacking capabilities, this switch delivers exceptional performance, scalability, and reliability for mission‑critical networks.
Ideal for high‑density deployments, the C9300‑48T‑A supports Cisco StackWise‑480 stacking technology, robust network segmentation, advanced Quality of Service (QoS), and industry‑leading network security features — making it a top choice for organizations seeking high‑performance connectivity, efficient traffic management, and secure network operations.
SPECIFICATIONS
| Feature | Details |
|---|
| Product Name | Cisco Catalyst C9300‑48T‑A |
| Brand | Cisco Systems |
| Switch Type | Stackable Managed Ethernet Switch |
| Model Series | Cisco Catalyst 9300 |
| Ports | 48 × 1G RJ‑45 Ethernet |
| Stacking | Cisco StackWise‑480 (up to 480 Gbps stacking bandwidth) |
| Uplink Slots | 4 × 1G/10G SFP+ (module dependent) |
| Max Switching Capacity | Up to 176 Gbps |
| Forwarding Rate | Up to 77.37 Mpps |
| PoE Support | Optional (PoE/PoE+ models available) |
| Licensing | Network Advantage or Network Essentials (model dependent) |
| Security Features | 802.1X, MACsec, ACLs, Dynamic ARP Inspection |
| QoS | Advanced QoS with traffic shaping and prioritization |
| Management | Cisco DNA Center, CLI, SNMP, Web GUI |
| Redundancy | StackWise Virtual, redundant power supply options |
| Operating Temp. | 32°F to 113°F (0°C to 45°C) |
| Use Case | Campus access, enterprise edge, aggregation |
Exact specifications vary by sub‑model, software license, and hardware configuration.
Cisco C9300‑48T‑A Description
The Cisco Catalyst C9300‑48T‑A is part of Cisco’s flagship Catalyst 9000 Series, engineered for secure, high‑performance enterprise networking. With 48 Gigabit Ethernet ports, this switch is ideal for high‑density access layer deployments in offices, campuses, and data centers where reliability, manageability, and scalability are essential.
Powered by Cisco IOS XE software, the C9300‑48T‑A enables advanced networking capabilities such as segment routing, flexible NetFlow, multicast routing, and Layer 3 services. Its StackWise‑480 technology allows up to nine switches to be interconnected into a single logical unit, simplifying management, enhancing redundancy, and scaling network performance without complexity.
Security is built into every level of the switch, with features like MACsec encryption, 802.1X authentication, and policy‑based access control (ACLs). Combined with Cisco DNA Center integration, the C9300‑48T‑A supports software‑defined access (SD‑Access) and advanced automation for accelerated deployments and consistent policy enforcement.
Advanced Quality of Service (QoS) ensures traffic prioritization for voice, video, and mission‑critical applications — helping maintain service levels even under high load. Support for exported telemetry and analytics allows network teams to gain deeper visibility and faster troubleshooting.
Key Features
48 × 1G Ethernet ports for high‑density access
Cisco StackWise‑480 stacking for simplified scaling and redundancy
Cisco IOS XE with advanced Layer 2/3 features
High security with MACsec, 802.1X, and ACL enforcement
Advanced QoS and traffic prioritization
Support for Cisco DNA Center and SD‑Access
Flexible uplinks with 1G/10G SFP+ capability
Optimized for campus access, edge, and aggregation layers
Where It Can Be Used
Enterprise campus networks and office environments
Data center access or consolidation layers
High‑density wiring closets and floors
Voice, video, and wireless infrastructure backbones
Secure onboarding (802.1X) and segmented networks
Scalable stacked switch deployments
