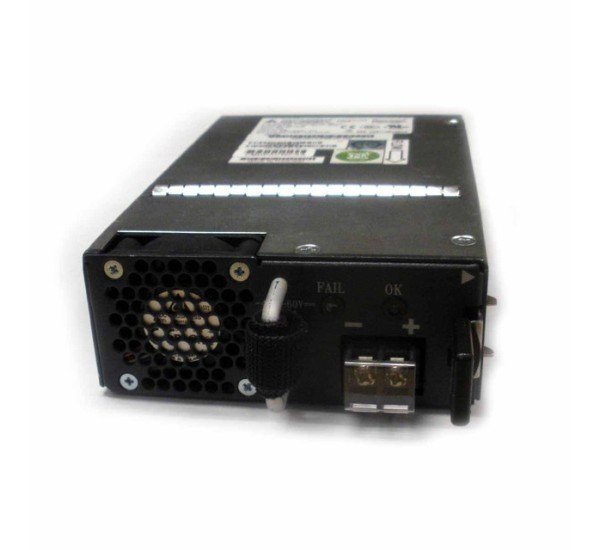

Cisco ASR1001-X-PWR-DC 242W DC Power Supply for ASR 1001-X Router
The Cisco ASR1001-X-PWR-DC is a DC power supply module designed specifically for the Cisco ASR 1001-X Aggregation Services Router. It provides 242W of output power with +12V DC output and accepts a DC input range of -40 to -72 VDC.
Designed for carrier, service-provider and enterprise networking environments that use DC power infrastructure, the ASR1001-X-PWR-DC can be installed in the modular ASR 1001-X chassis. The router supports two DC power supplies in a 1+1 redundant configuration, allowing the remaining power supply to provide the required chassis power if one module is removed or fails.
Cisco ASR1001-X-PWR-DC Power Supply Features
- Genuine Cisco ASR 1001-X DC power supply
- 242W output power rating
- +12V DC output
- -40 to -72 VDC input range
- Designed for Cisco ASR 1001-X routers
- Supports dual power supply 1+1 redundancy
- Dual hot-pluggable power supply configuration
- Current sharing on the 12V output
- Integrated OK and FAIL status LEDs
- Field-replaceable modular power supply design
Cisco ASR1001-X-PWR-DC Technical Specifications
| Specification |
Details |
| Brand |
Cisco |
| Model |
ASR1001-X-PWR-DC |
| Product Type |
DC Power Supply |
| Compatible Router |
Cisco ASR 1001-X |
| Output Power |
242W |
| DC Output Voltage |
+12V |
| Input Type |
DC |
| Input Voltage Range |
-40 to -72 VDC |
| Power Configuration |
1+1 Redundant |
| Installation |
Hot-pluggable |
| Power Sharing |
Current sharing on 12V output |
| Status Indicators |
OK and FAIL LEDs |
| Power Supply Slots |
PS0 and PS1 |
| Connector |
Two-wire DC input connector |
Cisco ASR1001-X-PWR-DC Compatibility
The ASR1001-X-PWR-DC is designed for the Cisco ASR 1001-X router. The ASR 1001-X chassis can support two AC or two DC power supplies for redundant operation. Cisco specifies that AC and DC power supplies should not be mixed in the same chassis.
Before installation, verify the existing chassis power configuration and confirm that the replacement module matches the required DC power configuration.
Cisco ASR1001-X DC Power Redundancy
The Cisco ASR 1001-X supports two power supplies in a 1+1 redundant configuration. When one external power supply fails or is removed, the remaining power supply can provide the power requirements of the chassis. The power supply design also supports hot-plug replacement without interrupting router operation when the redundant configuration is properly implemented.
Applications
- Cisco ASR 1001-X router power replacement
- DC-powered enterprise networking infrastructure
- Service provider and carrier networking environments
- Network equipment deployed with -48V DC power systems
- Redundant router power configurations
- Replacement of failed ASR 1001-X DC power modules
Cisco ASR1001-X-PWR-DC Price in Bangladesh
For the latest Cisco ASR1001-X-PWR-DC DC Power Supply price in Bangladesh, contact Datacom Technologies (BD). Pricing and availability may vary depending on sourcing, product condition and warranty.
Why Choose Cisco ASR1001-X-PWR-DC?
- Designed specifically for Cisco ASR 1001-X routers
- 242W DC power output
- Supports -40 to -72 VDC input systems
- Suitable for redundant dual-PSU configurations
- Hot-pluggable modular design for supported redundant installations
- Useful as a replacement or spare DC power module
Buy Cisco ASR1001-X-PWR-DC in Bangladesh
To purchase the Cisco ASR1001-X-PWR-DC 242W DC Power Supply in Bangladesh, contact Datacom Technologies (BD) for current pricing, compatibility confirmation and sourcing information.
